Grille Kit Fiat Ducato

Description

For a clean and high-quality retrofit of auxiliary lights, Lazer Lamps offers the vehicle-specific grille integration kit for the Fiat Ducato. Thanks to specially developed mounting brackets, the powerful LED lights can be quickly and precisely installed in the vehicle's original grille. The integration is so inconspicuous that the original design of the Grenadier is fully maintained – ideal for those who value an OEM-like appearance.

In addition to the lights, the kit includes the appropriate wiring harness and precision-engineered mounting brackets that are optimally adapted to the standard grille. In combination with the included self-tapping plastic screws, a stable and theft-proof mounting is guaranteed.

Made from a UV-stable and weatherproof composite material, the brackets guarantee long-lasting and reliable fastening – even under extreme operating conditions.

For easy and precise installation, the set includes a cutting template for an exact fit, which significantly simplifies installation.

Maximum light output, discreet appearance and durable longevity – perfectly matched to the Fiat Ducato.

Grille Kit Fiat Ducato

Product form

Free pickup in our shop(s)

SKU: LL-GK-FD-G2-1K

€720,00 Incl. VAT

    • Perfekte Integration ins Fahrzeugdesign
    • Einfache und saubere Montage
    • Maximale Lichtleistung an optimaler Position
    • Robuste und langlebige Konstruktion
    • Erhöhter Diebstahlschutz
    • 5 Jahre Garantie
      Produktmerkmale
    • Vehicle-specific mounts for seamless, OE-style grille integration
    • Bespoke design for Fiat Ducato (2014-2021)
    • Developed for use with Triple-R 750 LED lights – Standard, Wide, Beacon, and Elite variants

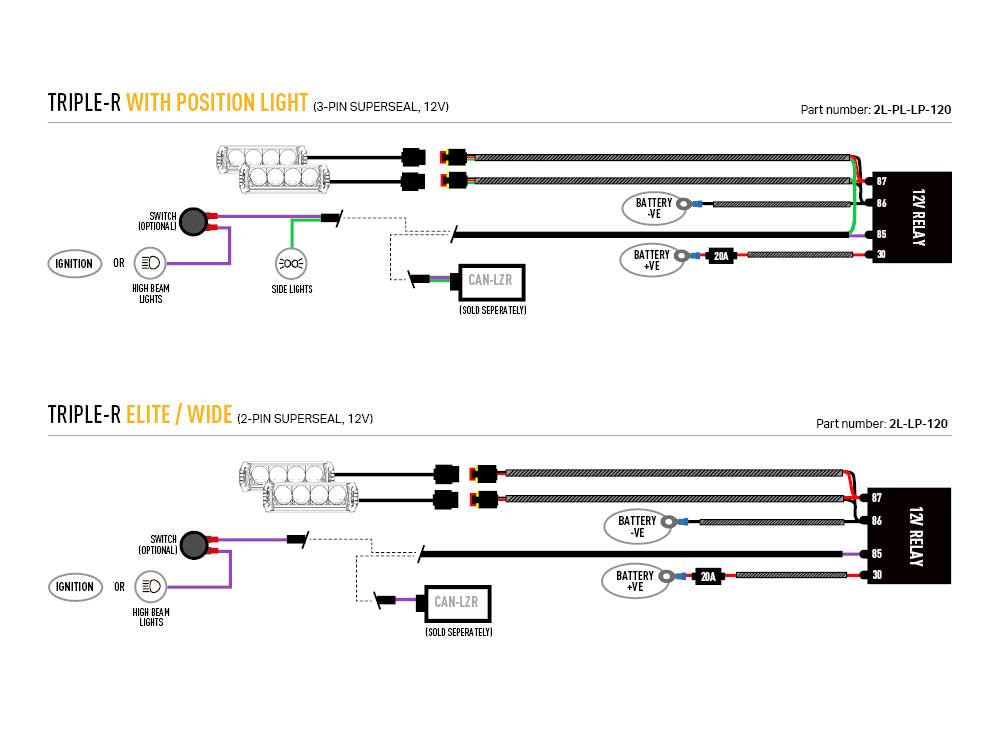

    • Includes precision-engineered brackets and a two-lamp wiring kit
    • Supplied with cutting guides and anti-theft fasteners for a secure, professional installation
    • Brackets made from high-strength, UV-stable composite material
    • Fully road-legal and ECE compliant
    • Covered by a comprehensive 5-year warranty
    • Designed and manufactured in the UK
      Lieferumfang
    • x2 LED headlights (Triple-R 750)
    • x1 Grille mounting kit
    • x1 Two-lamp wiring harness
    • Instructions
      Downloads
    PDF Fiat_Ducato_2014-2021_Grille_Kit_Instructions.pdf
    PDF Triple-R_750_-_Product_Information_Sheet.pdf
    PDF Triple-R_750_Elite_-_Product_Information_Sheet.pdf
    PDF Triple-R_750_Wide_-_Product_Infomation_Card_e53bb308-d88e-45ee-a5fd-a9fddccbe927.pdf
    PDF Fiat_Ducato_2022_-_Grille_Kit_Instructions_-_Triple-R_750.pdf

    Description

    For a clean and high-quality retrofit of auxiliary lights, Lazer Lamps offers the vehicle-specific grille integration kit for the Fiat Ducato. Thanks to specially developed mounting brackets, the powerful LED lights can be quickly and precisely installed in the vehicle's original grille. The integration is so inconspicuous that the original design of the Grenadier is fully maintained – ideal for those who value an OEM-like appearance.

    In addition to the lights, the kit includes the appropriate wiring harness and precision-engineered mounting brackets that are optimally adapted to the standard grille. In combination with the included self-tapping plastic screws, a stable and theft-proof mounting is guaranteed.

    Made from a UV-stable and weatherproof composite material, the brackets guarantee long-lasting and reliable fastening – even under extreme operating conditions.

    For easy and precise installation, the set includes a cutting template for an exact fit, which significantly simplifies installation.

    Maximum light output, discreet appearance and durable longevity – perfectly matched to the Fiat Ducato.

    Technische Daten
    2x Triple-R 750 2x Triple-R 750 Elite 2x Triple-R 750 Wide 2x Triple-R 750 Beacon 2x Triple-R 750 2x Triple-R 750 Elite 2x Triple-R 750 Wide 2x Triple-R 750 Beacon
    Spannungsbereich (DC) 10-32V 10-32V 10-32V 10-32V 10-32V 10-32V 10-32V 10-32V
    LED-Lebensdauer 50,000 hours 50,000 hours 50,000 hours 50,000 hours 50,000 hours 50,000 hours 50,000 hours 50,000 hours
    Gewicht 2.6 kg 2.6 kg 2.6 kg 2.6 kg 2.6 kg 2.6 kg 2.6 kg 2.6 kg
    Fernlicht-Funktion
    Gesamtlichtstrom 9240 lm 10136 lm 9240 lm 10800 lm 9240 lm 10136 lm 9240 lm 10800 lm
    Gesamtlichtstrom im Fahrer-Sichtfeld 5572 lm 6680 lm 5266 lm 2484 lm 5572 lm 6680 lm 5266 lm 2484 lm
    Farbtemperatur 5000K 5000K 5000K 5000K 5000K 5000K 5000K 5000K
    Leistungsaufnahme 88 W 104 W 88 W 104 W 88 W 104 W 88 W 5000K
    Stromaufnahme (14.4 V) 6.2 A 7.2 A 6.2 A 7.4 A 6.2 A 7.2 A 6.2 A 7.4 A
    Anschluss 3-Pin Superseal (+25cm Cable) 2-Pin Superseal (+25cm Cable) 2-Pin Superseal (+25cm Cable) 6-pin Superseal (+25 cm cable) 3-Pin Superseal (+25cm Cable) 2-Pin Superseal (+25cm Cable) 2-Pin Superseal (+25cm Cable) 6-pin Superseal (+25 cm cable)
    Zertifizierung
    IP-Bewertung # IP68 IP68 IP68 IP68 IP68 IP68 IP68 IP68
    Fernlicht ECE R112 ECE R112 ECE R149 ECE R149 ECE R112 ECE R112 ECE R149 ECE R149
    EMC-Zertifizierung ECE R10 ECE R10 ECE R10 ECE R10 ECE R10 ECE R10 ECE R10 ECE R10
    Salzsprühtest ISO 9227 ISO 9227 ISO 9227 ISO 9227 ISO 9227 ISO 9227 ISO 9227 ISO 9227
    Dump-Lastschutz ISO 7637-2 ISO 7637-2 ISO 7637-2 ISO 7637-2 ISO 7637-2 ISO 7637-2 ISO 7637-2 ISO 7637-2
    Positionslicht (weiß) ECE R7 N/A N/A ECE R7 ECE R7 N/A N/A ECE R7

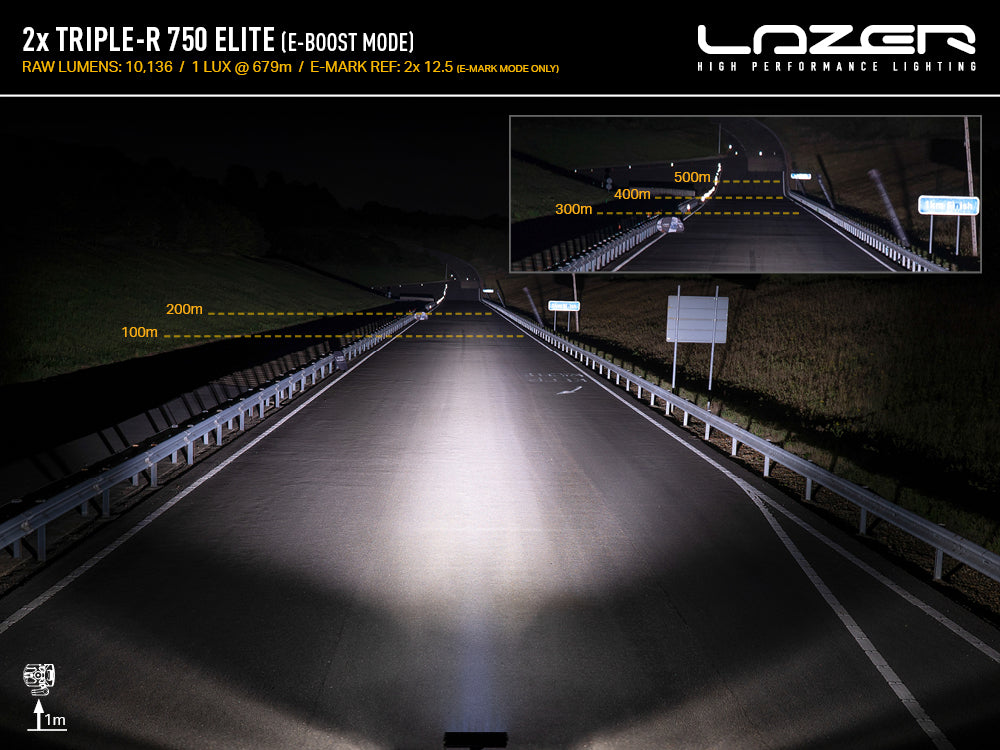

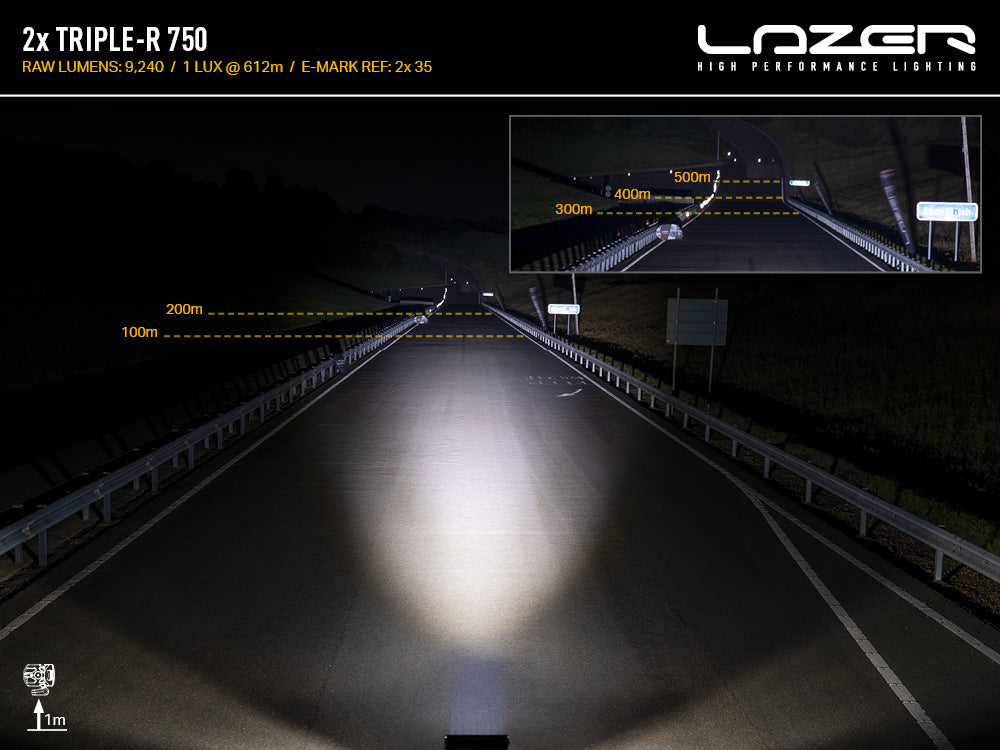

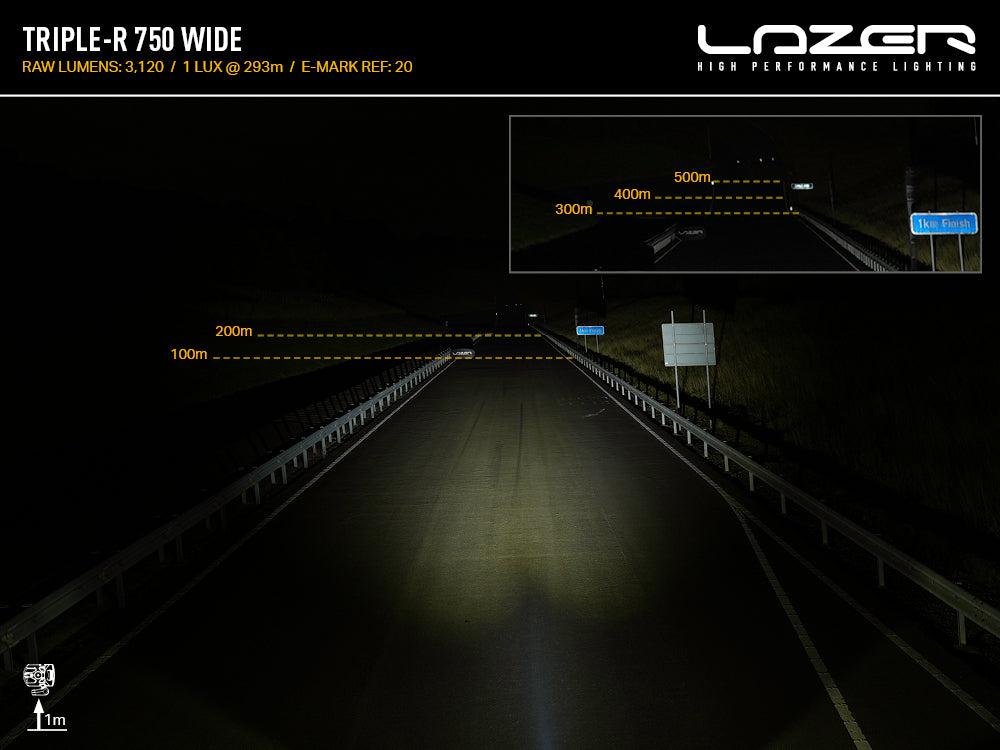

    Lichttechnische Daten
    Horizontaler Abstrahlwinkel 19° / 18° 42° / 13° 40° / 20° 28° / 16° 19° / 18° 42° / 13° 40° / 20° 28° / 16°
    0.25-Lux-Linie 1225 m 1358 m 829 m 1249 m 1225 m 1358 m 829 m 1249 m
    0.5-Lux-Linie 866 m 960 m 587 m 883 m 866 m 960 m 587 m 883 m
    1-Lux-Linie 612 m 679 m 415 m 624 m 612 m 679 m 415 m 624 m
    3-Lux-Linie 354 m 392 m 239 m 361 m 354 m 392 m 239 m 361 m
