Grille Kit Ford Transit Courier

Description

For a clean and high-quality retrofit of auxiliary lights, Lazer Lamps offers the vehicle-specific grille integration kit for the Transit Courier. Thanks to specially developed mounting brackets, the powerful LED spotlights can be quickly and precisely installed in the vehicle's original grille. The integration is so discreet that the original design of the Grenadier is fully preserved – ideal for anyone who values an OEM-like appearance.

In addition to the spotlights, the kit includes the matching wiring harness and precision-engineered mounting brackets, which are optimally adapted to the standard grille. In combination with the enclosed self-tapping plastic screws, a stable and theft-proof mounting is guaranteed.

Made from a UV-stable and weather-resistant composite material, the brackets guarantee long-lasting and reliable attachment – even under extreme operating conditions.

For easy and precise installation, the set includes a cutting template for an exact fit, which significantly simplifies installation.

Maximum light output, discreet appearance, and long-lasting durability – perfectly matched to the Transit Courier.

Grille Kit Ford Transit Courier

Product form

Free pickup in our shop(s)

SKU: LL-GK-FTCOUR-01K

€575,00 Incl. VAT

    • Perfekte Integration ins Fahrzeugdesign
    • Einfache und saubere Montage
    • Maximale Lichtleistung an optimaler Position
    • Robuste und langlebige Konstruktion
    • Erhöhter Diebstahlschutz
    • 5 Jahre Garantie
      Produktmerkmale
    • Dedicated vehicle mounts for seamless integration
    • Bespoke design for Ford Transit Courier (2014-2018)
    • Compatible with Linear-18 / Glide LED light bars
    • Kit also includes bespoke brackets and wiring kit
    • Cutting guides included
    • Brackets made from high-strength, UV-stable composite material
    • Fully road-legal
    • 5-year warranty
    • Made in UK
      Lieferumfang
    • 1x grille mounting kit (including cutting templates)
    • 1x LED light bar (Linear-18/Glide)
    • 1x wiring kit for one lamp
    • Installation instructions
      Downloads
    PDF FTCOUR_01_LNR18_-_Instructions.pdf

    Description

    For a clean and high-quality retrofit of auxiliary lights, Lazer Lamps offers the vehicle-specific grille integration kit for the Transit Courier. Thanks to specially developed mounting brackets, the powerful LED spotlights can be quickly and precisely installed in the vehicle's original grille. The integration is so discreet that the original design of the Grenadier is fully preserved – ideal for anyone who values an OEM-like appearance.

    In addition to the spotlights, the kit includes the matching wiring harness and precision-engineered mounting brackets, which are optimally adapted to the standard grille. In combination with the enclosed self-tapping plastic screws, a stable and theft-proof mounting is guaranteed.

    Made from a UV-stable and weather-resistant composite material, the brackets guarantee long-lasting and reliable attachment – even under extreme operating conditions.

    For easy and precise installation, the set includes a cutting template for an exact fit, which significantly simplifies installation.

    Maximum light output, discreet appearance, and long-lasting durability – perfectly matched to the Transit Courier.

    Technische Daten
    1x Linear-18 1x Linear-18 Elite 1x Glide-18 1x Glide-18 Elite
    Spannungsbereich (DC) 10-32 V 10-32 V 10-32 V 10-32 V
    LED-Lebensdauer 50,000 hours 50,000 hours 50,000 hours 50,000 hours
    Gewicht 2.4 lbs 2.4 lbs 0.68 kg 0.68 kg
    Fernlicht-Funktion
    Gesamtlichtstrom 6,750 lm 13,500 Lm 11,500 Lm 12,800 Lm
    Gesamtlichtstrom im Fahrer-Sichtfeld 4,806 Lm 9,612 lm 6,958 linear meters 8,012 lm
    Farbtemperatur 5000 K 5000 K 5000 K 5000 K
    Leistungsaufnahme 63 W 130 W 120 W 130 W
    Stromaufnahme (14.4 V) 4.4 A 9 A 8.3 A 9.2 A
    Anschluss 2-pin Superseal (+25cm cable) 2-pin Superseal (+25cm cable) 2-Pin/3-Pin Superseal (+25cm cable) 2-Pin/3-Pin Superseal (+25cm cable)
    Zertifizierung
    IP-Bewertung # IP68 IP68 IP68 IP68
    Fernlicht ECE R112 (Ref: 30) ECE R112 (Ref: 2x 25) ECE R149 (Ref: 12.5*) ECE R149 (Ref: 12.5*)
    EMC-Zertifizierung ECE R10 ECE R10 ECE R10 ECE R10
    Salzsprühtest ISO 9227 ISO 9227 ISO 9227 ISO 9227
    Dump-Lastschutz ISO 7637-2 ISO 7637-2 ISO 7637-2 ISO 7637-2

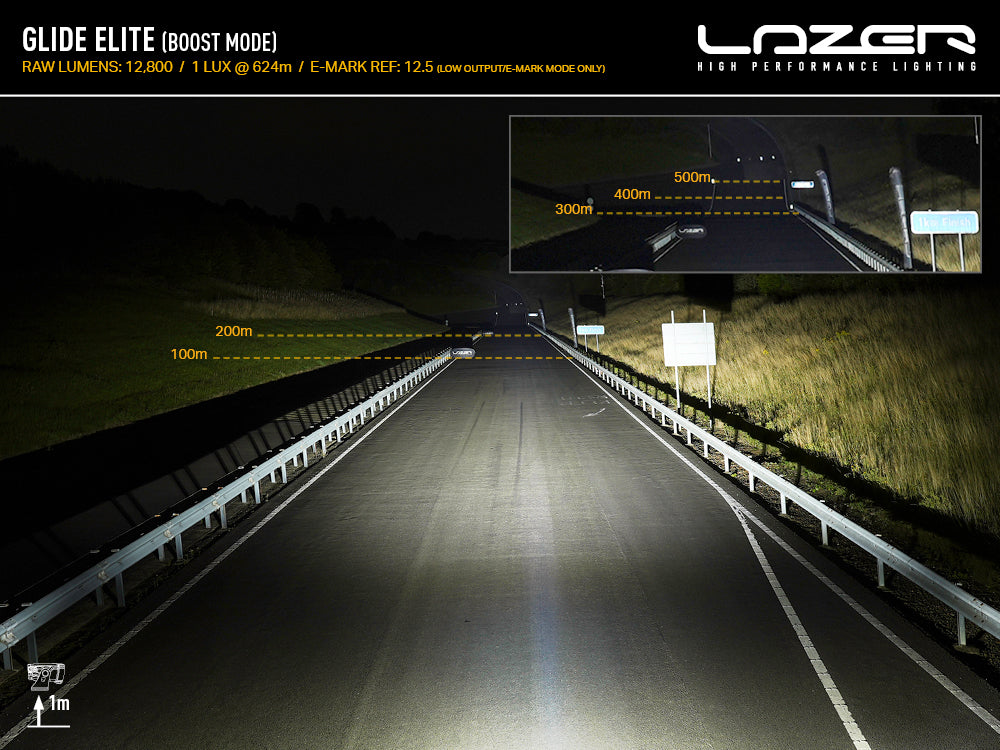

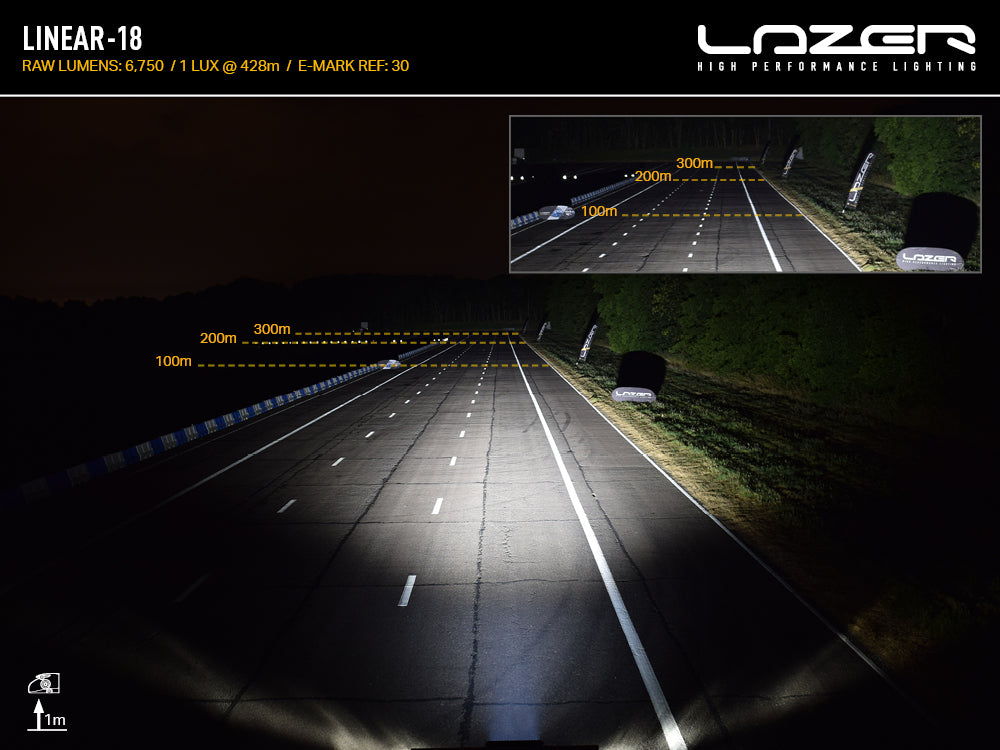

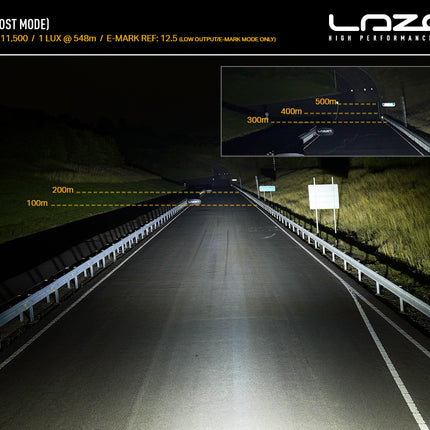

    Lichttechnische Daten

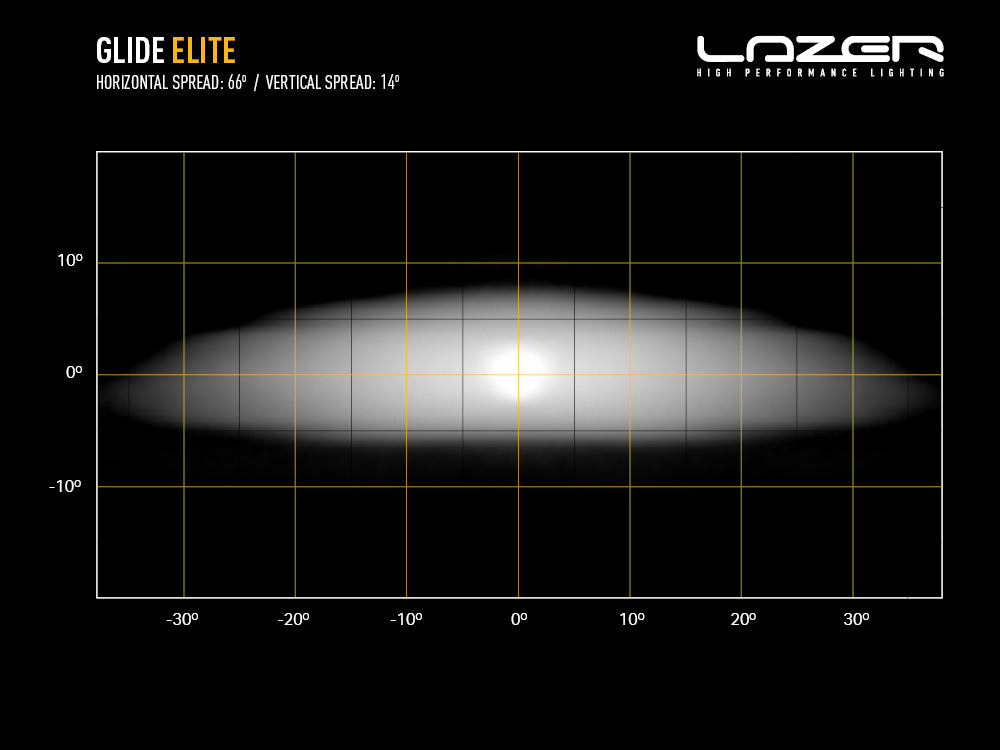

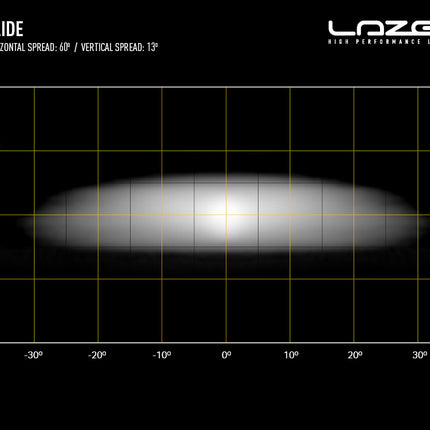

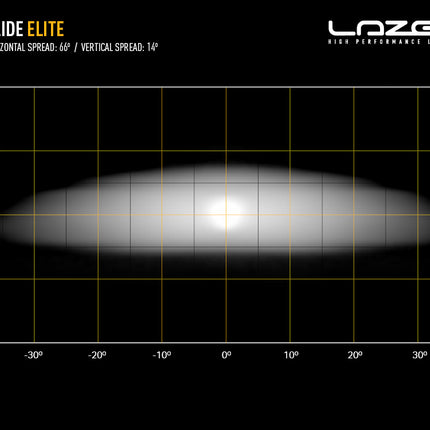

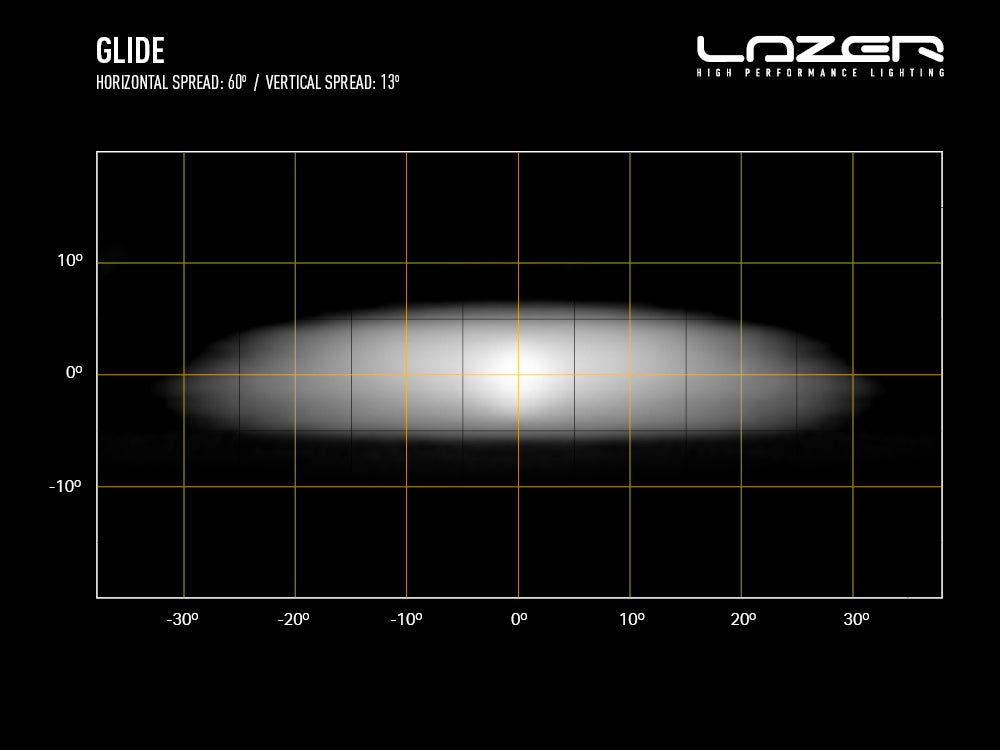

    Horizontaler Abstrahlwinkel 56° / 13° 64° / 15° 60° / 13° 66° / 14°

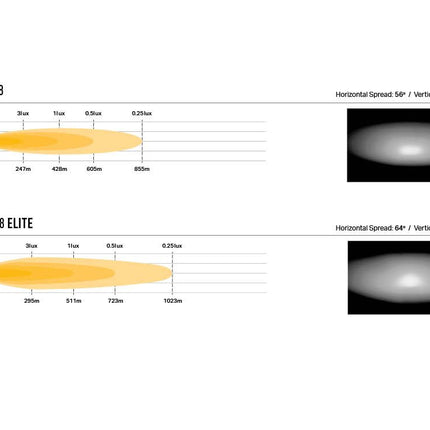

    0.25-Lux-Linie 855 m 1.023 m 1,095 m 1.249 m
    0.5-Lux-Linie 605 m 723 m 775 m 883 m
    1-Lux-Linie 428 m 511 m 548 m 624 m
    3-Lux-Linie 247 m 295 m 316 m 361 m
