Wiring Kits

Der Einzellampen-Kabelsatz von Lazer ist die ideale Lösung für die einfache und zuverlässige Installation eines Hochleistungs-LED-Scheinwerfers – ganz ohne Konfiguration. Ausgestattet mit einem 2-poligen Aptiv-Stecker und einem wasserdichten 12-V-Relais, sorgt das Set für eine schnelle, saubere Integration in dein Fahrzeugsystem. Das Kit enthält eine Batterieklemme, eine Sicherung, ein wasserdichtes Relaisgehäuse und 3 m Flexkabel zum Anschluss an die Leuchte. Damit kannst du deine Lazer-Lampe entweder parallel zur werkseitigen Fahrzeugbeleuchtung oder unabhängig über einen separaten Schalter im Innenraum betreiben. Alle Lazer-Lampen werden standardmäßig mit einer vorverdrahteten Buchse geliefert, die direkt an den Stecker des Kabelsatzes angeschlossen wird – für eine sichere und unkomplizierte Verbindung. Kompatibel mit: Linear-36 Elite Linear-42 Elite Linear-48 Elite Triple-R 24 Elite+ Hinweis: Bei den oben genannten Leuchten ist der Einzellampen-Kabelsatz bereits im Lieferumfang enthalten.

Read more less

Single-lamp wiring kit for Lazer Lamps high-performance LED headlights. Setup is quick, easy, and reliable thanks to the 2-pin Deutsch connector, requiring no configuration. The kit features a 12V relay (in a waterproof housing), a fuse, a battery clamp at one end, and 5m of flex cable on the headlight cable. It allows you to operate Lazer products either in parallel with the vehicle's Standard lighting and/or via an independent switch that can be mounted in your vehicle. All Lazer lamps are sold with a pre-wired socket that connects to the lamp harness connector to facilitate wiring to your vehicle's system. compatible with: Linear-24 Flood Utility-25 Utility-25 MAXX Utility-45 Utility-50 Utility-80 HD (heavy duty) RP Spot

Read more less

Single-lamp wiring kit for Lazer Lamps high-performance LED headlights. Setup is quick, easy, and reliable thanks to the 2-pin Econoseal connector, requiring no configuration. The kit features a 12V relay (in a waterproof housing), a fuse, a battery clamp at one end, and 3m of flex cable on the headlight cable. It allows Lazer products to be operated either in parallel with the vehicle's Standard lighting and/or via an independent switch that can be mounted in your vehicle. All Lazer lamps are sold with a pre-wired socket that connects to the lamp harness connector to facilitate wiring to your vehicle's system. compatible with: T16 Evolution T24 Evolution T28 Evolution Triple-R 16 Elite Triple-R 24 Elite Triple-R 28 Elite Triple-R 1250 Elite+ Note: All above lamps are supplied as new, including the individual lamp wiring kit.

Read more less

Single-lamp wiring kit for Lazer Lamps high-performance LED headlights. Setup is quick, easy, and reliable thanks to the 2-pin Superseal connector, requiring no configuration. The kit features a 12V relay (in a waterproof housing), a fuse, a battery clamp at one end, and 1.2m of flex cable on the headlight cable. It allows you to operate Lazer products either in parallel with the vehicle's Standard lighting and/or via an independent switch that can be mounted in your vehicle. All Lazer lamps are sold with a pre-wired socket that connects to the lamp harness connector to facilitate wiring to your vehicle's system. compatible with: Glide Glide Elite ST Evolution (All Products) Triple-R 750 Elite (Gen2) Triple-R 850 Elite (Gen2) Triple-R 1000 Elite (Gen2) Linear-6 (Standard / Elite) Linear-12 (Standard / Elite) Linear-18 (Standard / Elite) Linear-36 Linear-42 Linear-48 Sentinel 7'' Sentinel 9'' Elite

Read more less

Single-lamp wiring kit for Lazer Lamps high-performance LED headlights. Setup is quick, easy, and reliable thanks to the 2-pin Superseal connector, requiring no configuration. The kit features a 12V relay (in a waterproof housing), a fuse, a battery clamp at one end, and 3m of flex cable on the headlight cable. It allows you to operate Lazer products either in parallel with the vehicle's Standard lighting and/or via an independent switch that can be mounted in your vehicle. All Lazer lamps are sold with a pre-wired socket that connects to the lamp harness connector to facilitate wiring to your vehicle's system. compatible with: ST Evolution (All Products) Triple-R 750 Elite (Gen2) Triple-R 850 Elite (Gen2) Triple-R 1000 Elite (Gen2) Linear-6 (Standard / Elite) Linear-12 (Standard / Elite) Linear-18 (Standard / Elite) Linear-36 Linear-42 Linear-48 Sentinel 7'' Sentinel 9'' Elite

Read more less

Der Einzellampen-Kabelsatz von Lazer ist speziell für die Linear-18 Elite+ entwickelt und ermöglicht eine einfache, sichere und zuverlässige Installation deiner Hochleistungs-LED-Leuchte. Dank des 3-poligen Aptiv-Steckers ist die Verbindung schnell hergestellt – ganz ohne Konfiguration. Das Kit enthält ein 12-V-Relais im wasserdichten Gehäuse, eine Sicherung, eine Batterieklemme sowie 2 m Flexkabel zum Anschluss an die Leuchte. Damit kannst du den Scheinwerfer entweder parallel zur serienmäßigen Fahrzeugbeleuchtung betreiben oder unabhängig über einen Schalter im Innenraum steuern. Alle Lazer-Leuchten werden mit einer vorkonfektionierten Buchse geliefert, die direkt mit dem Stecker dieses Kabelsatzes verbunden wird – für eine unkomplizierte Integration in dein Fahrzeug. Kompatibel mit: Linear-18 Elite+ Hinweis: Die oben genannte Leuchte wird werksseitig bereits mit diesem Einzellampen-Kabelsatz ausgeliefert.

Read more less

The single-lamp cable kit is the ideal solution for quick, easy, and reliable connection of Lazer Lamps' high-performance LED spotlights. Thanks to the 3-pin Superseal connector, no configuration is required—simply plug and play. The wiring harness includes a 12V relay in a waterproof housing, a fuse, a connector for the vehicle battery, and a 1.2 m long connection cable for the lamp. The wiring can be configured either in parallel with the Standard vehicle lighting or independently via a separate switch mounted inside the vehicle. All Lazer headlights come with a pre-assembled female connector that connects directly to the male connector of the wiring harness for easy integration into the vehicle electrical system. Air-55 Air-90 Air-130 Elite Glide (with Position Light) Glide Elite (with Position Light) Triple-R 750 (Gen2) Triple-R 850 (Gen2) Triple-R 1000 (Gen2) Triple-R 1250 (Gen2) Linear-12 Elite (with Position Light) Linear-18 Elite (with Position Light) Sentinel 7'' Elite Sentinel 9'' Sentinel 9'' Chrome Sentinel 9'' Highline (with Position Light) Sentinel 9'' Elite (with Position Light)

Read more less

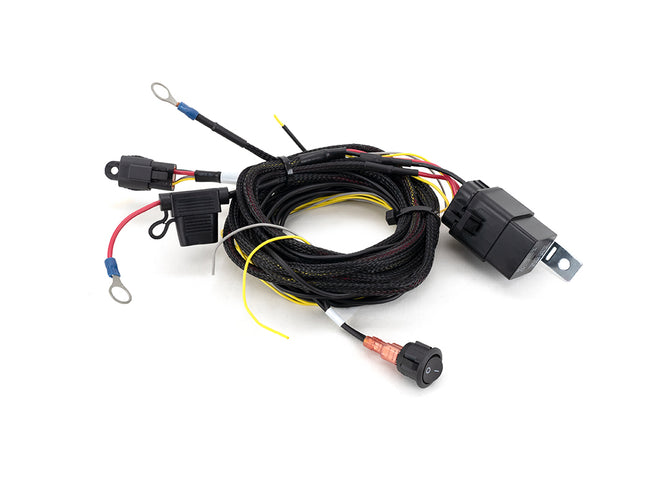

Single-lamp wiring kit for Lazer Lamps high-performance LED headlights. Setup is quick, easy, and reliable thanks to the 4-pin Deutsch connector, requiring no configuration. The kit features a 12V relay (in a waterproof housing), a fuse, a battery clamp at one end, and 2m of flex cable on the headlight cable. It allows you to operate Lazer products either in parallel with the vehicle's Standard lighting and/or via an independent switch that can be mounted in your vehicle. All Lazer lamps are sold with a pre-wired socket that connects to the lamp harness connector to facilitate wiring to your vehicle's system. compatible with: Carbon Series (All Products) RP Hyperspot Utility-50 with warning light Utility-50 with red taillight Utility-80 HD (with variable brightness) Please note that the corresponding Lazer single and dual lamp wiring kits for the Utility-80 HD with variable brightness require customers to provide their own switching method to adjust the brightness up/down.

Read more less

Single-lamp wiring kit for Lazer Lamps high-performance LED headlights. Setup is quick, easy, and reliable thanks to the 3-pin Superseal connector, requiring no configuration. Featuring a 12V relay (in a waterproof housing), a fuse, a battery clamp at one end, and 1.2m of flex cable on the headlight cable, the kit allows Lazer products to be operated either in parallel with the vehicle's Standard lighting and/or via an independent switch that can be mounted in your vehicle. Includes a push-button switch for easy operation of the light modes. All Lazer lamps are sold with a pre-wired socket that connects to the lamp harness connector to facilitate wiring to your vehicle's system. compatible with: Linear-6 Elite+

Read more less

Dieses 4-Lampen-Verkabelungsset ist die perfekte Lösung, wenn du vier Lazer Hochleistungs-LED-Leuchten anschließen möchtest – zum Beispiel an deinem Pick-up mit zwei Scheinwerfern an der Fahrzeugfront und zwei zusätzlichen am Dach oder Sportbügel. Das Plug-&-Play-System mit 2-poligem Superseal-Anschluss macht die Einrichtung einfach, zuverlässig und ganz ohne Konfiguration. Ein 12V-Relais, eine 35A-Sicherung, Batterieklemmen sowie zwei Kabelstränge (1,5 m und 6,5 m) sorgen für flexible Montagemöglichkeiten und ermöglichen den synchronisierten Betrieb mit den Fernscheinwerfern deines Fahrzeugs. Das System ist ausschließlich für Leuchten ohne Standlichtfunktion geeignet. Dank der mitgelieferten Stecker ist die Verbindung zu den vorverdrahteten Lazer-Lampen schnell und sauber erledigt. Kompatibel mit:ST Evolution (alle Modelle), Triple-R 750 / 850 / 1000 Elite, Linear-6 / 12 (Standard und Elite), Linear-18 (Standard).Nicht geeignet für: Triple-R 1250 oder Linear-18 Elite. Hinweis: Die Verwendung ist nur empfohlen für Setups mit zwei Triple-R 1000 (oder ST8 / Linear-12 Elite) und zwei Triple-R 750 (oder ST4 / Linear-6 Elite).

Read more less

Der 2-polige Y-Splitter mit Superseal-Anschlüssen ist die ideale Lösung, um mehrere Lazer-Leuchten mit geringer Leistungsaufnahme effizient zu verkabeln – ganz ohne zusätzliche, parallel verlaufende Kabelsätze. Perfekt geeignet für Setups mit drei oder mehr Leuchten, bei denen jede Lampe 75 W oder weniger verbraucht und kein spezieller 4-Lampen-Kabelsatz vorhanden ist. Dank der IP68-zertifizierten Superseal-Anschlüsse lässt sich der Y-Splitter sicher und wetterfest integrieren. Alle Lazer-Leuchten verfügen ab Werk über eine vorverdrahtete Buchse, die direkt an den Stecker des Lampenkabelbaums oder diesen Splitter angeschlossen wird – für eine einfache und saubere Installation. Kompatibel mit: ST2 ST4 ST6 Triple-R 750 Wide / Elite Triple-R 850 Elite Linear-6 Standard / Elite Linear-12 Standard / Elite Sentinel 7'' Standard (Non-PL) Wichtig: Die maximale Gesamtstromaufnahme darf 14 A nicht überschreiten.

Read more less

Two-lamp wiring kit for Lazer Lamps high-performance LED headlights. Setup is quick, easy, and reliable thanks to the 2-pin Deutsch DT connector, requiring no configuration. The kit features a 12V relay (in a waterproof housing), a fuse, a battery clamp at one end, and 2m of flex cable on the headlight cable. It allows you to operate Lazer products either in parallel with the vehicle's Standard lighting and/or via an independent switch that can be mounted in your vehicle. All Lazer lamps are sold with a pre-wired socket that connects to the lamp harness connector to facilitate wiring to your vehicle's system. compatible with: Linear-24 Flood Utility-25 Utility-25 MAXX Utility-45 Utility-50 Utility-80 HD (heavy duty) RP Spot

Read more less

Two-lamp wiring kit for Lazer Lamps high-performance LED headlights. Setup is quick, easy, and reliable thanks to the 2-pin Superseal connector, requiring no configuration. The kit features a 12V relay (in a waterproof housing), a fuse, a battery clamp at one end, and 1.2m of flex cable on the headlight cable. It allows you to operate Lazer products either in parallel with the vehicle's Standard lighting and/or via an independent switch that can be mounted in your vehicle. All Lazer lamps are sold with a pre-wired socket that connects to the lamp harness connector to facilitate wiring to your vehicle's system. compatible with: ST Evolution (All Products) Triple-R 750 Elite Triple-R 850 Elite Triple-R 1000 Elite Linear-6 (Standard / Elite) Linear-12 (Standard / Elite) Linear-18 (Standard) Sentinel 7'' Not suitable for: 2x Linear-18 Elite or 2x Sentinel 9'' Elite. To power two of these lights, please use the two-lamp "Medium Power" wiring kit (2L-MP-120).

Read more less

Two-lamp wiring kit for Lazer Lamps high-performance LED headlights. Setup is quick, easy, and reliable thanks to the 2-pin Superseal connector, requiring no configuration. The kit features a 12V relay (in a waterproof housing), a fuse, a battery clamp at one end, and 3.2 m of flex cable on the headlight cable. It allows you to operate Lazer products either in parallel with the vehicle's Standard lighting and/or via an independent switch that can be mounted in your vehicle. All Lazer lamps are sold with a pre-wired socket that connects to the lamp harness connector to facilitate wiring to your vehicle's system. compatible with: ST Evolution (All Products) Triple-R 750 Elite Triple-R 850 Elite Triple-R 1000 Elite Linear-6 (Standard / Elite) Linear-12 (Standard / Elite) Linear-18 (Standard) Sentinel 7'' Not suitable for: 2x Linear-18 Elite or 2x Sentinel 9'' Elite. To power two of these lights, please use the two-lamp "Medium Power" wiring kit (2L-MP-120).

Read more less

Two-lamp wiring kit for Lazer Lamps high-performance LED headlights. Setup is quick, easy, and reliable thanks to the 2-pin Superseal connector, requiring no configuration. The kit features a 12V relay (in a waterproof housing), a fuse, a battery clamp at one end, and 1.2m of flex cable on the headlight cable. It allows you to operate Lazer products either in parallel with the vehicle's Standard lighting and/or via an independent switch that can be mounted in your vehicle. All Lazer lamps are sold with a pre-wired socket that connects to the lamp harness connector to facilitate wiring to your vehicle's system. compatible with: Sentinel 9'' Elite Linear-18 Elite

Read more less

The two-lamp wiring kit allows for quick, easy, and reliable installation of two Lazer Lamps high-performance LED headlights. The 3-pin Superseal connector requires no additional configuration—simply plug and play. The wiring harness includes a 12V relay in a waterproof housing, a fuse, a battery connector, and 1.2 m of connecting cable per lamp. The lights can be operated either in parallel with the existing vehicle lighting or independently via a separate switch that can be mounted inside the vehicle. All Lazer headlights come with a pre-assembled female connector that fits directly into the male connector of the wiring harness for easy integration into the vehicle electrical system. Air-55 Air-90 Triple-R 750 Triple-R 850 Triple-R 1000 Linear-12 Elite (with Position Light) Sentinel 7'' Elite Sentinel 9'' Sentinel 9'' Chrome

Read more less

Two-lamp wiring kit for Lazer Lamps high-performance LED headlights. Setup is quick, easy, and reliable thanks to the 3-pin Superseal connector, requiring no configuration. The kit features a 12V relay (in a waterproof housing), a fuse, a battery clamp at one end, and 1.2m of flex cable on the headlight cable. It allows you to operate Lazer products either in parallel with the vehicle's Standard lighting and/or via an independent switch that can be mounted in your vehicle. All Lazer lamps are sold with a pre-wired socket that connects to the lamp harness connector to facilitate wiring to your vehicle's system. compatible with: Air-130 Elite Sentinel 9'' Elite (with parking light) Sentinel 9'' Highline (with parking light) Linear-18 Elite (with parking light) Triple-R 1250

Read more less

Two-lamp wiring kit for Lazer Lamps high-performance LED headlights. Setup is quick, easy, and reliable thanks to the 4-pin Deutsch DT connector, requiring no configuration. The kit features a 12V relay (in a waterproof housing), a fuse, a battery clamp at one end, and 2m of flex cable on the headlight cable. It allows you to operate Lazer products either in parallel with the vehicle's Standard lighting and/or via an independent switch that can be mounted in your vehicle. All Lazer lamps are sold with a pre-wired socket that connects to the lamp harness connector to facilitate wiring to your vehicle's system. compatible with: Carbon Series (All Products) RP Hyperspot Utility-50 with warning light Utility-50 with red taillight Utility-80 HD (with variable brightness) Please note that the corresponding Lazer single and dual lamp wiring kits for the Utility-80 HD Variable require customers to provide their own switching method to adjust the brightness up/down.

Read more less

The ideal solution for wiring a pair of Lazer high-performance LED headlights, which also feature integrated side/parking light and Beacon functions. Setup is quick, easy, and reliable with 6-pin Superseal connectors and no configuration procedures required. The kit includes a 12V relay (in a waterproof housing), a 30A fuse, a battery terminal connection at one end, and 1.2m of flexible cable on the lamp wires. It allows Lazer products to be operated in parallel with the vehicle's Standard lighting. All Lazer lamps are sold with a pre-wired socket that connects to the lamp harness connector to facilitate wiring to your vehicle's system. compatible with: Triple-R 750 Beacon Triple-R 1000 Beacon Air-55 Beacon Air-90 Beacon

Read more less

Two-lamp wiring kit for Lazer Lamps high-performance LED headlights. Setup is quick, easy, and reliable thanks to the 3-pin Superseal connector, requiring no configuration. The kit features a 12V relay (in a waterproof housing), a fuse, a battery clamp at one end, and 1.2m of flex cable on the headlight cable. It allows Lazer products to be operated either in parallel with the vehicle's Standard lighting and/or via an independent switch that can be mounted in your vehicle. It includes a push button for easy operation of the light modes. All Lazer lamps are sold with a pre-wired socket that connects to the lamp harness connector to facilitate wiring to your vehicle's system. compatible with: Linear-6 Elite+

Read more less

The 3m cable extension kit is ideal for custom designs and installations that require additional wiring to the luminaires. It includes IP68 connectors on both ends. All Lazer lamps are sold with a pre-assembled female connector that connects to the male connector of the lamp wiring harness to facilitate wiring into your vehicle's system. compatible with: T-16 Evolution T-24 Evolution T-28 Evolution Triple-R 16 Elite Triple-R 24 Elite Triple-R 28 Elite

Read more less

Das 3-Meter-Kabelverlängerungsset von Lazer Lamps ist die ideale Lösung, wenn du bei der Montage deiner LED-Zusatzbeleuchtung mehr Spielraum brauchst. Ob individuelle Fahrzeugumbauten, Dachmontage oder komplexe Installationen – mit dieser robusten Verlängerung erreichst du auch weiter entfernte Montagepunkte problemlos. Die IP68-zertifizierten Steckverbinder an beiden Enden garantieren dabei eine absolut dichte, wetterfeste Verbindung – perfekt für den Offroad- und Outdoor-Einsatz. Alle Lazer-Leuchten sind serienmäßig mit einem vormontierten, weiblichen Stecker ausgestattet, der sich direkt mit dem männlichen Stecker dieses Verlängerungskabels verbinden lässt. So gelingt die Integration in dein Bordnetz schnell und zuverlässig. Kompatibel mit folgenden Modellen:– Triple-R 750 / 850 / 1000 / 1250– Linear-12 Elite (mit Standlicht)– Linear-18 Elite (mit Standlicht)– Sentinel 7'' Elite– Sentinel 9'' / 9'' Chrome– Sentinel 9'' Elite (mit Standlicht)

Read more less

Das 3-Meter-Kabelverlängerungsset von Lazer Lamps eignet sich perfekt für maßgeschneiderte Installationen und Montagesituationen, bei denen die Leuchte weiter entfernt vom Stromanschluss positioniert werden muss. Dank der hochwertigen IP68-Steckverbinder an beiden Enden bietet das Set eine zuverlässige, wasserdichte Verbindung – ideal für anspruchsvolle Umgebungen und professionelle Anwendungen. Die Verlängerung ist direkt mit den vormontierten Steckern der Lazer-Lampen kompatibel, wodurch eine schnelle und sichere Verbindung mit dem Fahrzeugkabelbaum gewährleistet ist – ganz ohne Löten oder spezielle Anpassungen. Kompatibel mit:– Carbon Serie (alle Modelle)– RP Hyperspot– Utility-50 mit Warnleuchte– Utility-50 mit rotem Rücklicht– Utility-80 HD (mit variabler Helligkeit)

Read more less
