Radiator Grille Kit Ford Transit Connect

Description

For a clean and high-quality retrofit of auxiliary lights, Lazer Lamps offers the vehicle-specific grille integration kit for the Ford Transit Connect. Thanks to specially developed mounting brackets, the powerful LED lights can be quickly and precisely installed in the vehicle's original grille. The integration is so discreet that the Grenadier's original design is fully preserved – ideal for those who value an OEM-like appearance.

In addition to the lights, the kit includes the appropriate wiring harness and precision-engineered mounting brackets that are optimally adapted to the standard grille. In combination with the included self-tapping plastic screws, a stable and theft-proof mounting is ensured.

Made from a UV-stable and weather-resistant composite material, the brackets guarantee long-lasting and reliable fastening – even under extreme operating conditions.

For easy and precise installation, the kit includes a cutting template for an exact fit, which greatly simplifies installation.

Maximum light output, discreet appearance, and long-lasting durability – perfectly matched to the Ford Transit Connect.

Radiator Grille Kit Ford Transit Connect

Product form

Free pickup in our shop(s)

SKU: LL-GK-FTCON-01K

€575,00 Incl. VAT

    • Perfekte Integration ins Fahrzeugdesign
    • Einfache und saubere Montage
    • Maximale Lichtleistung an optimaler Position
    • Robuste und langlebige Konstruktion
    • Erhöhter Diebstahlschutz
    • 5 Jahre Garantie
      Produktmerkmale
    • Dedicated vehicle mounts for seamless integration
    • Bespoke design for Ford Transit Connect (2018-2021)
    • Compatible with Linear-18 / Glide LED light bars
    • Kit also includes bespoke brackets and wiring kit
    • Cutting guides included
    • Mounting brackets made from high strength, UV-stable composite material
    • Fully road-legal
    • 5 year warranty
    • Made in UK
      Lieferumfang
    • 1x grille mounting kit (including cutting templates)
    • 1x LED light bar (Linear-18/Glide)
    • 1x wiring kit for one lamp
    • Installation instructions
      Downloads
    PDF FTCON_01_LNR18_-_Instructions.pdf

    Description

    For a clean and high-quality retrofit of auxiliary lights, Lazer Lamps offers the vehicle-specific grille integration kit for the Ford Transit Connect. Thanks to specially developed mounting brackets, the powerful LED lights can be quickly and precisely installed in the vehicle's original grille. The integration is so discreet that the Grenadier's original design is fully preserved – ideal for those who value an OEM-like appearance.

    In addition to the lights, the kit includes the appropriate wiring harness and precision-engineered mounting brackets that are optimally adapted to the standard grille. In combination with the included self-tapping plastic screws, a stable and theft-proof mounting is ensured.

    Made from a UV-stable and weather-resistant composite material, the brackets guarantee long-lasting and reliable fastening – even under extreme operating conditions.

    For easy and precise installation, the kit includes a cutting template for an exact fit, which greatly simplifies installation.

    Maximum light output, discreet appearance, and long-lasting durability – perfectly matched to the Ford Transit Connect.

    Technische Daten
    1x Linear-18 1x Linear-18 Elite 1x Glide Standard 1x Glide Elite 2023+ / 1x Linear-18 / Standard - Front Grille Kit Ford Transit Connect 2023+ / 1x Linear-18 / Elite - Grille Kit Ford Transit Connect 1x Linear-18 Elite+ 2023+ / 1x Linear-18 / Low Beam Assist - Grille Kit Ford Transit Connect 2023+ / 1x Glide / Standard - Grille Kit Ford Transit Connect 2023+ / 1x Glide / Elite - Grille Kit Ford Transit Connect
    Spannungsbereich (DC) 10-32V 10-32V 10-32V 10-32V 10-32V 10-32V 10-32 V 10-32V 10-32V 10-32V
    LED-Lebensdauer 50,000 hours 50,000 hours 50,000 hours 50,000 hours 50,000 hours 50,000 hours 50,000 hours 50,000 hours 50,000 hours 50,000 hours
    Gewicht 1.1 kg 1.1 kg 0.68 kg 0.68 kg 1.1 kg 1.1 kg 2.4 lbs 1.1 kg 0.68 kg 0.68 kg
    Fernlicht-Funktion
    Gesamtlichtstrom 6,750 lm 13,500 lm 11,500 lm 12,800 lm 6,750 lm 13,500 lm 14,850 lm 18,000 lm 11,500 lm 12,800 lm
    Gesamtlichtstrom im Fahrer-Sichtfeld 4,806 lm 9,612 lm 6,958 lm 8,012 lm 4,806 lm 13,500 lm 10,573 Lm 12,816 lm 6,958 m 8,012 lm
    Farbtemperatur 5000K 5000K 5000K 5000K 5000K 5000K 5,000 K 5000K 5000K 5000K
    Leistungsaufnahme 63 watts 130 watts 120 Watts 130 watts 63 watts 130 watts 134 W 135 watts 120 watts 130 watts
    Stromaufnahme (14.4 V) 4.4 amps 9 Amps 8.3 Amps 9.2 amps 4.4 amps 9 amps 9.9 A 15 amps 8.3 Amps 9.2 amps
    Anschluss 2-pin Superseal (+25cm cable) 2-pin Superseal (+25cm cable) 2-pin/3-pin Superseal (+25cm Cable) 2-Pin/3-Pin Superseal (+25cm Cable) 2-pin Superseal (+25cm cable) 2-pin Superseal (+25cm cable) 3-pin Aptiv (+25cm cable) 4-Pin Deutsch DT (+25cm Cable) 2-pin/3-pin Superseal (+25cm cable) 2-pin/3-pin Superseal (+25cm Cable)
    Zertifizierung
    IP-Bewertung # IP68 IP68 IP68 IP68 IP68 IP68 IP68 IP68 IP68 IP68
    Fernlicht ECE R112 ECE R112 ECE R149 ECE R149 ECE R112 ECE R112 ECE R149 (Ref: 27.5*) ECE R112 ECE R149 ECE R149
    EMC-Zertifizierung ECE R10 ECE R10 ECE R10 ECE R10 ECE R10 ECE R10 ECE R10 ECE R10 ECE R10 ECE R10
    Salzsprühtest ISO 9227 ISO 9227 ISO 9227 ISO 9227 ISO 9227 ISO 9227 ISO 9227 ISO 9227 ISO 9227 ISO 9227
    Dump-Lastschutz ISO 7637-2 ISO 7637-2 ISO 7637-2 ISO 7637-2 ISO 7637-2 ISO 7637-2 ISO 7637-2 ISO 7637-2 ISO 7637-2 ISO 7637-2
    Lichttechnische Daten

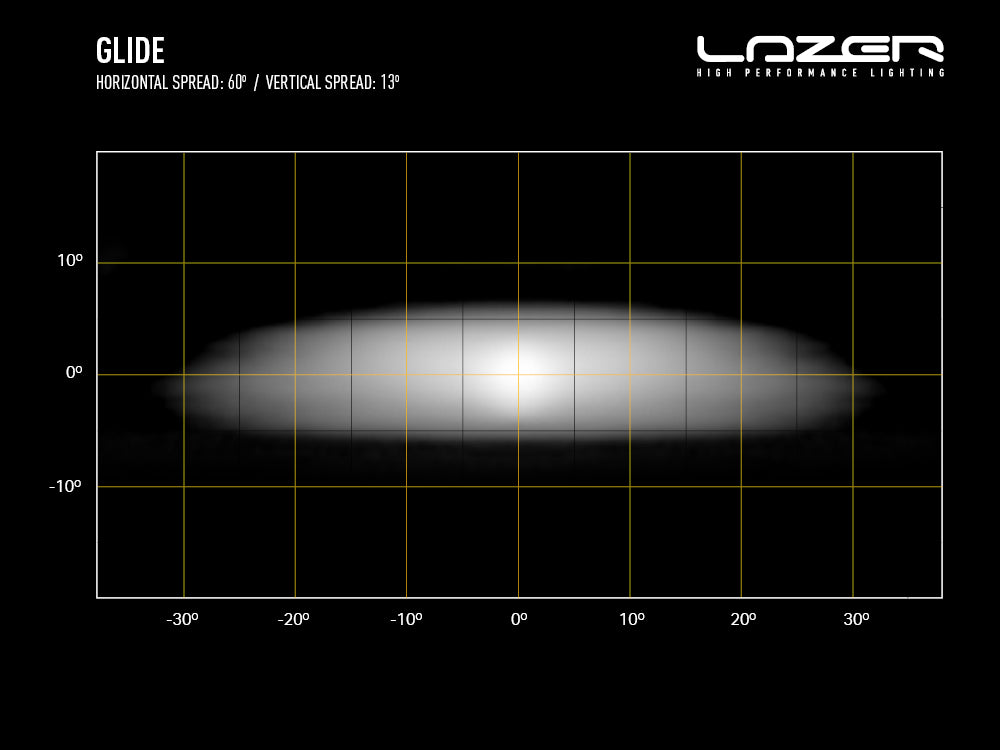

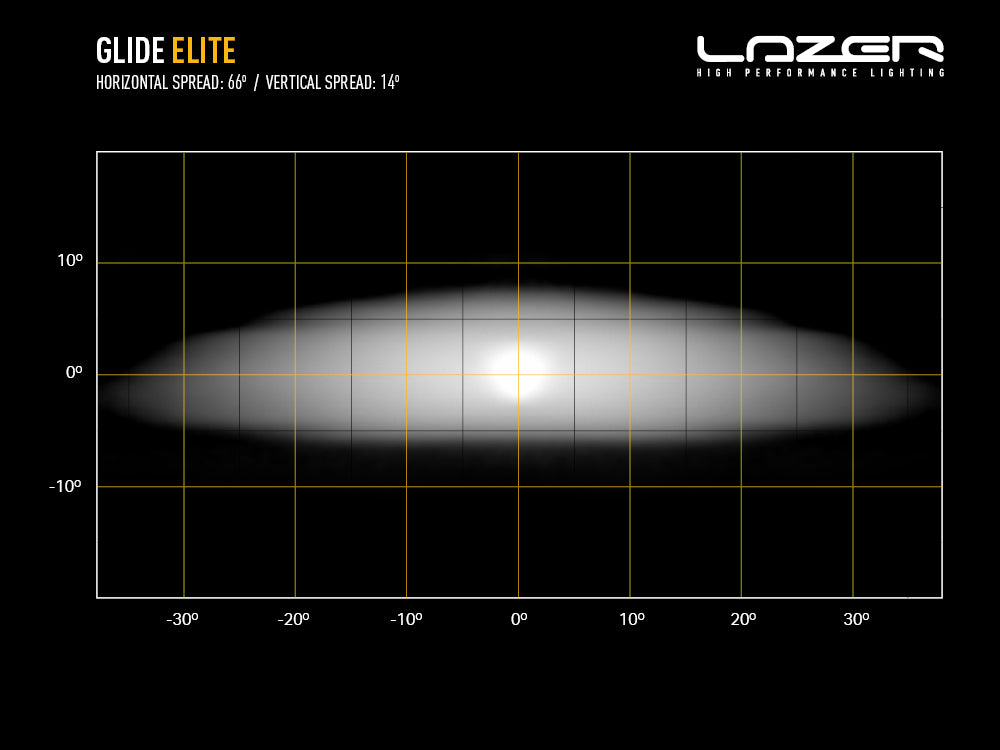

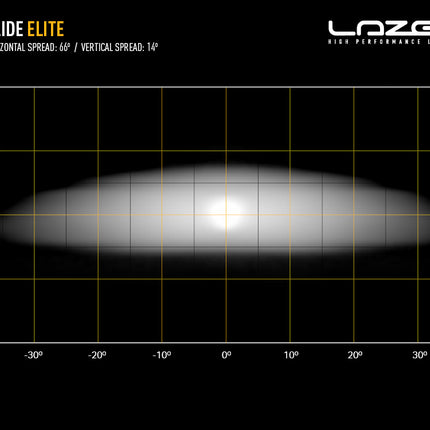

    Horizontaler Abstrahlwinkel 56° / 13° 64° / 15° 60° / 13° 66° / 14° 56° / 13° 64° / 15° 84° / 20° 60° / 20° 60° / 13° 66° / 14°

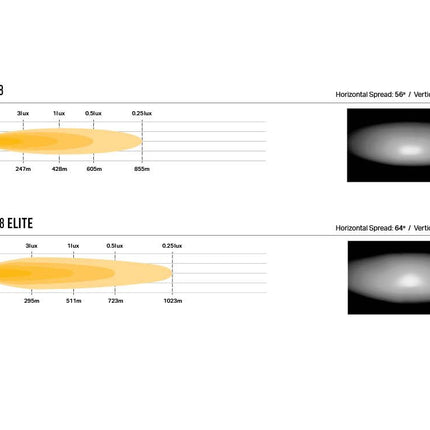

    0.25-Lux-Linie 855m 1023m 3,593ft 1,249m 855m 1023m 1,152 m 1,043m 1095m 1249m
    0.5-Lux-Linie 605m 723m 775m 883m 605m 723m 815 m 738m 775m 883m
    1-Lux-Linie 428m 511m 548m 624m 428m 511m 576 m 522m 548m 624m
    3-Lux-Linie 247m 295m 316m 361m 247m 295m 333 m 301m 316m 361m
