Electrical Wiring

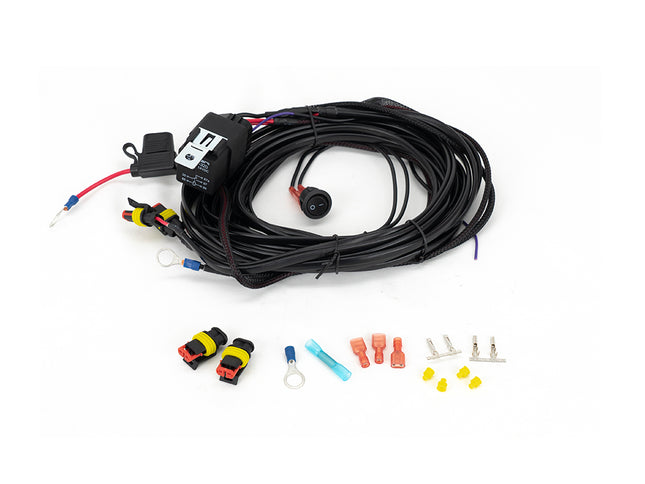

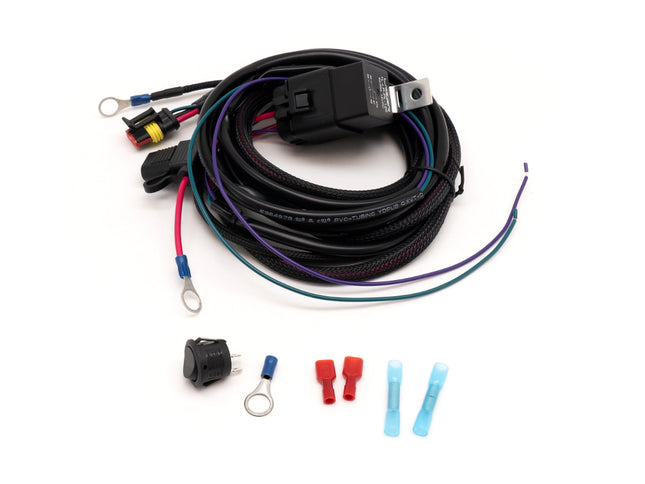

Two-lamp wiring kit for Lazer Lamps high-performance LED headlights. Setup is quick, easy, and reliable thanks to the 3-pin Superseal connector, requiring no configuration. The kit features a 12V relay (in a waterproof housing), a fuse, a battery clamp at one end, and 1.2m of flex cable on the headlight cable. It allows you to operate Lazer products either in parallel with the vehicle's Standard lighting and/or via an independent switch that can be mounted in your vehicle. All Lazer lamps are sold with a pre-wired socket that connects to the lamp harness connector to facilitate wiring to your vehicle's system. compatible with: Air-130 Elite Sentinel 9'' Elite (with parking light) Sentinel 9'' Highline (with parking light) Linear-18 Elite (with parking light) Triple-R 1250

Read more less

Do you want maximum control over your auxiliary lighting – without complicated wiring? The CANNY Smart Button from Lazer is your solution. Connected via Bluetooth to the CANNY interface, you can easily control your lighting at the touch of a button – without laying a single new cable. The smart button can be flexibly mounted in the vehicle or even worn on your body. As long as you are within a 10-meter radius of the paired interface, the connection remains stable and reliable. The button can be individually configured via the free CANNY.LZR app – you can control up to four switching outputs with it, either alone or combined with other CANNY buttons. Wireless control of auxiliary lights, reverse lights, work lights, or position lights Usable independently of the vehicle ignition – ideal for off-road use or camping Individually programmable: switching behavior adjustable via app Compatible with all CANNY Interfaces and versatile for 12V accessories Typical applications: Activate/deactivate high beam independently – practical in countries with restrictions on coupled auxiliary lights Switching between position light and main light mode of your Lazer lamps Control of work or reverse lights, even with the ignition off Switching beacon mode on or off Note: If you want to use the button to control the yellow dip mode of an Elite+ lamp, you must install a relay for signal inversion. You can find more information in our blog. The CANNY Smart Button is not only suitable for Lazer auxiliary lighting – you can also use it for other 12V vehicle components, such as auxiliary devices, pumps, or custom modifications. Important: The Smart Button only works in conjunction with a CANNY Interface.

Read more less

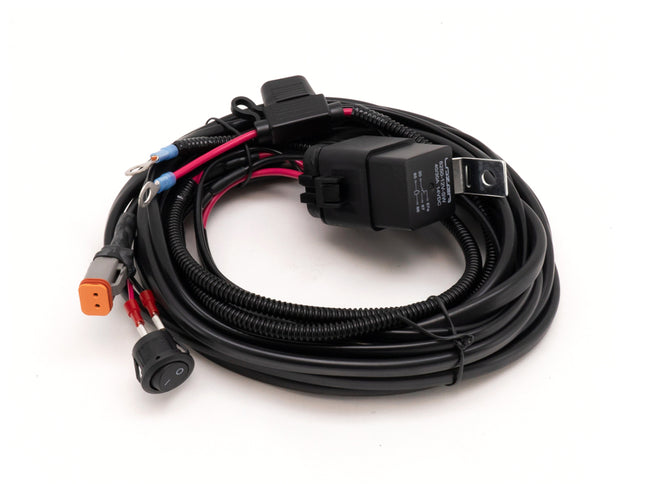

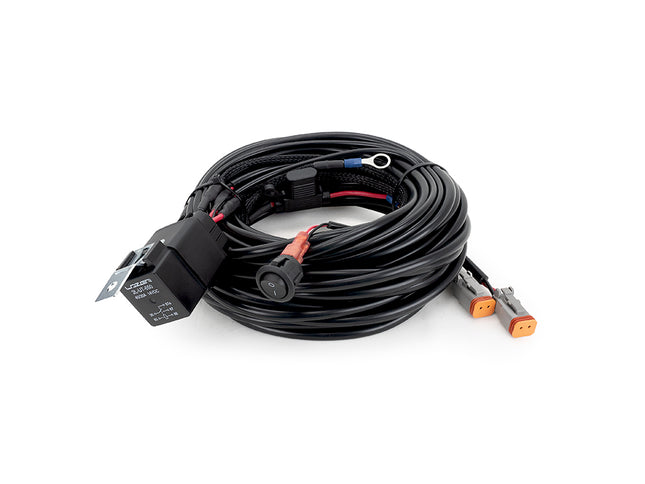

Two-lamp wiring kit for Lazer Lamps high-performance LED headlights. Setup is quick, easy, and reliable thanks to the 2-pin Deutsch DT connector, requiring no configuration. The kit features a 12V relay (in a waterproof housing), a fuse, a battery clamp at one end, and 2m of flex cable on the headlight cable. It allows you to operate Lazer products either in parallel with the vehicle's Standard lighting and/or via an independent switch that can be mounted in your vehicle. All Lazer lamps are sold with a pre-wired socket that connects to the lamp harness connector to facilitate wiring to your vehicle's system. compatible with: Linear-24 Flood Utility-25 Utility-25 MAXX Utility-45 Utility-50 Utility-80 HD (heavy duty) RP Spot

Read more less

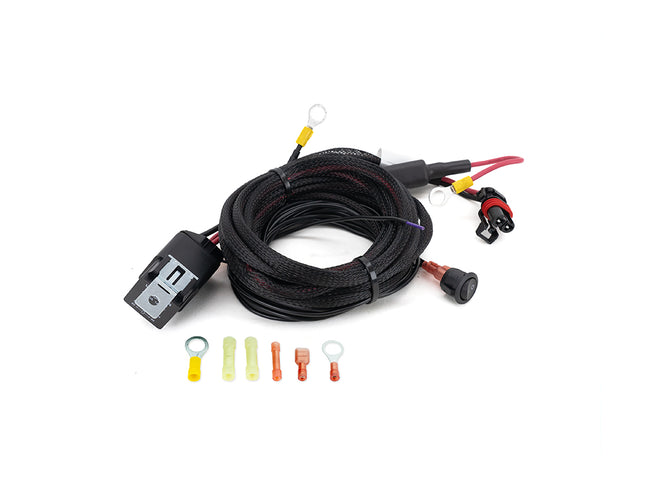

The two-lamp wiring kit allows for quick, easy, and reliable installation of two Lazer Lamps high-performance LED headlights. The 3-pin Superseal connector requires no additional configuration—simply plug and play. The wiring harness includes a 12V relay in a waterproof housing, a fuse, a battery connector, and 1.2 m of connecting cable per lamp. The lights can be operated either in parallel with the existing vehicle lighting or independently via a separate switch that can be mounted inside the vehicle. All Lazer headlights come with a pre-assembled female connector that fits directly into the male connector of the wiring harness for easy integration into the vehicle electrical system. Air-55 Air-90 Triple-R 750 Triple-R 850 Triple-R 1000 Linear-12 Elite (with Position Light) Sentinel 7'' Elite Sentinel 9'' Sentinel 9'' Chrome

Read more less

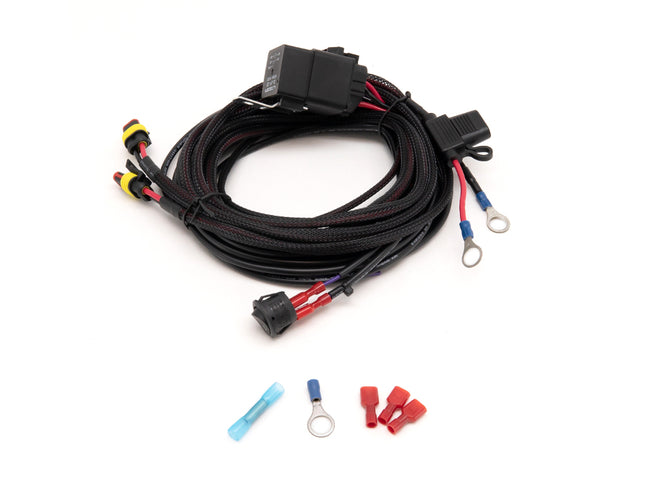

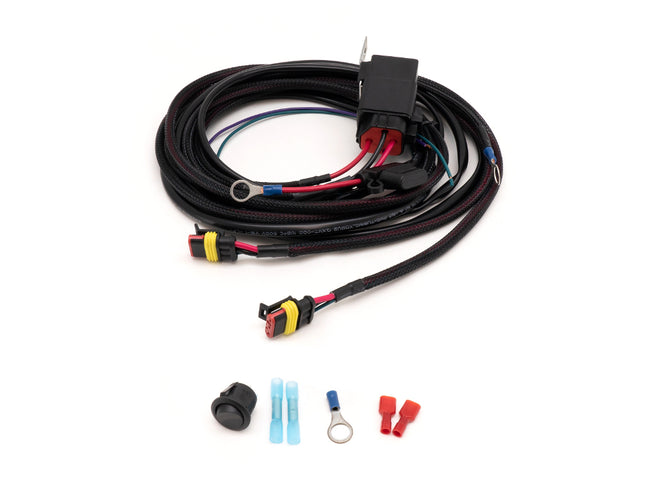

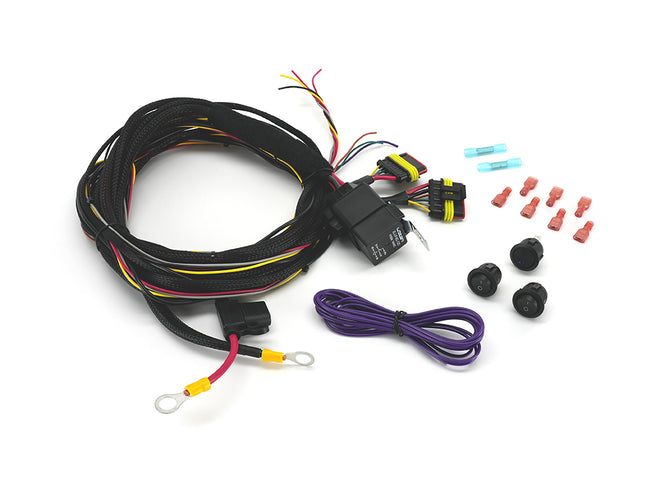

The ideal solution for wiring a pair of Lazer high-performance LED headlights, which also feature integrated side/parking light and Beacon functions. Setup is quick, easy, and reliable with 6-pin Superseal connectors and no configuration procedures required. The kit includes a 12V relay (in a waterproof housing), a 30A fuse, a battery terminal connection at one end, and 1.2m of flexible cable on the lamp wires. It allows Lazer products to be operated in parallel with the vehicle's Standard lighting. All Lazer lamps are sold with a pre-wired socket that connects to the lamp harness connector to facilitate wiring to your vehicle's system. compatible with: Triple-R 750 Beacon Triple-R 1000 Beacon Air-55 Beacon Air-90 Beacon

Read more less

Two-lamp wiring kit for Lazer Lamps high-performance LED headlights. Setup is quick, easy, and reliable thanks to the 2-pin Superseal connector, requiring no configuration. The kit features a 12V relay (in a waterproof housing), a fuse, a battery clamp at one end, and 1.2m of flex cable on the headlight cable. It allows you to operate Lazer products either in parallel with the vehicle's Standard lighting and/or via an independent switch that can be mounted in your vehicle. All Lazer lamps are sold with a pre-wired socket that connects to the lamp harness connector to facilitate wiring to your vehicle's system. compatible with: ST Evolution (All Products) Triple-R 750 Elite Triple-R 850 Elite Triple-R 1000 Elite Linear-6 (Standard / Elite) Linear-12 (Standard / Elite) Linear-18 (Standard) Sentinel 7'' Not suitable for: 2x Linear-18 Elite or 2x Sentinel 9'' Elite. To power two of these lights, please use the two-lamp "Medium Power" wiring kit (2L-MP-120).

Read more less

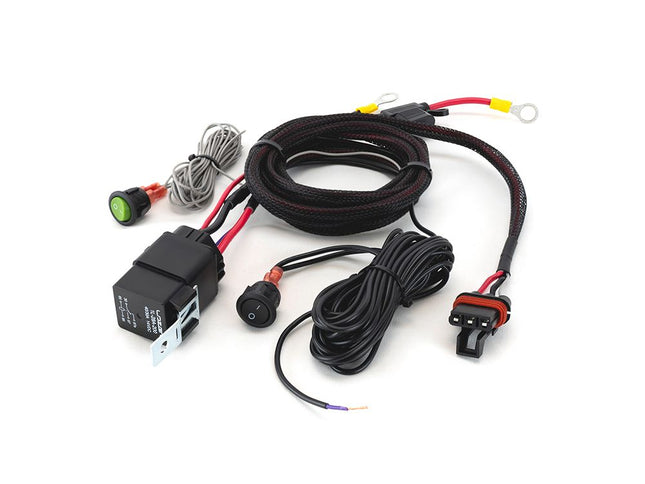

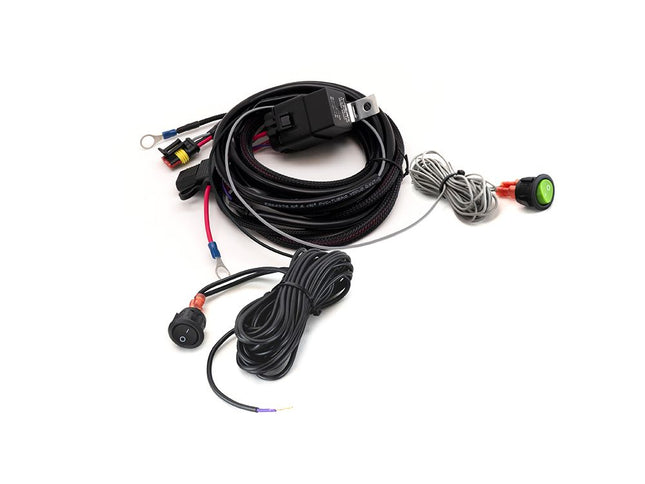

Single-lamp wiring kit for Lazer Lamps high-performance LED headlights. Setup is quick, easy, and reliable thanks to the 2-pin Superseal connector, requiring no configuration. The kit features a 12V relay (in a waterproof housing), a fuse, a battery clamp at one end, and 1.2m of flex cable on the headlight cable. It allows you to operate Lazer products either in parallel with the vehicle's Standard lighting and/or via an independent switch that can be mounted in your vehicle. All Lazer lamps are sold with a pre-wired socket that connects to the lamp harness connector to facilitate wiring to your vehicle's system. compatible with: Glide Glide Elite ST Evolution (All Products) Triple-R 750 Elite (Gen2) Triple-R 850 Elite (Gen2) Triple-R 1000 Elite (Gen2) Linear-6 (Standard / Elite) Linear-12 (Standard / Elite) Linear-18 (Standard / Elite) Linear-36 Linear-42 Linear-48 Sentinel 7'' Sentinel 9'' Elite

Read more less

The 3-meter cable extension kit from Lazer Lamps is the ideal solution if you need more leeway when mounting your LED auxiliary lighting. Whether for individual vehicle conversions, roof mounting, or complex installations – this robust extension allows you to easily reach even more distant mounting points. The IP68-certified connectors at both ends guarantee an absolutely sealed, weatherproof connection – perfect for off-road and outdoor use. All Lazer lights come standard with a pre-assembled female connector that can be directly connected to the male connector of this extension cable. This ensures quick and reliable integration into your vehicle's electrical system. Compatible with the following models:– Triple-R 750 / 850 / 1000 / 1250– Linear-12 Elite (with position light)– Linear-18 Elite (with position light)– Sentinel 7'' Elite– Sentinel 9'' / 9'' Chrome– Sentinel 9'' Elite (with position light)

Read more less

The 3-meter cable extension kit from Lazer Lamps is perfect for custom installations and mounting situations where the lamp needs to be positioned further away from the power connection. Thanks to the high-quality IP68 connectors at both ends, the kit provides a reliable, waterproof connection – ideal for demanding environments and professional applications. The extension is directly compatible with the pre-assembled connectors of Lazer lamps, ensuring a quick and secure connection to the vehicle's wiring harness – without any soldering or special adaptations. Compatible with:– Carbon Series (all models)– RP Hyperspot– Utility-50 with warning light– Utility-50 with red tail light– Utility-80 HD (with variable brightness)

Read more less

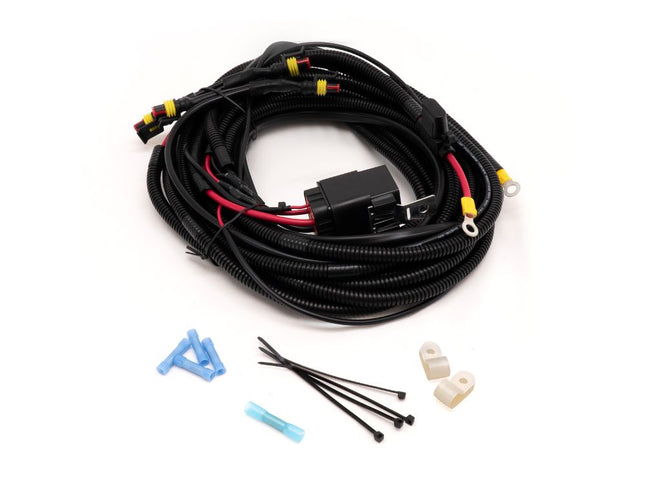

This 4-lamp wiring kit is the perfect solution if you want to connect four Lazer high-performance LED lights – for example, on your pickup truck with two headlights at the front of the vehicle and two additional ones on the roof or roll bar. The plug-and-play system with a 2-pin Superseal connector makes setup easy, reliable, and entirely configuration-free. A 12V relay, a 35A fuse, battery terminals, and two cable harnesses (1.5m and 6.5m) ensure flexible mounting options and enable synchronized operation with your vehicle's high beams. The system is only suitable for lights without a parking light function. Thanks to the included connectors, the connection to the pre-wired Lazer lamps is quick and clean. Compatible with:ST Evolution (all models), Triple-R 750 / 850 / 1000 Elite, Linear-6 / 12 (Standard and Elite), Linear-18 (Standard).Not suitable for: Triple-R 1250 or Linear-18 Elite. Note: Use is only recommended for setups with two Triple-R 1000 (or ST8 / Linear-12 Elite) and two Triple-R 750 (or ST4 / Linear-6 Elite).

Read more less

The Lazer single lamp wiring harness is the ideal solution for simple and reliable installation of a high-performance LED headlight – without any configuration. Equipped with a 2-pin Aptiv connector and a waterproof 12V relay, the set ensures quick, clean integration into your vehicle system. The kit includes a battery terminal, a fuse, a waterproof relay housing, and 3m of flexible cable for connecting to the light. This allows you to operate your Lazer lamp either in parallel with the factory vehicle lighting or independently via a separate switch in the interior. All Lazer lamps come standard with a pre-wired socket that connects directly to the harness connector – for a secure and straightforward connection. Compatible with: Linear-36 Elite Linear-42 Elite Linear-48 Elite Triple-R 24 Elite+ Note: For the lights mentioned above, the single lamp wiring harness is already included in the scope of delivery.

Read more less

Lazer's single lamp wiring harness is specially designed for the Linear-18 Elite+, allowing for easy, safe, and reliable installation of your high-performance LED light. Thanks to the 3-pin Aptiv connector, the connection is quickly established – without any configuration. The kit includes a 12V relay in a waterproof housing, a fuse, a battery clamp, and 2m of flex cable for connecting to the light. This allows you to operate the headlight either in parallel with the standard vehicle lighting or independently via a switch in the interior. All Lazer lights come with a pre-assembled socket that connects directly to the plug of this wiring harness – for uncomplicated integration into your vehicle. Compatible with: Linear-18 Elite+ Note: The light mentioned above is already supplied ex-works with this single lamp wiring harness.

Read more less

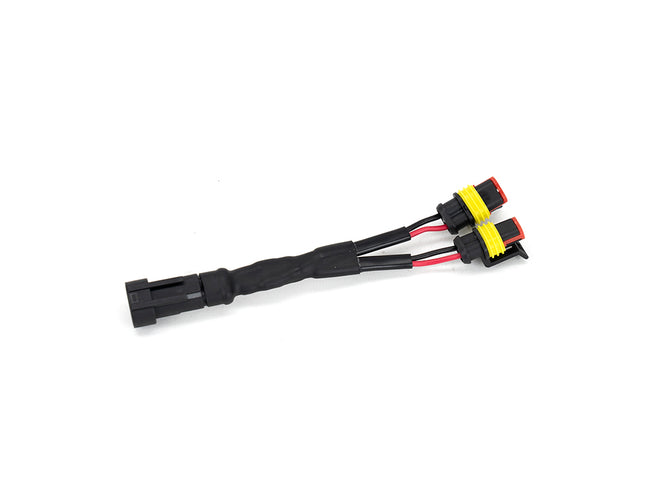

The 2-pin Y-splitter with Superseal connectors is the ideal solution for efficiently wiring multiple low-power Lazer lights – without additional parallel wiring harnesses. Perfectly suited for setups with three or more lights, where each lamp consumes 75W or less and no special 4-lamp wiring harness is available. Thanks to the IP68-certified Superseal connectors, the Y-splitter can be integrated securely and weatherproof. All Lazer lights come pre-wired with a socket that connects directly to the lamp wiring harness plug or this splitter – for simple and clean installation. Compatible with: ST2 ST4 ST6 Triple-R 750 Wide / Elite Triple-R 850 Elite Linear-6 Standard / Elite Linear-12 Standard / Elite Sentinel 7'' Standard (Non-PL) Important: The maximum total current draw must not exceed 14A.

Read more less

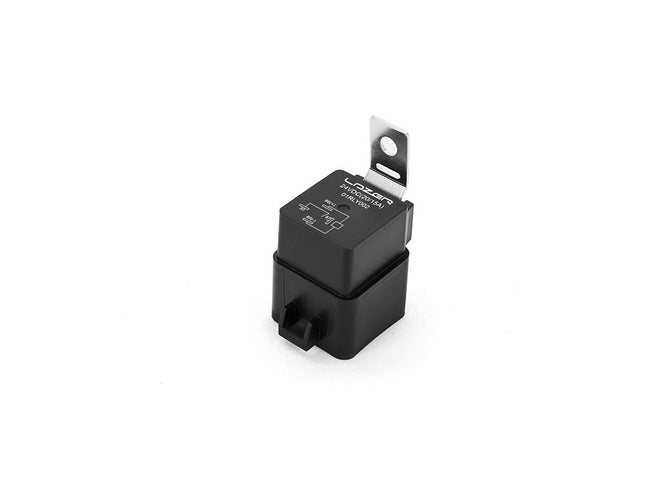

For use with 24V vehicle systems, Lazer offers the suitable 4-pin 24V relay as a direct replacement for the standard 12V relay. It simply plugs into the existing relay socket and is fully compatible with all current Lazer wiring harness kits. Like its 12V counterpart, the 24V relay is housed in a robust, waterproof enclosure – for a safe, durable and maintenance-free electrical installation under all operating conditions.

Read more less

Canny is a CAN interface developed by Lazer Lamps that enables the installation of auxiliary lights on selected vehicles equipped with a CAN communication system. In these vehicles, it is often not possible to tap into traditional 12V control signals directly from the main headlights, for example. The system consists of the Canny dongle, a matching cable harness, and a special app (CANNY.LZR). Installation can be done either in the engine compartment, for quick and easy installation, or inside the vehicle. Thanks to Bluetooth, synchronization and updates are done wirelessly "over the air," further simplifying and speeding up installation. The dongle is equipped with an automotive-Standard Molex connector, providing a completely waterproof solution according to IP68. Thoughtful design features and the included cable ties facilitate installation. Positioning in the engine compartment is preferred, but depends on the accessibility of the CAN Hi/CAN Lo cables in the vehicle. The connection to the vehicle's CAN lines is made using the included cable harness. The blue (CAN Hi) and yellow (CAN Lo) cables are each equipped with high-quality, waterproof heat-seal crimp connectors. The cable harness also includes a fused positive connection for the battery and a ground cable. Four output cables can be individually programmed to switch various signals such as high beam, Position Light, ignition, reverse gear, etc. The outputs are compatible with Lazer Lamps vehicle cable harnesses (with an output current of >1 amp). Activation, synchronization, and subsequent updates of the Canny dongle are handled via the app. After entering the serial number and the individual PIN code, the user receives access to vehicle-specific installation instructions, can pair the device, and assign and test the desired lighting functions. Later updates, e.g., following changes to the CAN signals by the vehicle manufacturer, can also be conveniently installed via Bluetooth. A list of compatible vehicles can be found at: www.lazerlamps.com/canny-vehicles Product features • IP68 waterproof CANNY dongle with Molex connector • Installation in the engine compartment or vehicle interior possible • Connection to the vehicle CAN lines (vehicle-specific instructions for locating the lines and connecting via app available) • Switches up to 4 different outputs (e.g. high beam, Position Light, reverse gear, ignition) • Bluetooth updates via CANNY app (Android & iOS) • Technical support from the UK sales team • Compatible with vehicle-side cable sets (sold separately) • Quick and user-friendly installation

Read more less

The 3m cable extension kit is ideal for custom designs and installations that require additional wiring to the luminaires. It includes IP68 connectors on both ends. All Lazer lamps are sold with a pre-assembled female connector that connects to the male connector of the lamp wiring harness to facilitate wiring into your vehicle's system. compatible with: Triple-R 1000 (with Beacon function)

Read more less

The 3m Cable Extension Kit from Lazer is the ideal solution for custom installations where a greater distance between the light bar and the power source needs to be bridged. Equipped with IP68-certified connectors at both ends, the kit guarantees a durable, weatherproof connection – perfect for professional vehicle and off-road applications. All Lazer lights come standard with a pre-assembled female connector plug that connects directly to the male plug of the lamp wiring harness or this extension. This ensures quick and reliable integration into your vehicle system. Compatible with: T-16 Evolution T-24 Evolution T-28 Evolution Triple-R 16 Elite Triple-R 24 Elite Triple-R 28 Elite

Read more less

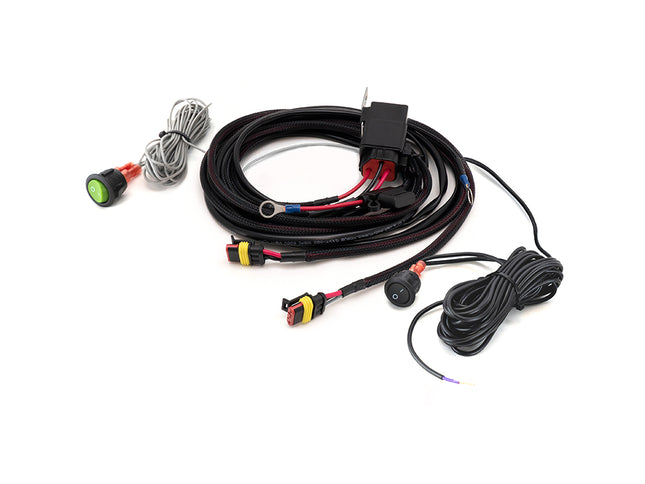

Two-lamp wiring kit for Lazer Lamps high-performance LED headlights. Setup is quick, easy, and reliable thanks to the 2-pin Superseal connector, requiring no configuration. The kit features a 12V relay (in a waterproof housing), a fuse, a battery clamp at one end, and 1.2m of flex cable on the headlight cable. It allows you to operate Lazer products either in parallel with the vehicle's Standard lighting and/or via an independent switch that can be mounted in your vehicle. All Lazer lamps are sold with a pre-wired socket that connects to the lamp harness connector to facilitate wiring to your vehicle's system. compatible with: Sentinel 9'' Elite Linear-18 Elite

Read more less

Two-lamp wiring kit for Lazer Lamps high-performance LED headlights. Setup is quick, easy, and reliable thanks to the 3-pin Superseal connector, requiring no configuration. The kit features a 12V relay (in a waterproof housing), a fuse, a battery clamp at one end, and 1.2m of flex cable on the headlight cable. It allows Lazer products to be operated either in parallel with the vehicle's Standard lighting and/or via an independent switch that can be mounted in your vehicle. It includes a push button for easy operation of the light modes. All Lazer lamps are sold with a pre-wired socket that connects to the lamp harness connector to facilitate wiring to your vehicle's system. compatible with: Linear-6 Elite+

Read more less

Two-lamp wiring kit for Lazer Lamps high-performance LED headlights. Setup is quick, easy, and reliable thanks to the 2-pin Superseal connector, requiring no configuration. The kit features a 12V relay (in a waterproof housing), a fuse, a battery clamp at one end, and 3.2 m of flex cable on the headlight cable. It allows you to operate Lazer products either in parallel with the vehicle's Standard lighting and/or via an independent switch that can be mounted in your vehicle. All Lazer lamps are sold with a pre-wired socket that connects to the lamp harness connector to facilitate wiring to your vehicle's system. compatible with: ST Evolution (All Products) Triple-R 750 Elite Triple-R 850 Elite Triple-R 1000 Elite Linear-6 (Standard / Elite) Linear-12 (Standard / Elite) Linear-18 (Standard) Sentinel 7'' Not suitable for: 2x Linear-18 Elite or 2x Sentinel 9'' Elite. To power two of these lights, please use the two-lamp "Medium Power" wiring kit (2L-MP-120).

Read more less

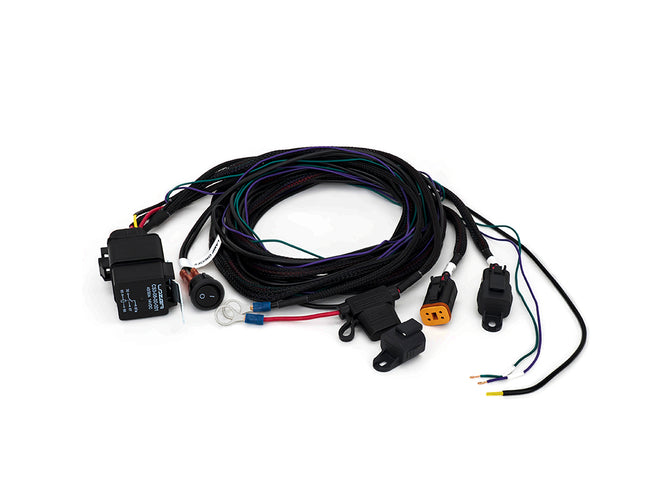

Two-lamp wiring kit for Lazer Lamps high-performance LED headlights. Setup is quick, easy, and reliable thanks to the 4-pin Deutsch DT connector, requiring no configuration. The kit features a 12V relay (in a waterproof housing), a fuse, a battery clamp at one end, and 2m of flex cable on the headlight cable. It allows you to operate Lazer products either in parallel with the vehicle's Standard lighting and/or via an independent switch that can be mounted in your vehicle. All Lazer lamps are sold with a pre-wired socket that connects to the lamp harness connector to facilitate wiring to your vehicle's system. compatible with: Carbon Series (All Products) RP Hyperspot Utility-50 with warning light Utility-50 with red taillight Utility-80 HD (with variable brightness) Please note that the corresponding Lazer single and dual lamp wiring kits for the Utility-80 HD Variable require customers to provide their own switching method to adjust the brightness up/down.

Read more less

Single-lamp wiring kit for Lazer Lamps high-performance LED headlights. Setup is quick, easy, and reliable thanks to the 2-pin Deutsch connector, requiring no configuration. The kit features a 12V relay (in a waterproof housing), a fuse, a battery clamp at one end, and 5m of flex cable on the headlight cable. It allows you to operate Lazer products either in parallel with the vehicle's Standard lighting and/or via an independent switch that can be mounted in your vehicle. All Lazer lamps are sold with a pre-wired socket that connects to the lamp harness connector to facilitate wiring to your vehicle's system. compatible with: Linear-24 Flood Utility-25 Utility-25 MAXX Utility-45 Utility-50 Utility-80 HD (heavy duty) RP Spot

Read more less

The single-lamp cable kit is the ideal solution for quick, easy, and reliable connection of Lazer Lamps' high-performance LED spotlights. Thanks to the 3-pin Superseal connector, no configuration is required—simply plug and play. The wiring harness includes a 12V relay in a waterproof housing, a fuse, a connector for the vehicle battery, and a 1.2 m long connection cable for the lamp. The wiring can be configured either in parallel with the Standard vehicle lighting or independently via a separate switch mounted inside the vehicle. All Lazer headlights come with a pre-assembled female connector that connects directly to the male connector of the wiring harness for easy integration into the vehicle electrical system. Air-55 Air-90 Air-130 Elite Glide (with Position Light) Glide Elite (with Position Light) Triple-R 750 (Gen2) Triple-R 850 (Gen2) Triple-R 1000 (Gen2) Triple-R 1250 (Gen2) Linear-12 Elite (with Position Light) Linear-18 Elite (with Position Light) Sentinel 7'' Elite Sentinel 9'' Sentinel 9'' Chrome Sentinel 9'' Highline (with Position Light) Sentinel 9'' Elite (with Position Light)
