Grille Kit Iveco Daily

Description

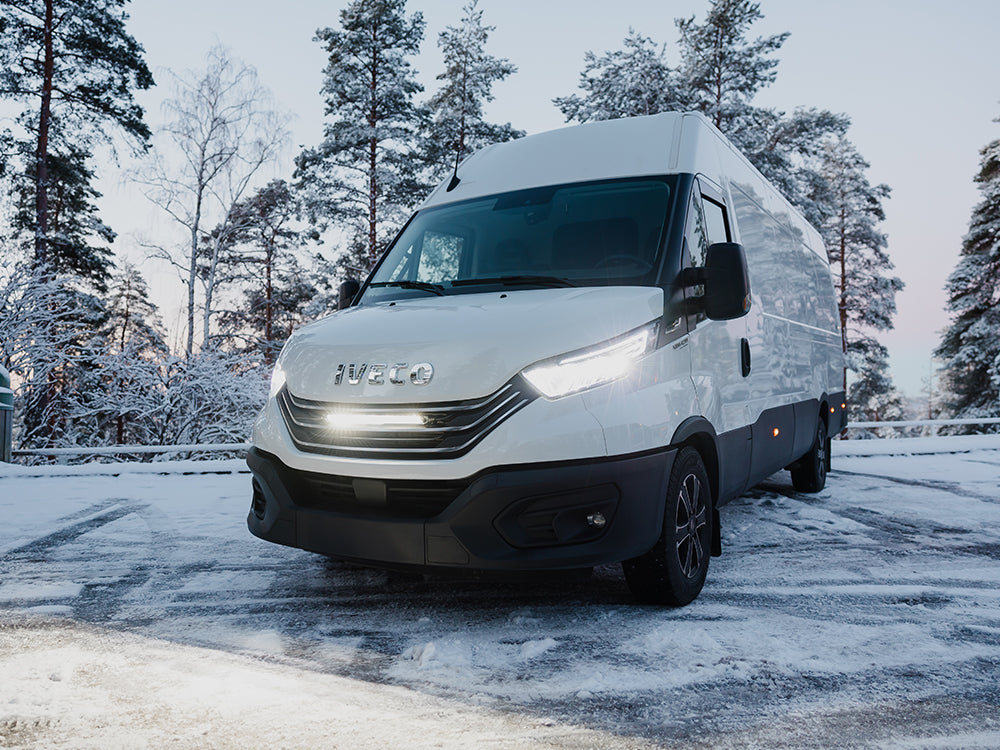

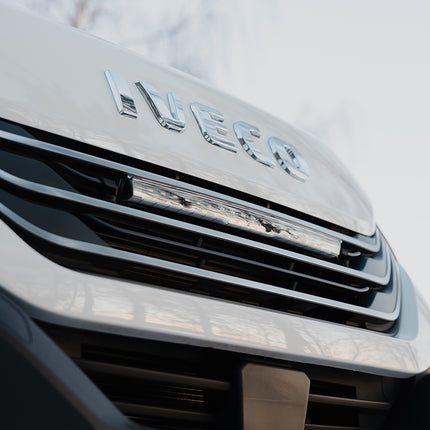

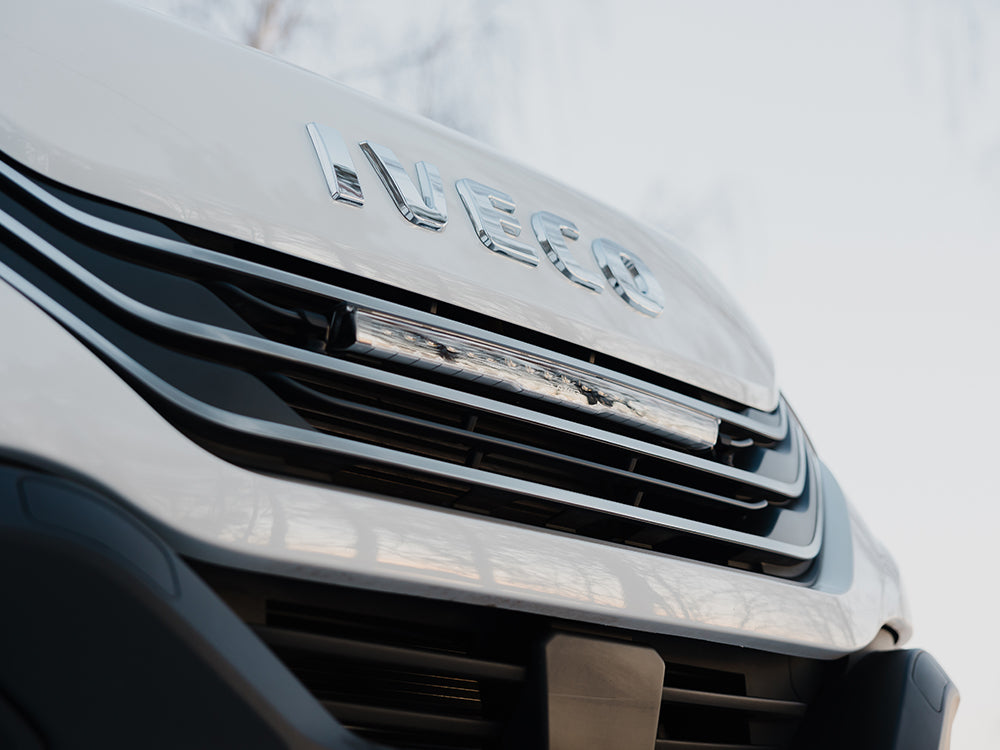

For a clean and high-quality retrofit of auxiliary headlights, Lazer Lamps offers the vehicle-specific grille integration kit for the Iveco Daily . Thanks to specially developed mounting brackets, the powerful LED headlights can be quickly and precisely installed in the vehicle's original grille. The integration is so discreet that the Grenadier's original design is fully preserved – ideal for those who value a factory-like appearance .

In addition to the headlights, the kit includes the matching wiring harness and precision-machined mounting brackets that are optimally adapted to the Standard grille. In combination with the included self-tapping plastic screws, a stable and theft-proof installation is guaranteed.

Made from a UV-stable and weatherproof composite material , the brackets guarantee long-lasting and reliable fastening – even under extreme operating conditions.

For easy and precise installation, the set includes a cutting template for an exact fit , which makes installation much easier.

Maximum light output, discreet appearance and lasting durability – perfectly matched to the Iveco Daily.

Grille Kit Iveco Daily

Product form

Free pickup in our shop(s)

€720,00 Incl. VAT

    • Perfekte Integration ins Fahrzeugdesign
    • Einfache und saubere Montage
    • Maximale Lichtleistung an optimaler Position
    • Robuste und langlebige Konstruktion
    • Erhöhter Diebstahlschutz
    • 5 Jahre Garantie
      Produktmerkmale
    • Vehicle-specific brackets for seamless OE-style grille integration
    • Custom-fit version for Iveco Daily (2019-2021)

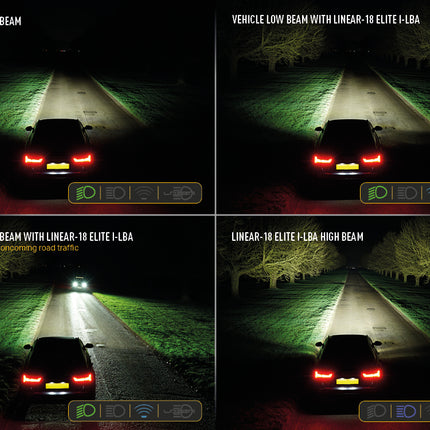

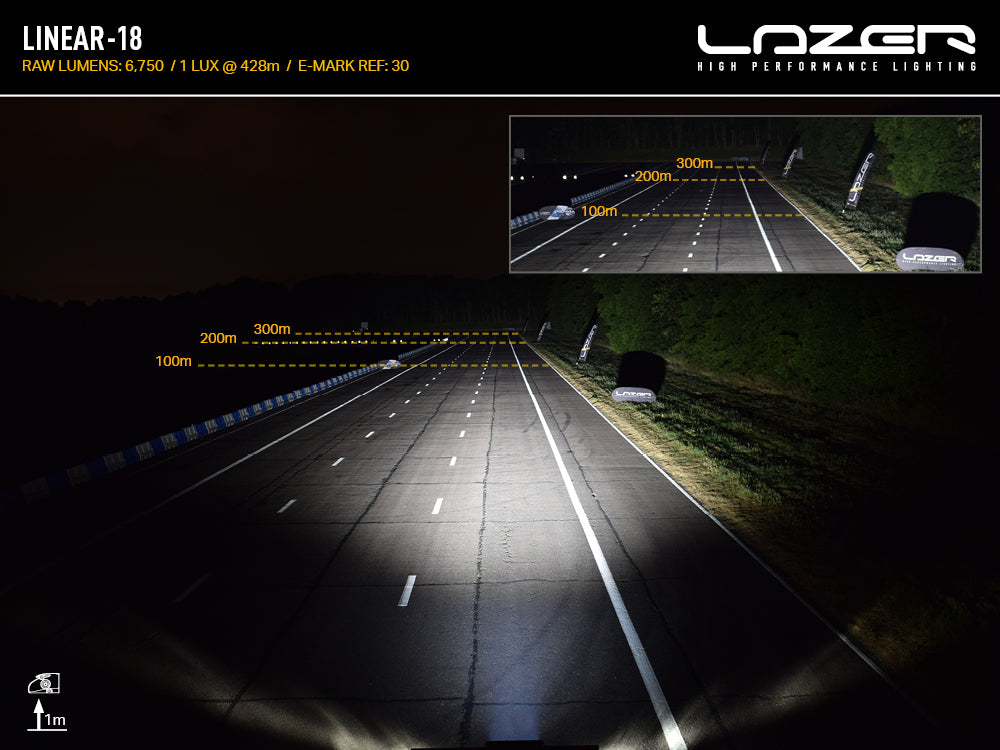

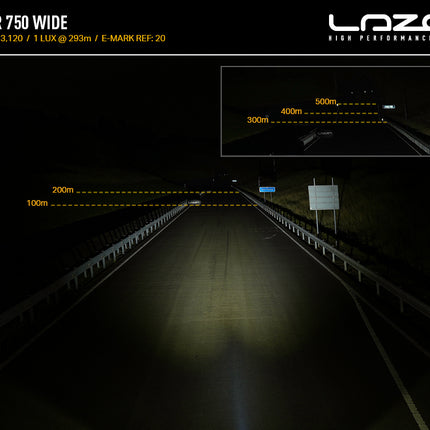

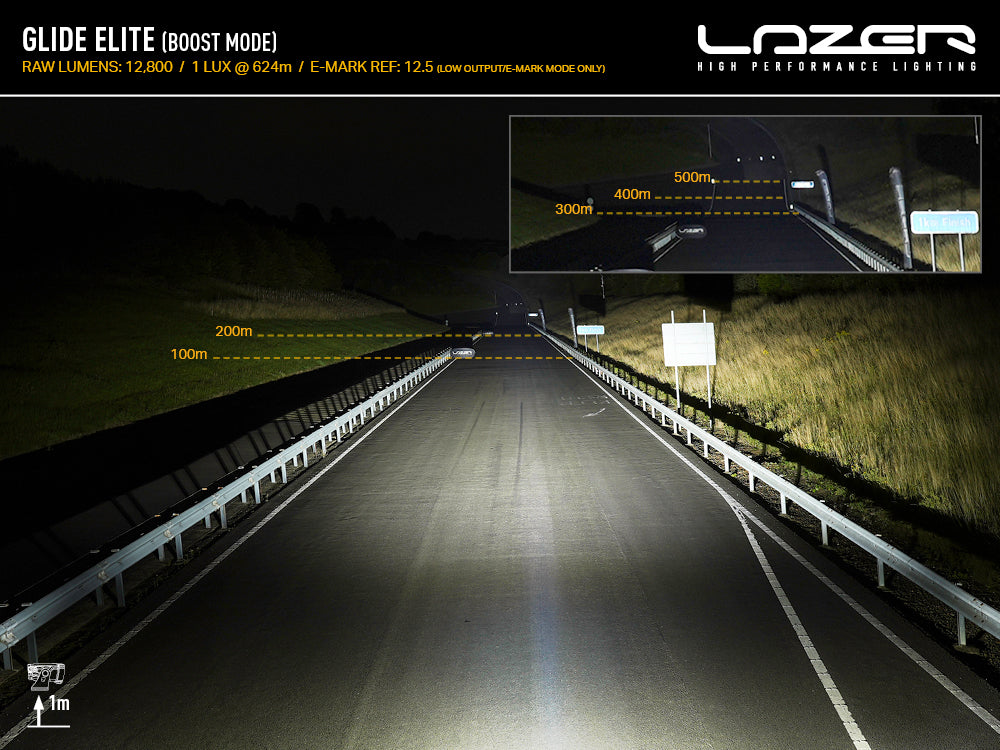

    • Designed for use with Linear-18 / Glide / Triple-R 750 LED headlights – Standard, Wide, Beacon and Elite variants
    • Includes precision-machined brackets and a cable set for two lamps
    • Supplied with cutting templates and anti-theft fixings for secure, professional installation
    • Brackets made of high-strength, UV-resistant composite material
    • Fully road legal and ECE compliant
    • Covered by a comprehensive 5-year warranty
    • Designed and manufactured in Great Britain
      Lieferumfang
    • x2 LED headlights (Triple-R 750 or Glide)
    • x1 Grille mounting kit
    • x1 Two-lamp wiring harness
    • Instructions
      Downloads
    PDF Iveco_Daily_2024_-_Grille_Kit_Instructions.pdf
    PDF Iveco_Daily_2019_Grille_Kit_-_Instructions.pdf

    Description

    For a clean and high-quality retrofit of auxiliary headlights, Lazer Lamps offers the vehicle-specific grille integration kit for the Iveco Daily . Thanks to specially developed mounting brackets, the powerful LED headlights can be quickly and precisely installed in the vehicle's original grille. The integration is so discreet that the Grenadier's original design is fully preserved – ideal for those who value a factory-like appearance .

    In addition to the headlights, the kit includes the matching wiring harness and precision-machined mounting brackets that are optimally adapted to the Standard grille. In combination with the included self-tapping plastic screws, a stable and theft-proof installation is guaranteed.

    Made from a UV-stable and weatherproof composite material , the brackets guarantee long-lasting and reliable fastening – even under extreme operating conditions.

    For easy and precise installation, the set includes a cutting template for an exact fit , which makes installation much easier.

    Maximum light output, discreet appearance and lasting durability – perfectly matched to the Iveco Daily.

    Technische Daten
    Spannungsbereich (DC) 10-32V 10-32V 10-32V 10-32V 10-32V 10-32V 10-32V 10-32V 10-32V 10-32V
    LED-Lebensdauer 50.000 Stunden 50.000 Stunden 50.000 Stunden 50.000 Stunden 50,000 hrs 50,000 hrs 50,000 hrs 50,000 hrs 50,000 hrs 50,000 hrs
    Gewicht 2,6 kg 2,6 kg 2,6 kg 2,6 kg 1.1 kg 1.1 kg 1.1 kg 1.1 kg 0.68 kg 0.68 kg
    Fernlicht-Funktion

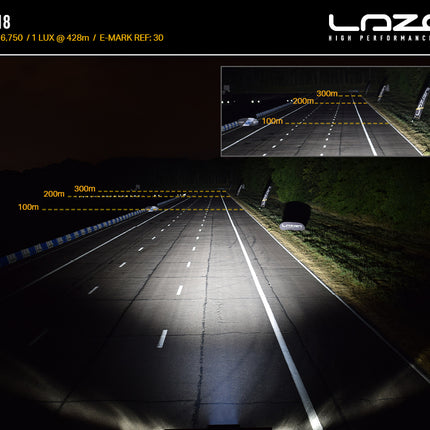

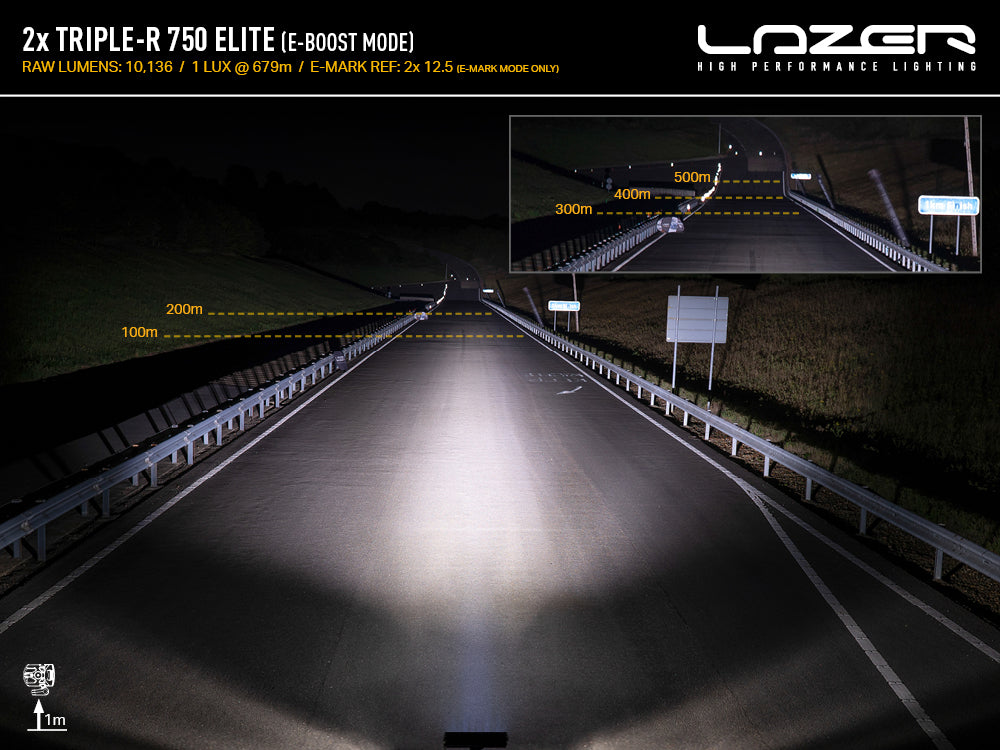

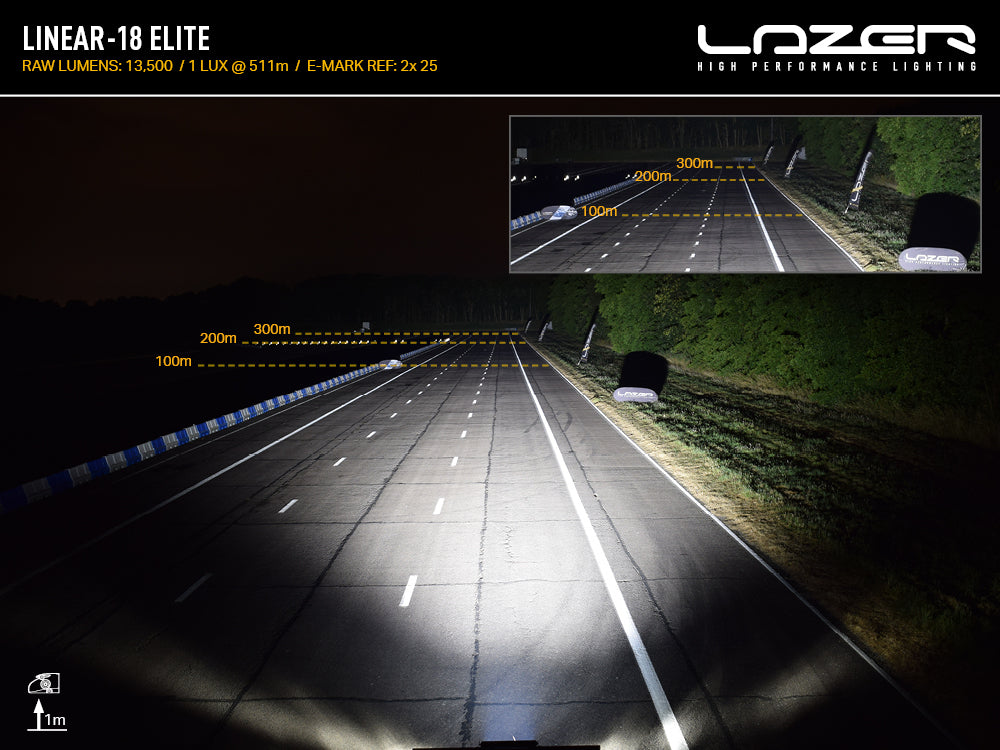

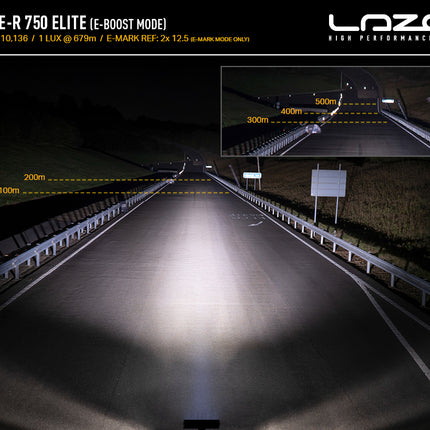

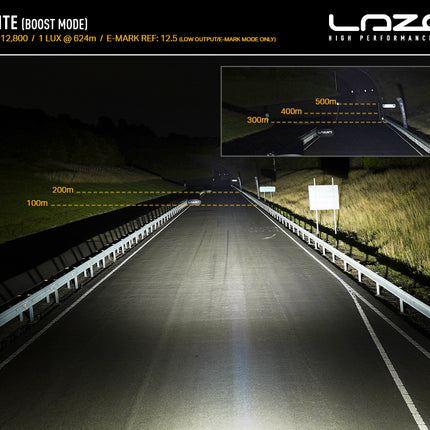

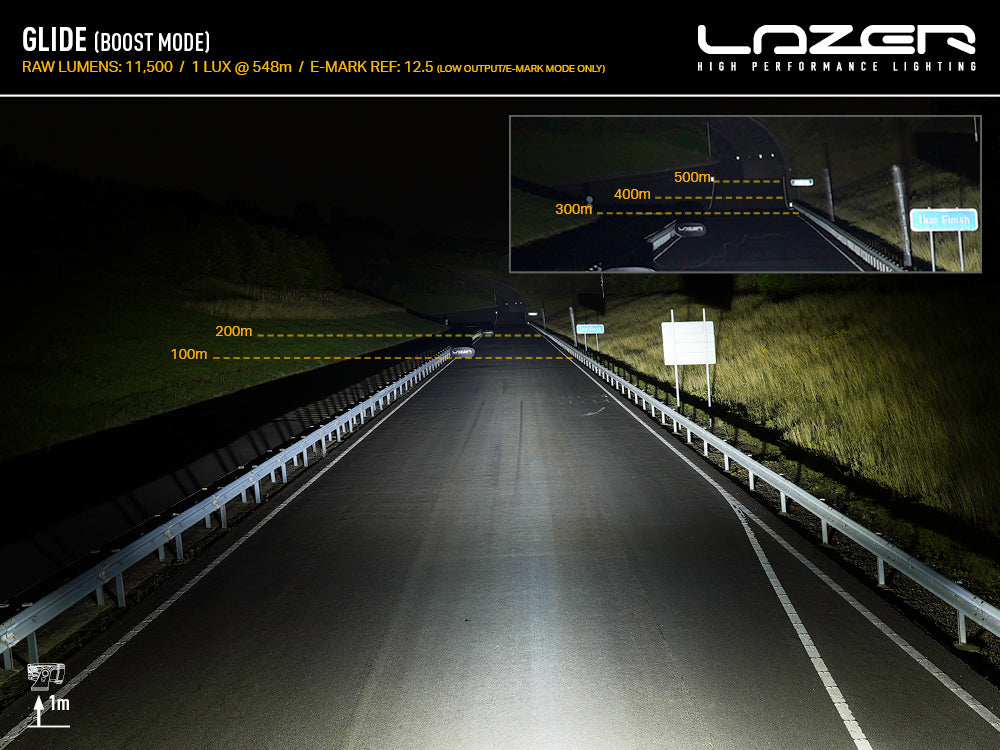

    Gesamtlichtstrom 9240 Lm 10136 Lm 9240 Lm 10800 Lm 6,750 Lm 13,500 Lm 18,000 Lm 14,850 Lm 11,500 Lm 12,800 Lm
    Gesamtlichtstrom im Fahrer-Sichtfeld 5572 Lm 6680 Lm 5266 Lm 2484 Lm 4,806 Lm 9,612 Lm 12,816 Lm 10,573 Lm 6,958 Lm 8,012 Lm
    Farbtemperatur 5000K 5000K 5000K 5000K 5000K 5000K 5000K 5000K 5000K 5000K
    Leistungsaufnahme 88 W 104 W 88 W 104 W 63 Watts 130 Watts 135 Watts 134 Watts 120 Watts 130 Watts
    Stromaufnahme (14.4 V) 6,2 A 7,2 A 6,2 A 7,4 A 4.4 Amps 9 Amps 15 Amps 9.9 Amps 8.3 Amps 9.2 Amps
    Anschluss 3-Pin Superseal (+25 cm Cable) 2-Pin Superseal (+25 cm Cable) 2-Pin Superseal (+25 cm Cable) 6-Pin Superseal (+25 cm Cable) 2-Pin Superseal (+25cm Cable) 2-Pin Superseal (+25cm Cable) 4-Pin Deutsch DT (+25cm Cable) 3-Pin Aptiv (+25cm Cable) 2-Pin/3-Pin Superseal (+25cm Cable) 2-Pin/3-Pin Superseal (+25cm Cable)
    Zertifizierung
    IP-Bewertung # IP68 IP68 IP68 IP68 IP68 IP68 IP68 IP68 IP68 IP68
    Fernlicht ECE R112 ECE R112 ECE R149 ECE R149 ECE R112 ECE R112 ECE R112 ECE R149 ECE R149 ECE R149
    EMC-Zertifizierung ECE R10 ECE R10 ECE R10 ECE R10 ECE R10 ECE R10 ECE R10 ECE R10 ECE R10 ECE R10
    Salzsprühtest ISO 9227 ISO 9227 ISO 9227 ISO 9227 ISO 9227 ISO 9227 ISO 9227 ISO 9227 ISO 9227 ISO 9227
    Dump-Lastschutz ISO 7637-2 ISO 7637-2 ISO 7637-2 ISO 7637-2 ISO 7637-2 ISO 7637-2 ISO 7637-2 ISO 7637-2 ISO 7637-2 ISO 7637-2

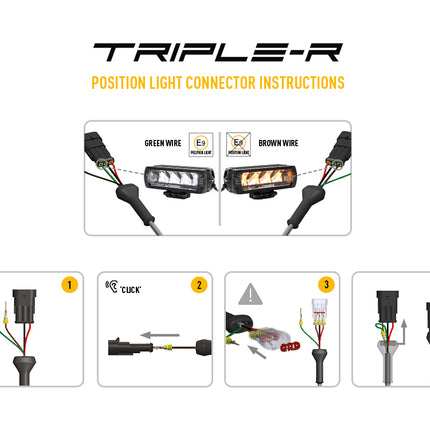

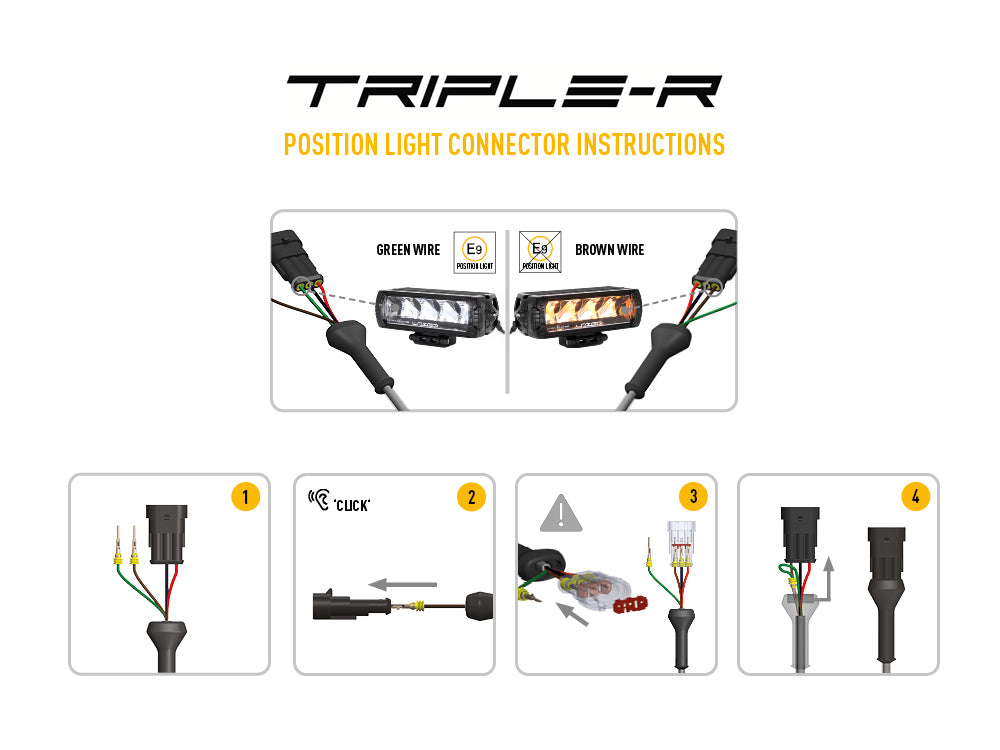

    Positionslicht (weiß) ECE R7 N/A N/A ECE R7
    Lichttechnische Daten

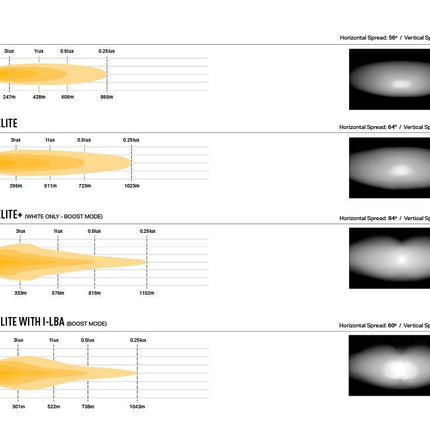

    Horizontaler Abstrahlwinkel 19° / 18° 42° / 13° 40° / 20° 28° / 16° 56° / 13° 64° / 15° 60° / 20° 84° / 20° 60° / 13° 66° / 14°

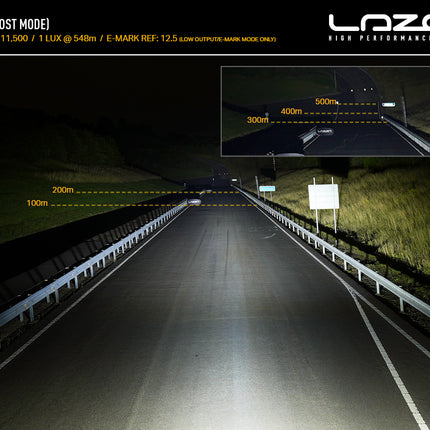

    0.25-Lux-Linie 1225 m 1358 m 829 m 1249 m 855m 1023m 1,043m 1,152m 1095m 1249m
    0.5-Lux-Linie 866 m 960 m 587 m 883 m 605m 723m 738m 815m 775m 883m
    1-Lux-Linie 612 m 679 m 415 m 624 m 428m 511m 522m 576m 548m 624m
    3-Lux-Linie 354 m 392 m 239 m 361 m 247m 295m 301m 333m 316m 361m
