Grille Kit Ford Transit

Description

For a clean and high-quality retrofit of auxiliary lights, Lazer Lamps offers the vehicle-specific grille integration kit for the Ford Transit. Thanks to specially developed mounting brackets, the powerful LED lights can be quickly and precisely installed in the vehicle's original grille. The integration is so discreet that the Grenadier's original design is completely preserved – ideal for those who value a factory-like appearance.

In addition to the lights, the kit includes the matching wiring harness and precision-engineered mounting brackets that are optimally adapted to the standard grille. In combination with the included self-tapping plastic screws, a stable and theft-proof mounting is guaranteed.

Made from a UV-stable and weather-resistant composite material, the brackets guarantee long-lasting and reliable fastening – even under extreme operating conditions.

For easy and precise installation, the set includes a cutting template for an exact fit, which significantly simplifies installation.

Maximum light output, discreet appearance, and long-lasting durability – perfectly matched to the Ford Transit.

Grille Kit Ford Transit

Product form

Free pickup in our shop(s)

SKU: LL-GK-FT-G2-2K

€720,00 Incl. VAT

    • Perfekte Integration ins Fahrzeugdesign
    • Einfache und saubere Montage
    • Maximale Lichtleistung an optimaler Position
    • Robuste und langlebige Konstruktion
    • Erhöhter Diebstahlschutz
    • 5 Jahre Garantie
      Produktmerkmale
    • Tailored for the Ford Transit (2015-2018)
    • Approved as high beam for road use under UNECE Regulation 112 (Class B High Beam)
    • Installation into the original grille, without needing to remove it from the vehicle
    • Available with: ST4 Evolution high-performance LED spotlights
    • Supplied cutting guides facilitate installation
    • 3D printed brackets made from high-strength, UV-stable, automotive-grade composite material
    • Supplied with appropriate Lazer vehicle wiring harness
    • Installation instructions included
    • 5-year warranty
    • Designed and manufactured in the UK
      Lieferumfang

    x2 LED Spotlights (ST4 Evolution / Triple-R 750)

    • x1 Grille Mounting Kit

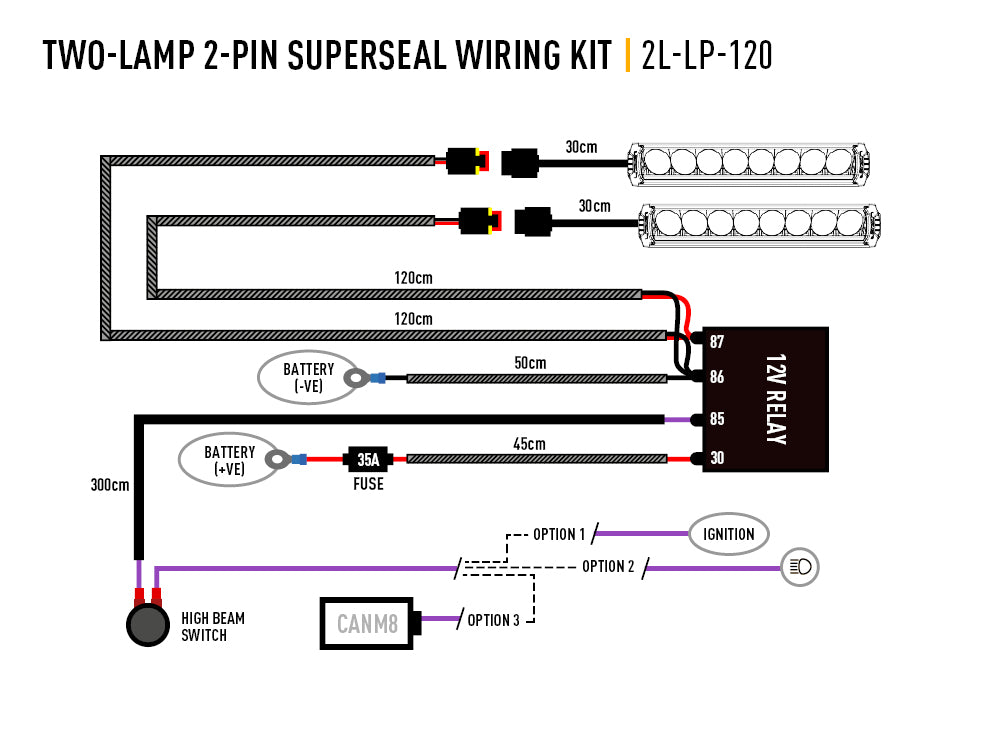

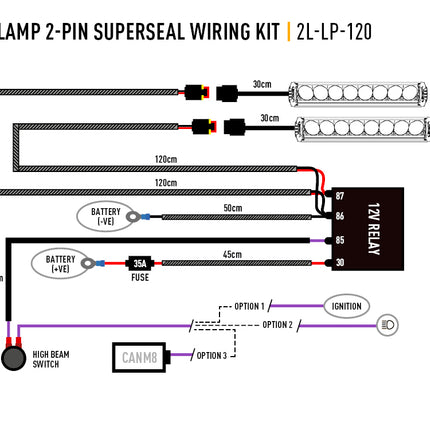

    • x1 Two-Lamp Wiring Harness
    • Instructions
      Downloads
    PDF FT_01_-_Instructions_-_ST4.pdf
    PDF 0004-EVO_Product_Information_Sheet_bd83f374-594d-4d47-98bb-99622e628955.pdf
    PDF FT_02_-_Instructions_-_RRR_G2.pdf

    Description

    For a clean and high-quality retrofit of auxiliary lights, Lazer Lamps offers the vehicle-specific grille integration kit for the Ford Transit. Thanks to specially developed mounting brackets, the powerful LED lights can be quickly and precisely installed in the vehicle's original grille. The integration is so discreet that the Grenadier's original design is completely preserved – ideal for those who value a factory-like appearance.

    In addition to the lights, the kit includes the matching wiring harness and precision-engineered mounting brackets that are optimally adapted to the standard grille. In combination with the included self-tapping plastic screws, a stable and theft-proof mounting is guaranteed.

    Made from a UV-stable and weather-resistant composite material, the brackets guarantee long-lasting and reliable fastening – even under extreme operating conditions.

    For easy and precise installation, the set includes a cutting template for an exact fit, which significantly simplifies installation.

    Maximum light output, discreet appearance, and long-lasting durability – perfectly matched to the Ford Transit.

    Technische Daten
    2x Triple-R 750 2x Triple-R 750 Elite 2x Triple-R 750 Wide 2x Triple-R 750 Beacon 2x ST4 Evolution
    Spannungsbereich (DC) 10-32V 10-32V 10-32V 10-32V 10-32V
    LED-Lebensdauer 50,000 hours 50,000 hours 50,000 hours 50,000 hours 50,000 hours
    Gewicht 2.6 kg 2.6 kg 2.6 kg 2.6 kg 1.34 kg
    Fernlicht-Funktion
    Gesamtlichtstrom 9240 lm 10136 lm 9240 lm 10800 lm 8,272 lm
    Gesamtlichtstrom im Fahrer-Sichtfeld 5572 lm 6680 lm 5266 lm 2484 lm 4,980 lm
    Farbtemperatur 5000K 5000K 5000K 5000K 5000K
    Leistungsaufnahme 88 W 104 W 88 W 104 W 94 W
    Stromaufnahme (14.4 V) 6.2 A 7.2 A 6.2 A 7.4 A 6.6 A
    Anschluss 3-Pin Superseal (+25cm Cable) 2-Pin Superseal (+25cm Cable) 2-Pin Superseal (+25cm Cable) 6-pin Superseal (+25 cm cable) 2-pin Superseal (+25cm cable)
    Zertifizierung
    IP-Bewertung # IP68 IP68 IP68 IP68 IP68
    Fernlicht ECE R112 ECE R112 ECE R149 ECE R149 ECE R149
    EMC-Zertifizierung ECE R10 ECE R10 ECE R10 ECE R10 ECE R10
    Salzsprühtest ISO 9227 ISO 9227 ISO 9227 ISO 9227 ISO 9227
    Dump-Lastschutz ISO 7637-2 ISO 7637-2 ISO 7637-2 ISO 7637-2 ISO 7637-2
    Positionslicht (weiß) ECE R7 ECE R7

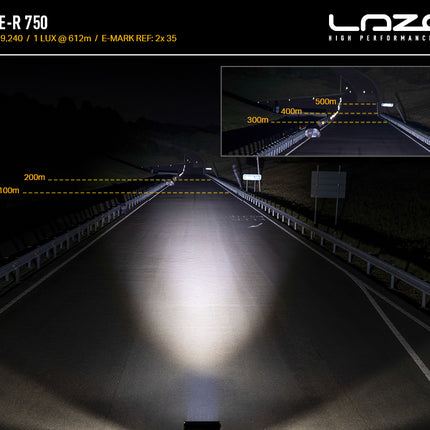

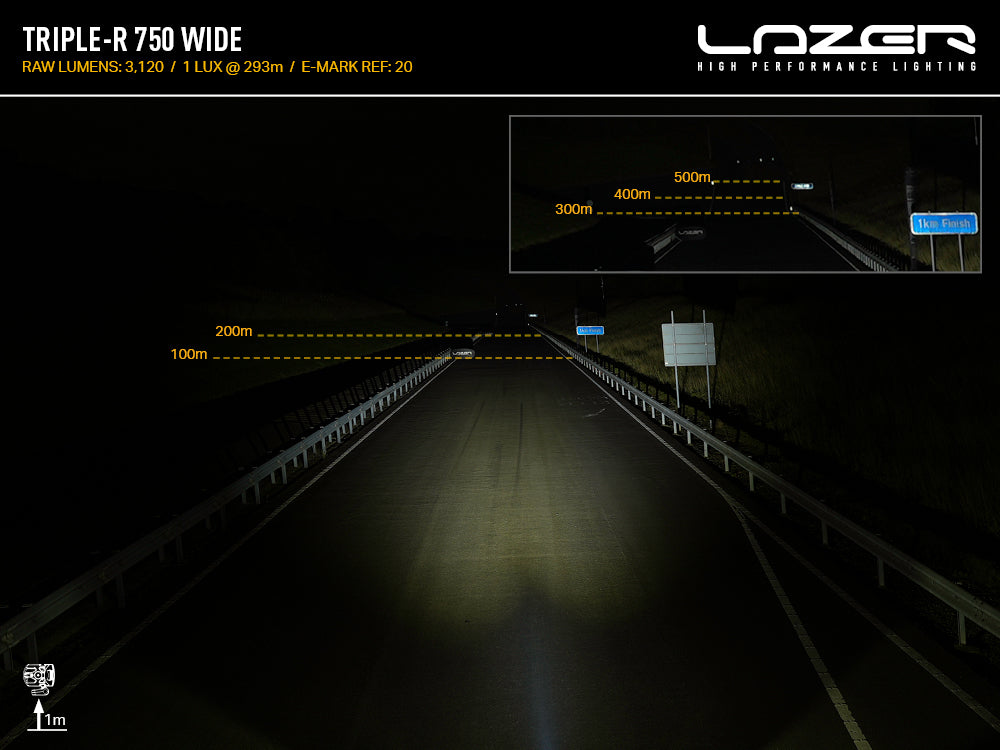

    Lichttechnische Daten

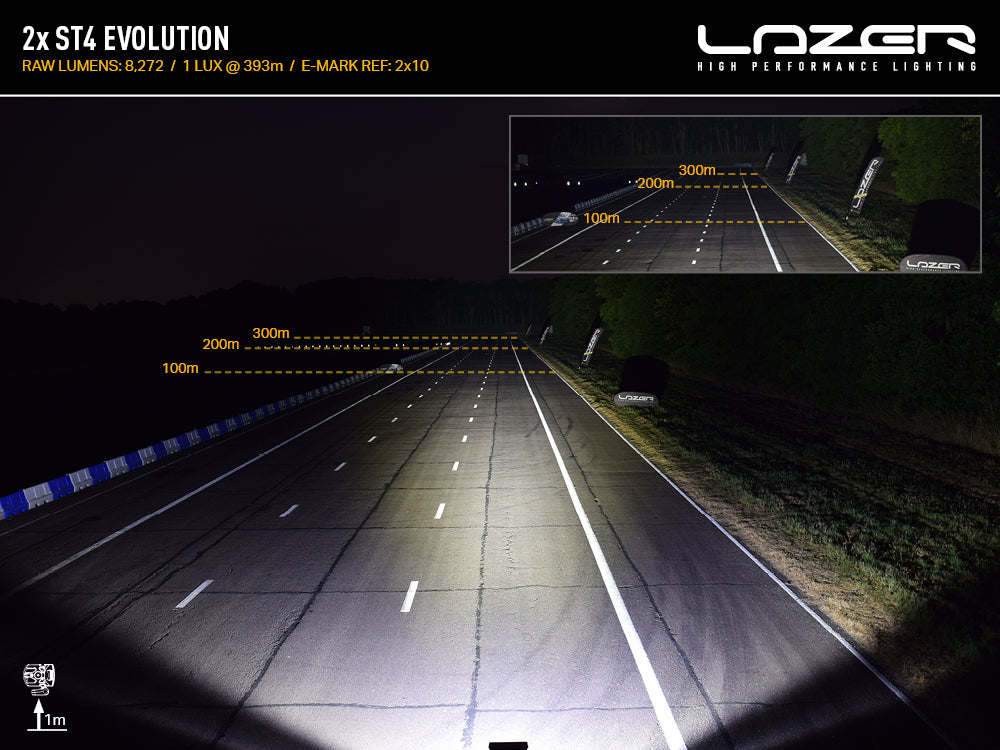

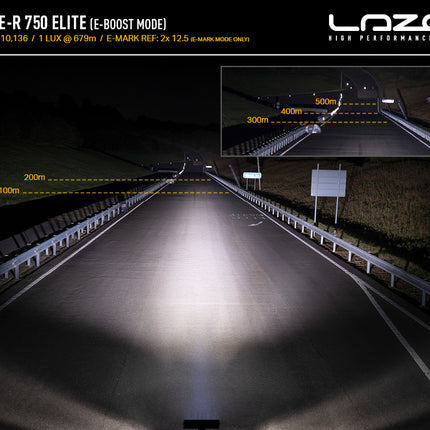

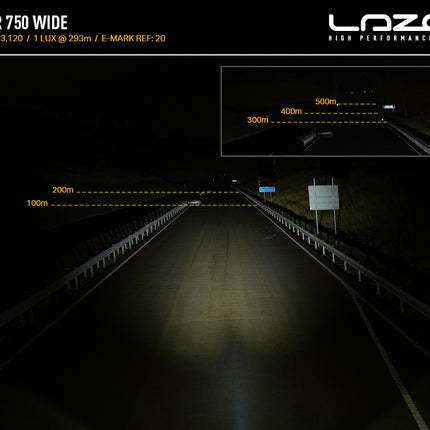

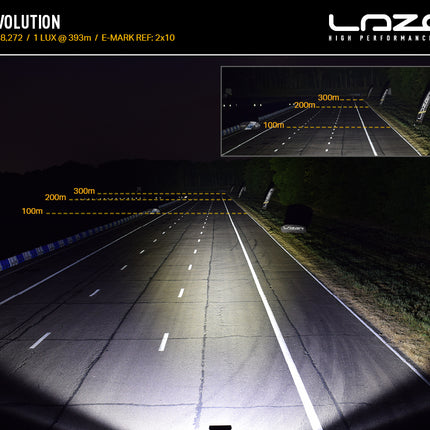

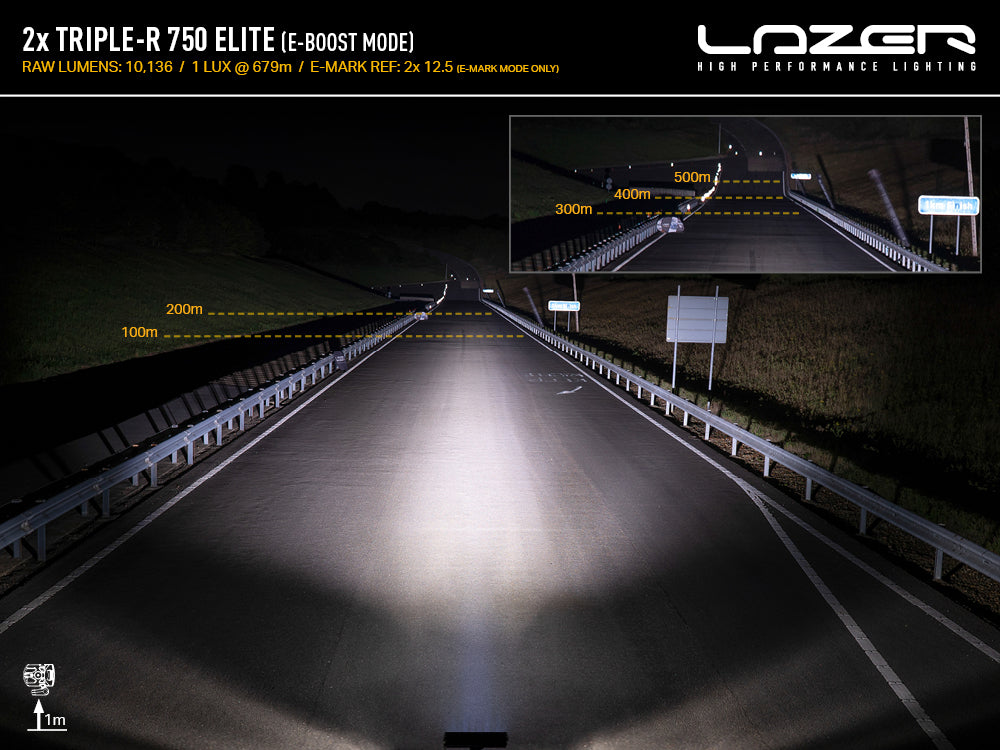

    0.25-Lux-Linie 1225 m 1358 m 829 m 1249 m 786 m
    0.5-Lux-Linie 866 m 960 m 587 m 883 m 555 m
    1-Lux-Linie 612 m 679 m 415 m 624 m 393 m
    3-Lux-Linie 354 m 392 m 239 m 361 m 227 m
