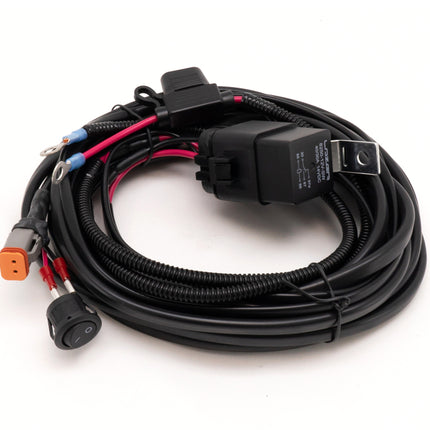

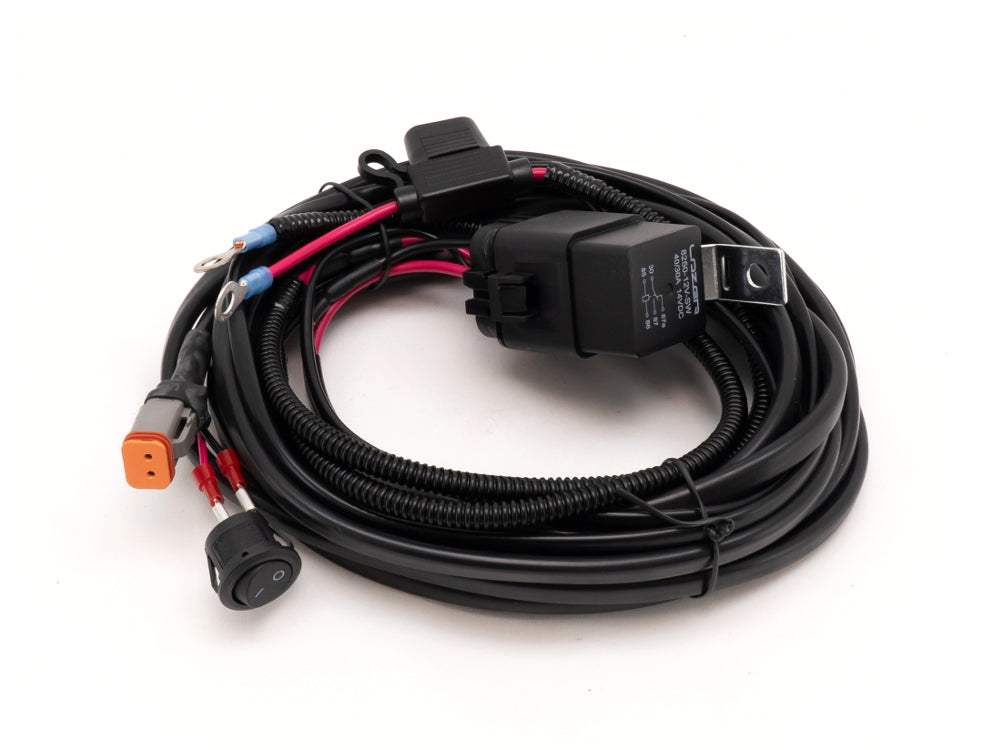

Cable set for single lamp (2-pin, Deutsch DT, 12V)

Description

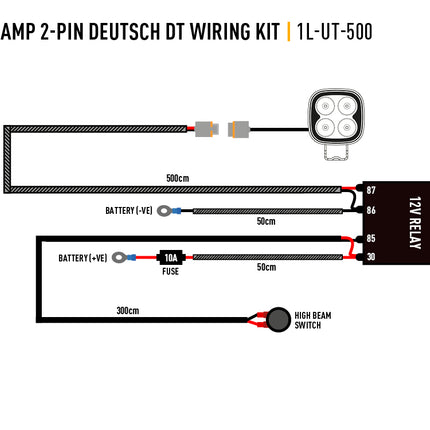

Single-lamp wiring kit for Lazer Lamps high-performance LED headlights. Setup is quick, easy, and reliable thanks to the 2-pin Deutsch connector, requiring no configuration. The kit features a 12V relay (in a waterproof housing), a fuse, a battery clamp at one end, and 5m of flex cable on the headlight cable. It allows you to operate Lazer products either in parallel with the vehicle's Standard lighting and/or via an independent switch that can be mounted in your vehicle.

All Lazer lamps are sold with a pre-wired socket that connects to the lamp harness connector to facilitate wiring to your vehicle's system.

compatible with:

  • Linear-24 Flood
  • Utility-25
  • Utility-25 MAXX
  • Utility-45
  • Utility-50
  • Utility-80 HD (heavy duty)
  • RP Spot

Cable set for single lamp (2-pin, Deutsch DT, 12V)

Product form

SKU: LL-1L-UT-500

Free pickup in our shop(s)

€48,00 €43,20 Incl. VAT

      Produktmerkmale

    Lazer Lamps Single Lamp Cable Set (See product text for compatibility)

    5 m cable length

    Includes 12 V relay and 10 Amp fuse

    Relay holder approved to IP53 when mounted in vertical (upright) orientation

    2-pin Deutsch DT connectors

    With optional on/off switch for independent operation of the high beam

    Braided cable sections for additional protection in the engine compartment

      Downloads
      Passt für
    • Linear-24 Flood
    • Utility-25
    • Utility-25 MAXX
    • Utility-45
    • Utility-50
    • Utility-80 HD
    • RP Spot

    Description

    Single-lamp wiring kit for Lazer Lamps high-performance LED headlights. Setup is quick, easy, and reliable thanks to the 2-pin Deutsch connector, requiring no configuration. The kit features a 12V relay (in a waterproof housing), a fuse, a battery clamp at one end, and 5m of flex cable on the headlight cable. It allows you to operate Lazer products either in parallel with the vehicle's Standard lighting and/or via an independent switch that can be mounted in your vehicle.

    All Lazer lamps are sold with a pre-wired socket that connects to the lamp harness connector to facilitate wiring to your vehicle's system.

    compatible with:

    • Linear-24 Flood
    • Utility-25
    • Utility-25 MAXX
    • Utility-45
    • Utility-50
    • Utility-80 HD (heavy duty)
    • RP Spot
