Description
The single-lamp cable kit is the ideal solution for quick, easy, and reliable connection of Lazer Lamps' high-performance LED spotlights. Thanks to the 3-pin Superseal connector, no configuration is required—simply plug and play.

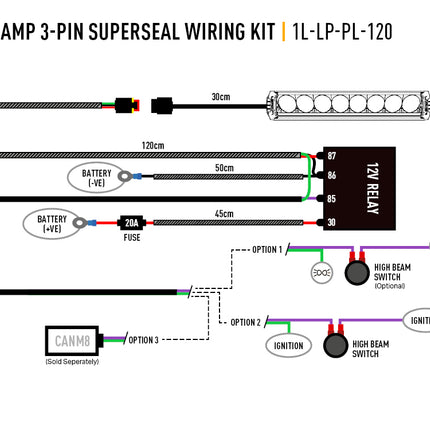

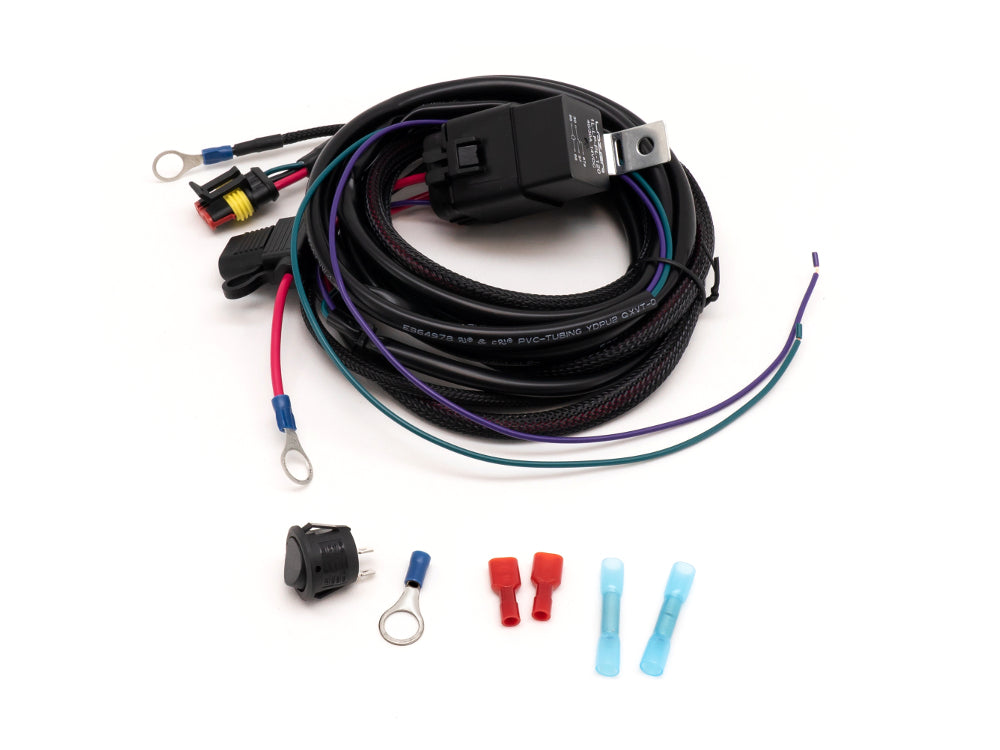

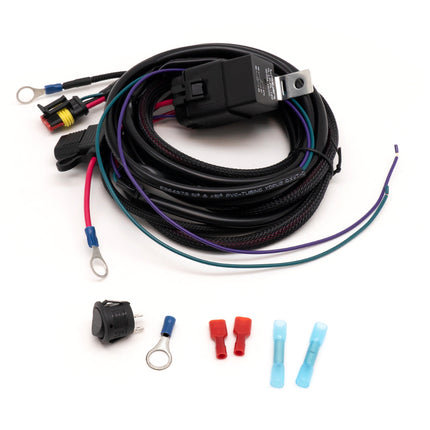

The wiring harness includes a 12V relay in a waterproof housing, a fuse, a connector for the vehicle battery, and a 1.2 m long connection cable for the lamp. The wiring can be configured either in parallel with the Standard vehicle lighting or independently via a separate switch mounted inside the vehicle.
All Lazer headlights come with a pre-assembled female connector that connects directly to the male connector of the wiring harness for easy integration into the vehicle electrical system.
-
- Air-55
- Air-90
- Air-130 Elite
- Glide (with Position Light)
- Glide Elite (with Position Light)
- Triple-R 750 (Gen2)
- Triple-R 850 (Gen2)
- Triple-R 1000 (Gen2)
- Triple-R 1250 (Gen2)
- Linear-12 Elite (with Position Light)
- Linear-18 Elite (with Position Light)
- Sentinel 7'' Elite
- Sentinel 9''
- Sentinel 9'' Chrome
- Sentinel 9'' Highline (with Position Light)
- Sentinel 9'' Elite (with Position Light)
