Description

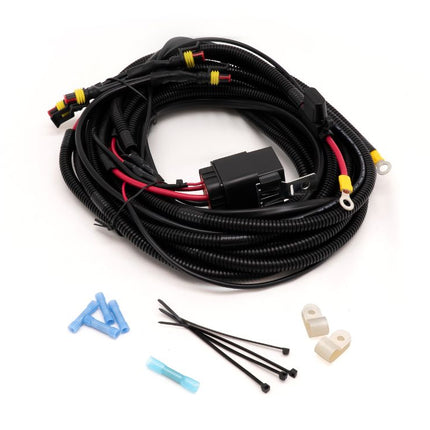

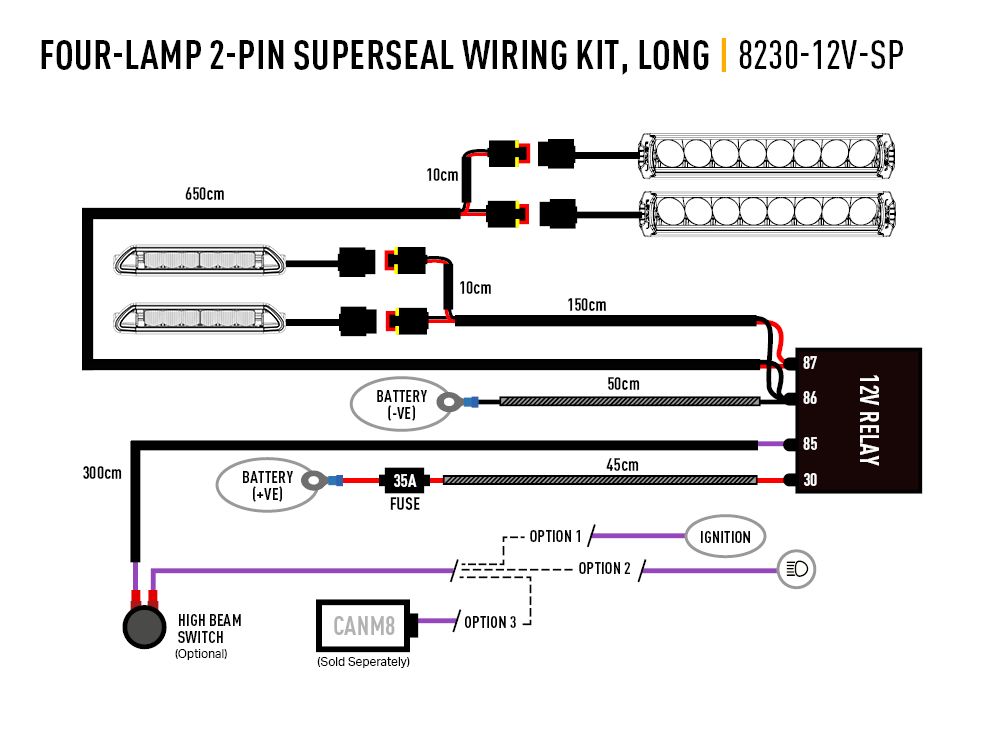

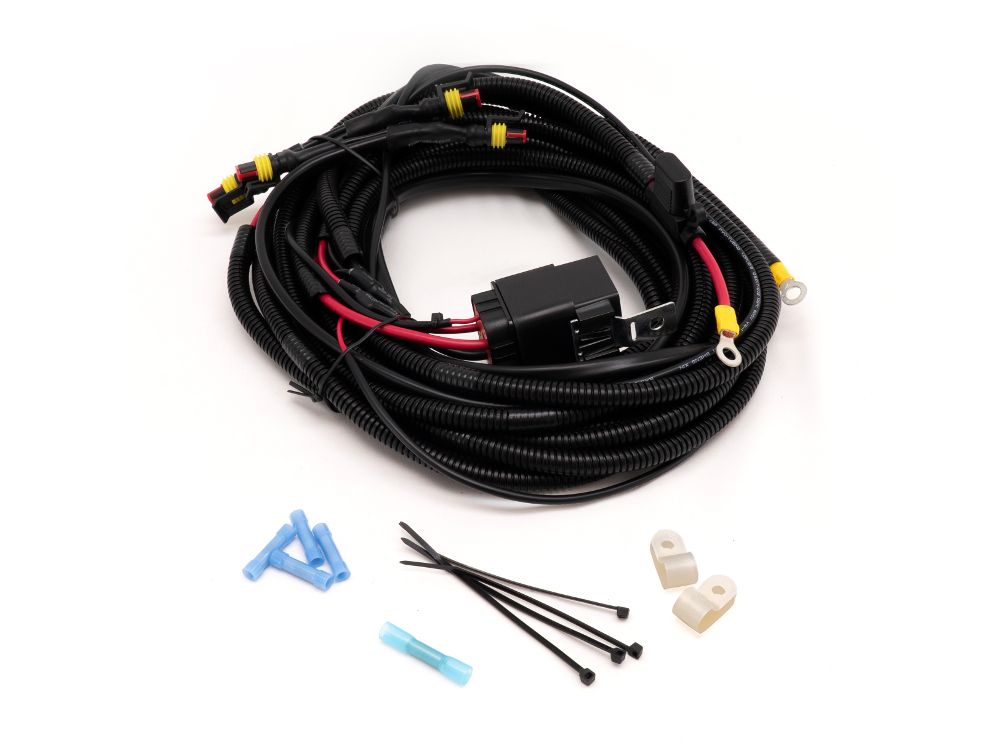

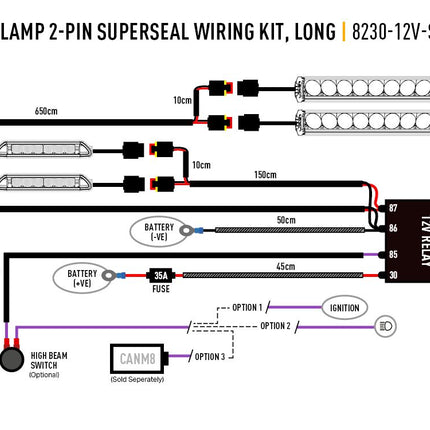

This 4-lamp wiring kit is the perfect solution if you want to connect four Lazer high-performance LED lights – for example, on your pickup truck with two headlights at the front of the vehicle and two additional ones on the roof or roll bar. The plug-and-play system with a 2-pin Superseal connector makes setup easy, reliable, and entirely configuration-free. A 12V relay, a 35A fuse, battery terminals, and two cable harnesses (1.5m and 6.5m) ensure flexible mounting options and enable synchronized operation with your vehicle's high beams.
The system is only suitable for lights without a parking light function. Thanks to the included connectors, the connection to the pre-wired Lazer lamps is quick and clean.
Compatible with:
ST Evolution (all models), Triple-R 750 / 850 / 1000 Elite, Linear-6 / 12 (Standard and Elite), Linear-18 (Standard).
Not suitable for: Triple-R 1250 or Linear-18 Elite.
Note: Use is only recommended for setups with two Triple-R 1000 (or ST8 / Linear-12 Elite) and two Triple-R 750 (or ST4 / Linear-6 Elite).
