Linear-12 Elite with Position Light

Description

The Linear range represents the finest in slimline auxiliary driving lights. It utilizes a combination of highly efficient 3W LEDs and vacuum-metallized, wide-beam optics to deliver a perfectly balanced light distribution for everyday road use. At just 40mm high, the Linear range is an excellent solution when space is limited or when you're looking for a discreet installation that's most noticeable in the dark.

The Linear range is available in a wide range of sizes, from the 232 mm Linear-6 to the 1282 mm Linear-48. With the exception of the range's flagship Linear-48, all Linear products are certified as Class B driving lamps (for on-road use) according to UNECE Regulation 112. Elite products are also available in the Linear-6/12/18 product lines, offering twice the light output of the equivalent Standard version. The Linear-12 Elite and Linear-18 Elite lamps are also available with an integrated sidelight function, providing additional safety and design benefits.

Despite the compact size of Linear products, LED light bars incorporate numerous modern and innovative features to maximize performance and longevity. Because the products are designed, engineered, and manufactured in our UK factory, you can rely on exceptional, high-end product design combined with superior light output, backed by our comprehensive 5-year warranty.

Like all Lazer products, the Linear LED Light Bar was designed, developed, and manufactured in our UK factory. The product is designed for use in harsh environments and is backed by our comprehensive 5-year warranty. Design features such as electronic thermal management, a shatter-resistant hard-coated polycarbonate lens, and a CAE-optimized heatsink ensure you can rely on this product for many years to come.

Linear-12 Elite with Position Light

Product form
Free pickup in our shop(s)

€449,00 Incl. VAT

    • Verdoppelung der Lichtleistung in der Elite-Ausführung
    • Flaches Design für eine vereinfachte Installation
    • „Breite“ Lichtverteilung, perfekt für den Straßenverkehr
    • ECE-Zulassung (mit einigen Ausnahmen)
    • 5 Jahre Garantie
      Produktmerkmale
    • Combination of highly efficient, high-quality 3 W bin LEDs
    • 5000 K LED color temperature and 80 CRI for maximum sharpness and definition
    • Integrated parking light function in white
    • The vacuum-metallized optics provide a wide light distribution
    • Reduced upward/downward light scattering even in low mounting positions or roof mounting
    • Slim, flat design makes installation easier
    • No wind noise in roof installations due to aerodynamic design
    • Flexible mounting options – side brackets with anti-theft protection included
    • Electronic thermal management system optimizes light output to maintain LED longevity
    • Automotive-grade anodized pretreatment and powder coating for ultimate corrosion and chemical protection
    • CAE-optimized heat sink for improved thermodynamics
    • Surge protection
    • Reverse polarity protected
    • Shatter-proof polycarbonate lens with hard coating
    • Approved as high beam for Road Traffic according to UNECE Regulation 112 (Class B high beam)
    • Approved according to UNECE Regulation 10
    • Waterproof according to IP68
    • 5-year warranty
    • Supplied with pre-wired 3-pin Superseal plugs/sockets
    • Designed and manufactured in Great Britain
      Lieferumfang
    • x1 Linear-12 Elite (with parking light) LED light bar
    • x1 Anti-theft side mount bracket kit (1127k)
    • x1 Installation Instructions
      Technische Daten
    Boost Mode Low Output Mode
    Spannungsbereich (DC) 10-32 V
    LED-Lebensdauer 50,000 hours
    Gewicht 0.8 kg
    Fernlicht-Funktion
    Gesamtlichtstrom 8100 lm
    Leistungsaufnahme 84 W
    Stromaufnahme (14.4 V) 5.8 A
    Zertifizierung

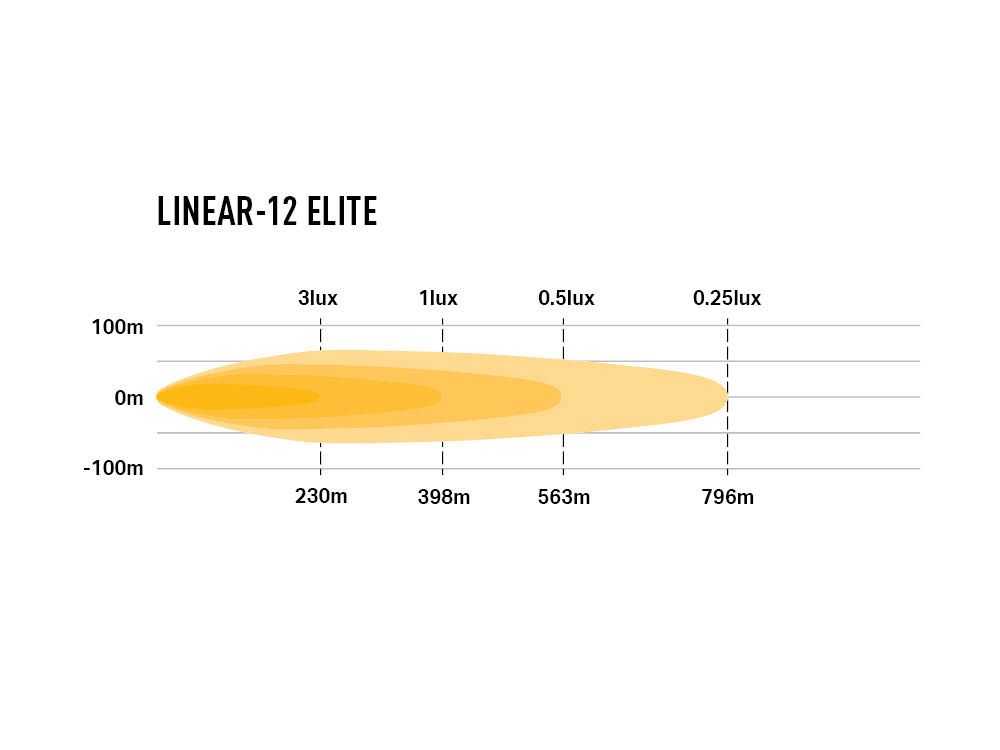

    Lichttechnische Daten

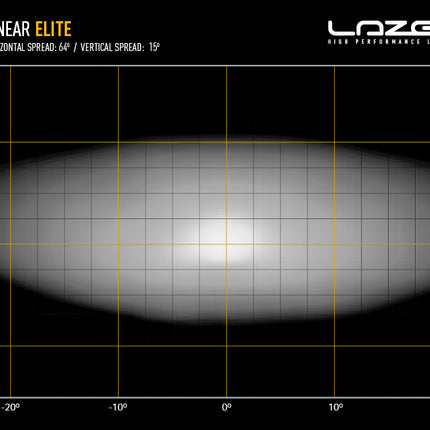

    Horizontaler / vertikaler Abstrahlwinkel 64° 64°

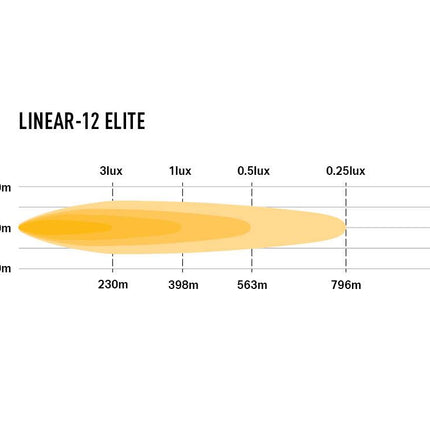

    0.25-Lux-Linie 796 m
    0.5-Lux-Linie 563 m
    1-Lux-Linie 398 m
    3-Lux-Linie 230 m
      Downloads

    Ähnliche Produkte

    Description

    The Linear range represents the finest in slimline auxiliary driving lights. It utilizes a combination of highly efficient 3W LEDs and vacuum-metallized, wide-beam optics to deliver a perfectly balanced light distribution for everyday road use. At just 40mm high, the Linear range is an excellent solution when space is limited or when you're looking for a discreet installation that's most noticeable in the dark.

    The Linear range is available in a wide range of sizes, from the 232 mm Linear-6 to the 1282 mm Linear-48. With the exception of the range's flagship Linear-48, all Linear products are certified as Class B driving lamps (for on-road use) according to UNECE Regulation 112. Elite products are also available in the Linear-6/12/18 product lines, offering twice the light output of the equivalent Standard version. The Linear-12 Elite and Linear-18 Elite lamps are also available with an integrated sidelight function, providing additional safety and design benefits.

    Despite the compact size of Linear products, LED light bars incorporate numerous modern and innovative features to maximize performance and longevity. Because the products are designed, engineered, and manufactured in our UK factory, you can rely on exceptional, high-end product design combined with superior light output, backed by our comprehensive 5-year warranty.

    Like all Lazer products, the Linear LED Light Bar was designed, developed, and manufactured in our UK factory. The product is designed for use in harsh environments and is backed by our comprehensive 5-year warranty. Design features such as electronic thermal management, a shatter-resistant hard-coated polycarbonate lens, and a CAE-optimized heatsink ensure you can rely on this product for many years to come.
