Triple-R 24 Elite

Description

The iconic Triple-R automotive range offers exceptional, long-range LED auxiliary lights. Originally developed for the uncompromising demands of professional racing and rallying, it has since established itself as a firm favorite in the car, 4x4, van, and truck markets—both on- and off-road. The latest additions to the Triple-R range boast innovative features and functionality, including a patent-pending technology never before used in an LED auxiliary light bar.

Triple-R Elite products incorporate an array of highly efficient, high-quality LEDs with a carefully selected color temperature of 5000K and 80 CRI for a high degree of sharpness and clarity, making them our most powerful driving lights. The electronics and optical design combine to deliver incredible long-distance illumination with enviable left/right dispersion. Thanks to the comparatively low upward and downward dispersion of the emitted light, the Elite lights are also suitable for roof mounting, avoiding glare on the hood.

The Standard products feature an integrated (optional) white and/or amber sidelight, further enhancing the design and increasing safety. Combined with a high-quality overall design, you can be sure your Triple-R product will impress even before sunset! High-efficiency 11W LEDs provide impressive long-distance illumination, although visibility to the left and right may not be as high as with the equivalent Elite-class products. The slightly wider up/down spread makes the products suitable for mounting at high altitudes on a vehicle, such as on the cab of a truck or the roof of a van or other light commercial vehicle.

Triple-R products are available in a wide range of sizes, from the 230 mm Triple-R 750 to the 1305 mm Triple-R 28 Elite. All models up to the 590 mm Triple-R 1250 meet the requirements of UNECE Regulation 112 for high beam. In many cases, certification is only achieved with Boost technology, which offers dual light output and allows the lamps to be used in both Boost and ECE-certified modes, depending on country-specific regulations and whether the lamps are used on or off-road.

Like all Lazer high-performance lights, the Triple-R range is designed, developed, and built in our UK factory. So you can be assured of exceptional, high-end product design, coupled with superior light output, all backed by our comprehensive 5-year warranty.

Triple-R 24 Elite

Product form
Free pickup in our shop(s)

€1.149,00 Incl. VAT

    • Optionale Standlichtfunktion in Weiß/Gelb
    • "Spot"-Abstrahlcharakteristik mit maximaler Reichweite
    • Produkte mit ECE-Zulassung (Boost-Technologie)
    • Zeitgemäßes Design
    • 5 Jahre Garantie
      Product features

    Highly efficient LED technologies

    5000 K LED color temperature and 80 CRI for maximum sharpness and definition

    Highly reflective, vacuum-metallized optics for perfectly coordinated light distribution

    High beam approved for road use according to UNECE Regulation 112 (Class B high beam) (Boost technology)

    Modern lamp design

    Includes a set for central and side mounting

    Electronic thermal management system optimizes light output to maintain LED longevity

    Supplied with single lamp cable set

    Improved aero design promotes low wind noise performance

    Automotive-grade anodized pretreatment and powder coating for ultimate corrosion and chemical protection

    CAE-optimized heat sink for improved thermodynamics

    Surge protection

    Reverse polarity protected

    Shatter-proof polycarbonate lens with hard coating

    Approved according to UNECE Regulation 10

    Waterproof according to IP68

    5-year warranty

    Supplied with pre-wired 2-pin Superseal plugs/sockets

    Designed and manufactured in Great Britain

      Scope of delivery
    • x1 Triple-R 24 Elite LED bulb
    • x3 bracket set for center mounting (1114k)
    • x1 bracket set for side mounting (1118k)
    • x1 Single-lamp cable set (1L-HP-300)
    • x1 Installation Instructions
      Technische Daten
    Boost Mode Low Output Mode
    Spannungsbereich (DC) 10-32 V
    LED-Lebensdauer 50,000 hours
    Gewicht 4.5 kg
    Fernlicht-Funktion
    Gesamtlichtstrom 27,060 lm
    Gesamtlichtstrom im Fahrer-Sichtfeld 17,833 lm
    Farbtemperatur 50,000 k
    Anzahl Hochleistungs-LEDs 24
    Leistungsaufnahme 312 W
    Stromaufnahme (14.4 V) 21.7 A
    Zertifizierung
    Lichttechnische Daten

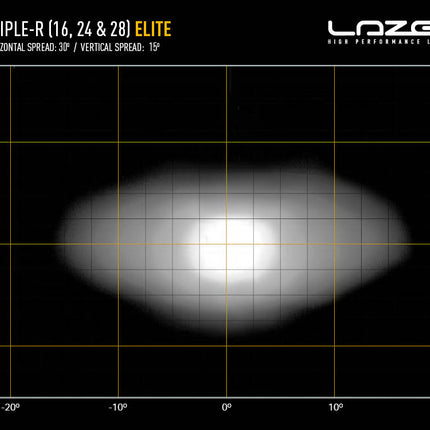

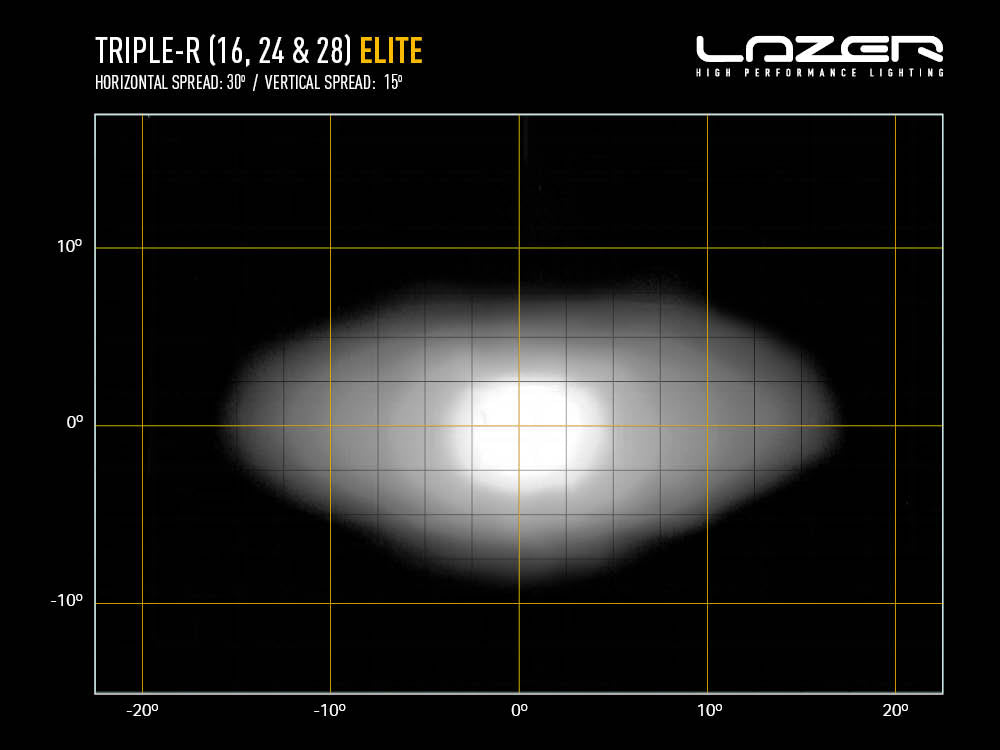

    Horizontaler Abstrahlwinkel 30° 30°

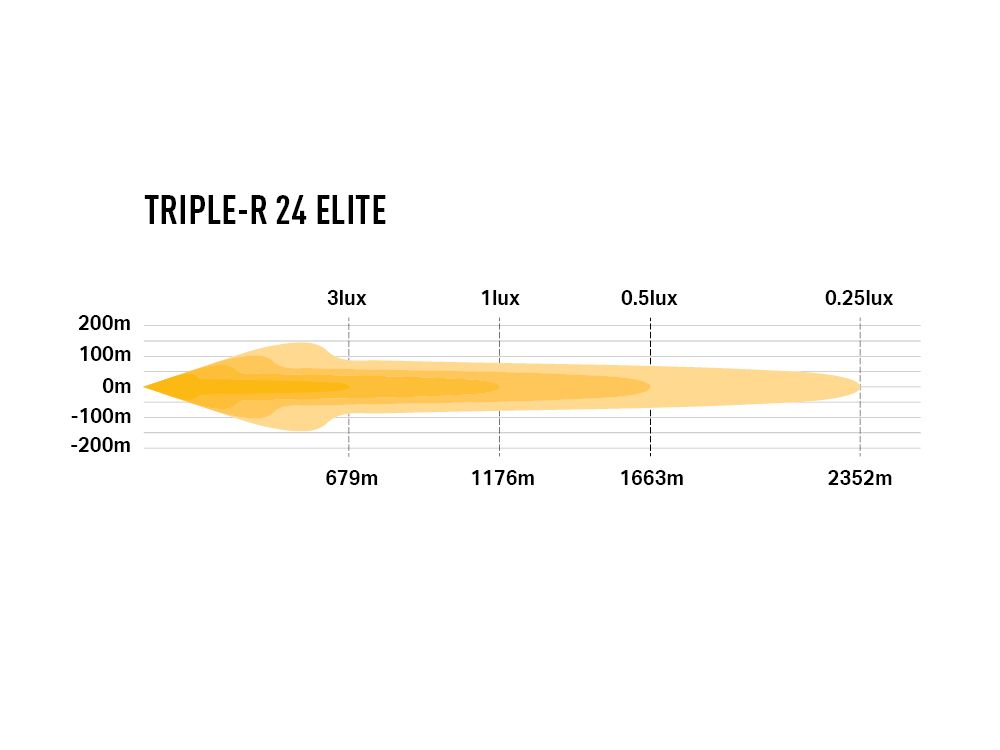

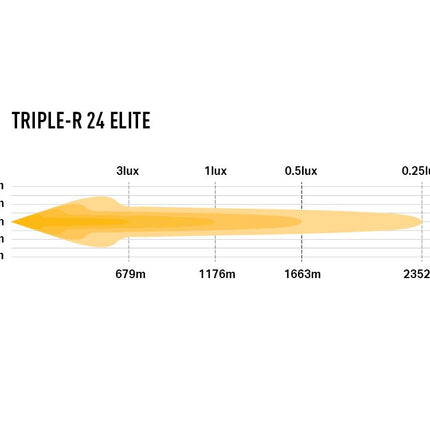

    0.25-Lux-Linie 2352 m
    0.5-Lux-Linie 1663 m
    1-Lux-Linie 1176 m
    3-Lux-Linie 679 m
      Downloads

    Matching cable sets

    Description

    The iconic Triple-R automotive range offers exceptional, long-range LED auxiliary lights. Originally developed for the uncompromising demands of professional racing and rallying, it has since established itself as a firm favorite in the car, 4x4, van, and truck markets—both on- and off-road. The latest additions to the Triple-R range boast innovative features and functionality, including a patent-pending technology never before used in an LED auxiliary light bar.

    Triple-R Elite products incorporate an array of highly efficient, high-quality LEDs with a carefully selected color temperature of 5000K and 80 CRI for a high degree of sharpness and clarity, making them our most powerful driving lights. The electronics and optical design combine to deliver incredible long-distance illumination with enviable left/right dispersion. Thanks to the comparatively low upward and downward dispersion of the emitted light, the Elite lights are also suitable for roof mounting, avoiding glare on the hood.

    The Standard products feature an integrated (optional) white and/or amber sidelight, further enhancing the design and increasing safety. Combined with a high-quality overall design, you can be sure your Triple-R product will impress even before sunset! High-efficiency 11W LEDs provide impressive long-distance illumination, although visibility to the left and right may not be as high as with the equivalent Elite-class products. The slightly wider up/down spread makes the products suitable for mounting at high altitudes on a vehicle, such as on the cab of a truck or the roof of a van or other light commercial vehicle.

    Triple-R products are available in a wide range of sizes, from the 230 mm Triple-R 750 to the 1305 mm Triple-R 28 Elite. All models up to the 590 mm Triple-R 1250 meet the requirements of UNECE Regulation 112 for high beam. In many cases, certification is only achieved with Boost technology, which offers dual light output and allows the lamps to be used in both Boost and ECE-certified modes, depending on country-specific regulations and whether the lamps are used on or off-road.

    Like all Lazer high-performance lights, the Triple-R range is designed, developed, and built in our UK factory. So you can be assured of exceptional, high-end product design, coupled with superior light output, all backed by our comprehensive 5-year warranty.
