Glide-18

Description

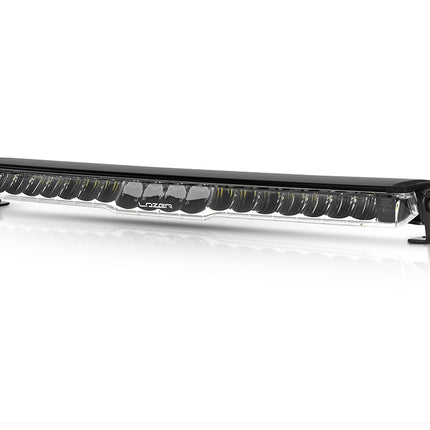

Introducing Glide, the world's first "molded" LED light bar. Featuring a monocoque lens construction that provides highly weight-efficient inherent strength and robustness, Glide is a series of 20" curved light bars that boast an ultra-slim design. Its enviable balance between exceptional light output and OE-quality aesthetics, blending harmoniously with the front contours of a wide variety of vehicle makes, models, and makes Glide an exceptional choice, particularly in the passenger car and light commercial vehicle sectors.

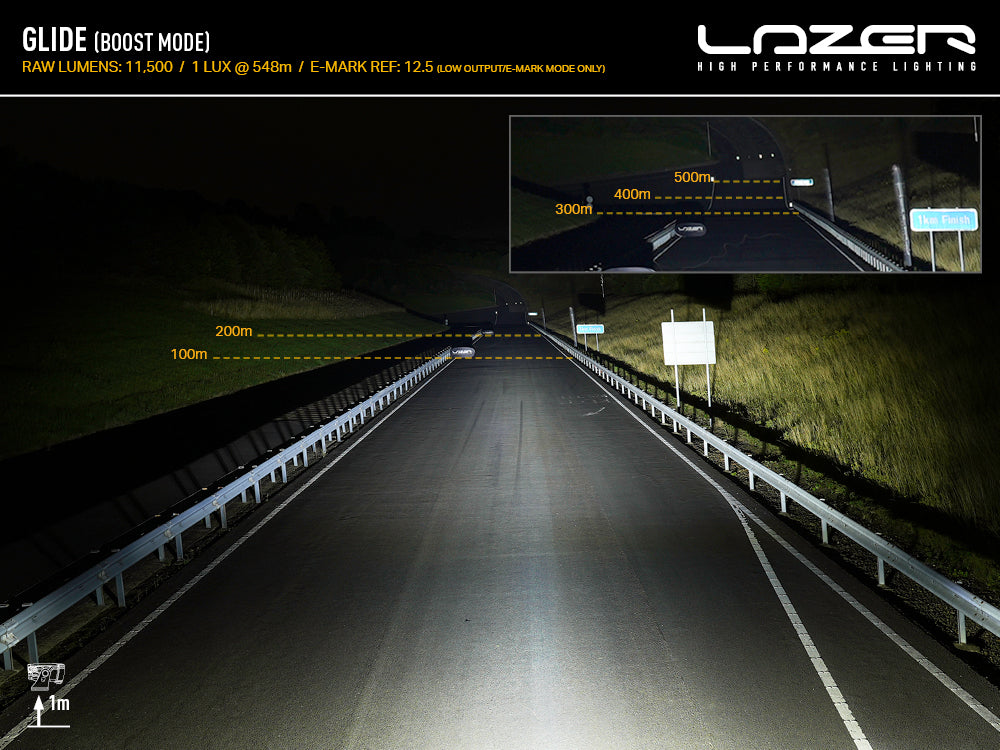

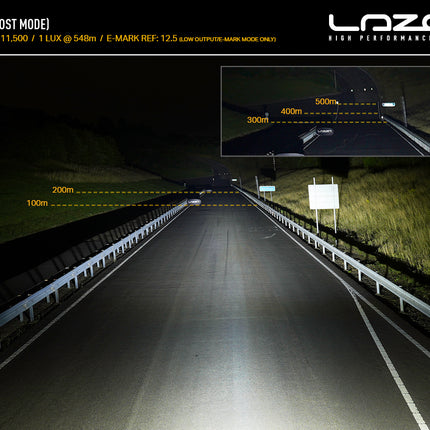

The "Standard" Glide products offer incredible value considering their design, performance, and build quality. At their core, 18 premium bin LEDs work in conjunction with the vacuum-metallized optical system to deliver just over 11,000 raw lumens with strong long-distance illumination (1 lux @ 548 m) and a 60-degree horizontal beam spread.

Each Glide lamp features a Dynamic Dip mode, providing a smooth transition between high and low output modes. The low output mode allows for riding in compliance with UNECE Regulation 149 (double E-marking) where required by local law, and/or a reduced output level that, for example, reduces glare from highly reflective surfaces like large road signs. The Dynamic Dip function is activated after the light has been on for more than 2 seconds by simply and quickly turning the light off and back on.

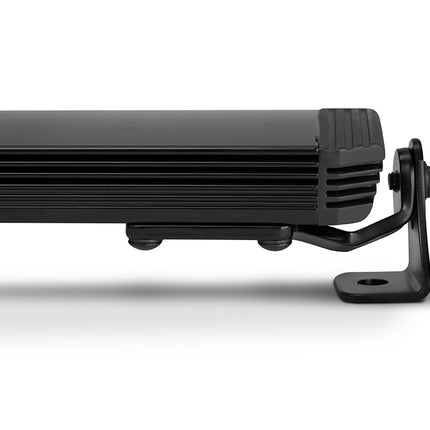

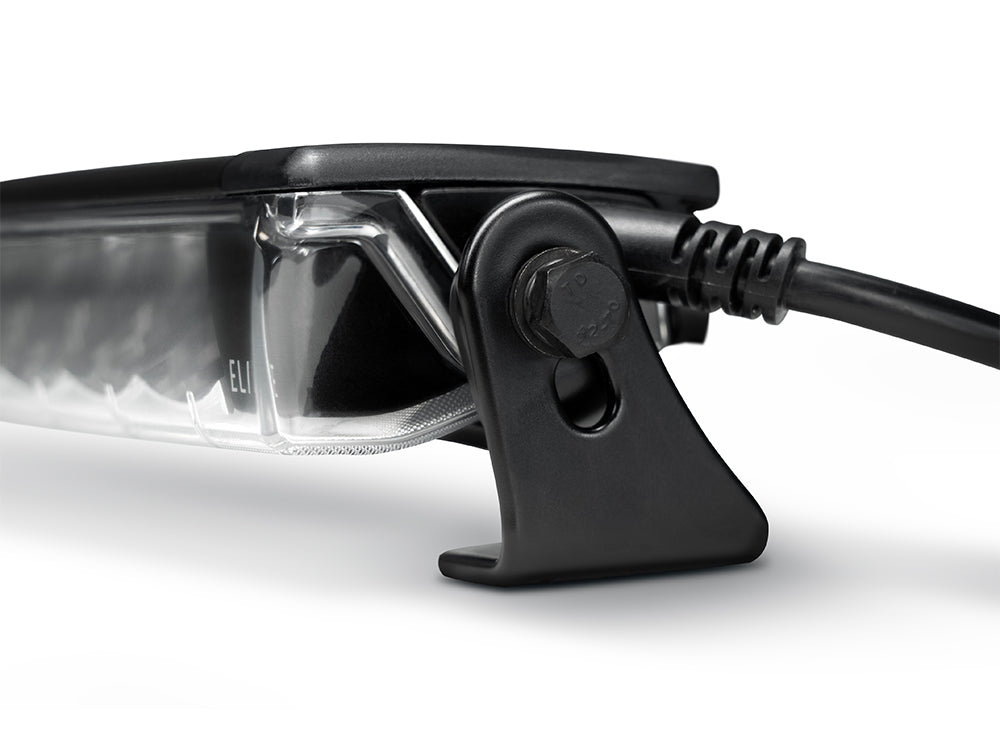

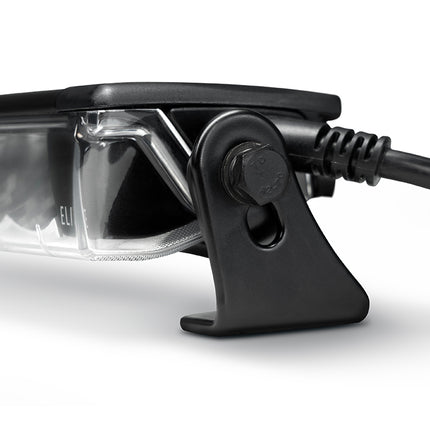

Each lamp comes with a side-mounting kit, while additional mounting options are available to customize your installation—choose between a license plate bracket or, for added security, an anti-theft side-mounting kit. For below-the-license-plate installations, the side-mounting kit should be used in conjunction with our universal license plate mounting kit (sold separately).

The Glide series of low-profile molded light bars, like all Lazer LED lighting solutions, are engineered and manufactured to unparalleled standards and are equipped with advanced and innovative features to maximize performance and longevity. With Glide, you can be confident in exceptional, high-end product design combined with superior illumination levels, all backed by our comprehensive 5-year warranty.

Glide-18

Product form
Free pickup in our shop(s)

€382,00 Incl. VAT

    • Niedriges Profil und gebogenes Design für eine nahtlose Installation
    • Optimiertes „Combo“-Strahlmuster, perfekt für den Straßengebrauch
    • Dynamische Abblendfunktion, einfaches Umschalten zwischen Hoch- und Niedrigmodus
    • 5 Jahre Garantie
    • 5 Jahre Garantie
      Produktmerkmale
    • Molded light bar with injection-molded monocoque lens construction
    • Curved and ultra-slim lamp design facilitates OE-quality vehicle installation
    • Patent application for lamp design
    • Integration of the latest high-performance “Premium Bin” LEDs
    • Combined vacuum-metallized spot and wide-angle optics systems provide optimal light distribution
    • Dynamic Dip function for transition between high and low output modes
    • UNECE approved Reg 149 (Class B driving light) for road use – low output mode only
    • Use of black circuit boards for a modern and unobtrusive appearance
    • “Unbreakable” polycarbonate lens with hard coating (with lifetime warranty*)
    • Textured effect on the underside of the polycarbonate lens for a unique aesthetic appearance
    • 5000K LED color temperature and high 80CRI maximize sharpness and definition
    • Supplied with side mounting kit or license plate mounting kit – security fixing kit also available
    • Electronic thermal management system optimizes light output to maintain LED longevity
    • Internal pretreatment and automotive-grade powder coating for ultimate corrosion and chemical protection
    • Surge protection
    • Reverse polarity protection
    • UNECE approved Reg 10
    • IP68 waterproof – 1.5m immersion (30 minutes)
    • 5-year warranty

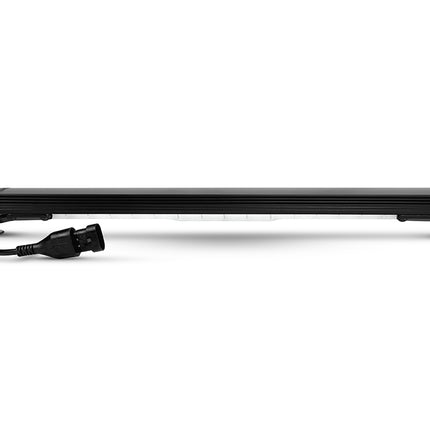

    • 25 cm lamp cable with included male/female 2-pin Superseal connectors
    • Designed and manufactured in Great Britain
      Lieferumfang
    • Glide LED light bar
    • Side mounting kit (1131K)
    • Installation instructions
      Technische Daten
    Boost Mode Low Output Mode
    Spannungsbereich (DC) 10-32 V 10-32 V
    LED-Lebensdauer 50,000 hours 50,000 hours
    Gewicht 0.68 kg 0.68 kg
    Fernlicht-Funktion
    Gesamtlichtstrom 11,500 lm 4,025 lm
    Gesamtlichtstrom im Fahrer-Sichtfeld 6,958 lm 2,435 lm
    Farbtemperatur 5000 k 5000 k
    Leistungsaufnahme 120 W 42 W
    Stromaufnahme (14.4 V) 8.3 A 2.3 A
    Anschluss 2-pin Superseal (+25cm cable) 2-pin Superseal (+25cm cable)
    Abmessungen
    Breite 517 mm 517 mm
    Tiefe 71 mm 71 mm
    Höhe 39 mm 39 mm
    Zertifizierung
    IP-Bewertung # IP68 IP68
    Fernlicht ECE R149 (double E-marking) - Ref: 2x 12.5 (Low Output mode only)
    Salzsprühtest ISO 9227 ISO 9227
    Dump-Lastschutz ISO 7637-2 ISO 7637-2
    EMC-Schutz ECE R10 ECE R10

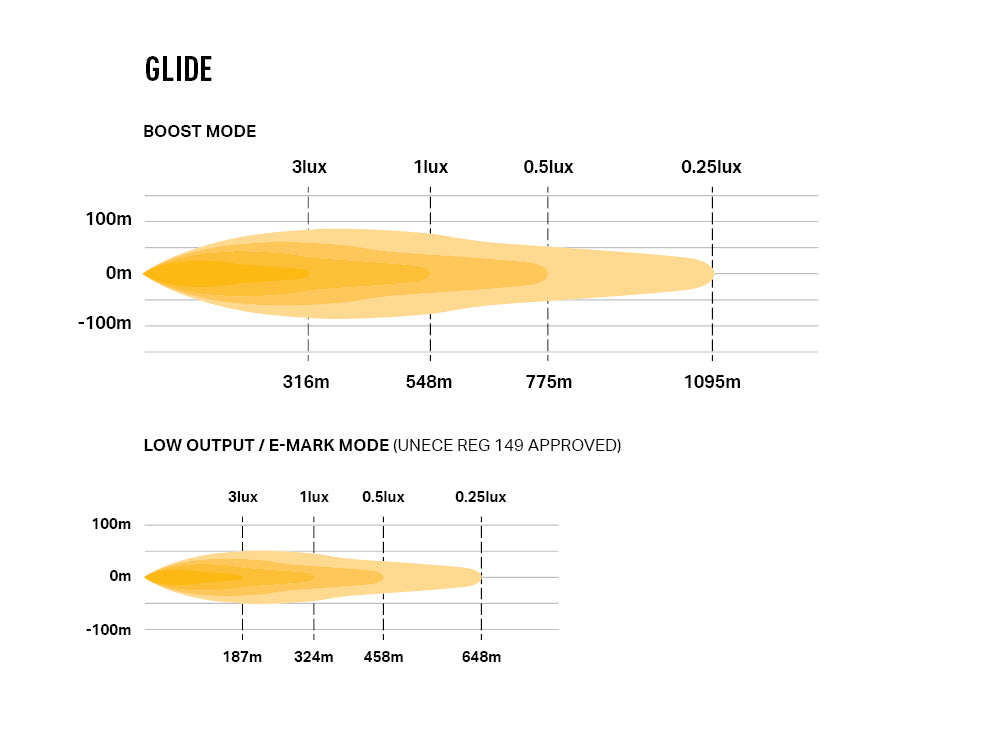

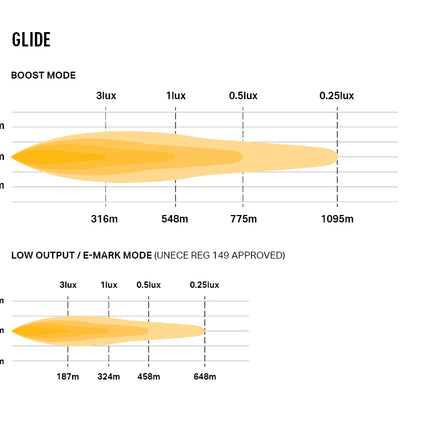

    Lichttechnische Daten
    Horizontaler / vertikaler Abstrahlwinkel 60° / 13° 60° / 13°
    0.25-Lux-Linie 1095 m 648 m
    0.5-Lux-Linie 775 m 458 m
    3-Lux-Linie 316 m 187 m
      Downloads
    PDF ECE_Reg_148_-_Certificate_-_for_Glide_with_PL_502b28df-de1b-4508-b5c0-8cff886d5e14.pdf
    PDF ECE_Reg_149_-_Certificate_-_for_Glide_e7f9e389-b9fe-4651-90ea-fe1fabe1b1f9.pdf
    PDF Glide_-_Tech_Specs_3d744c99-1306-456f-a3c8-2cc119bf35a8.pdf
    PDF Glide_-_Annotated_Diagram_Blk_02315b53-8b58-41f3-b923-b9699c6e42e1.pdf
    PDF Glide_-_Annotated_Diagram_Wht_7e3c4aee-6450-4734-ba17-e8c3ede6937a.pdf
    PDF Glide-Product-Info-Card_9fe51eb0-8888-4a4b-879d-c426a5803d10.pdf
