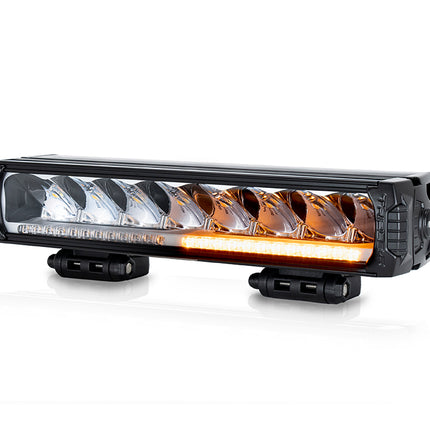

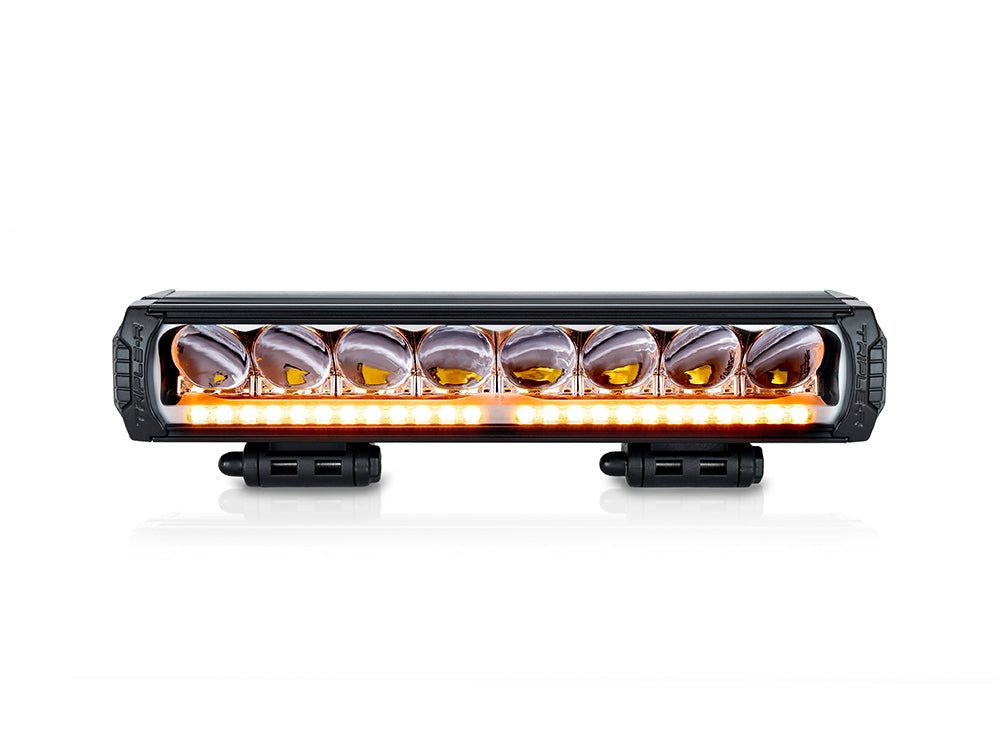

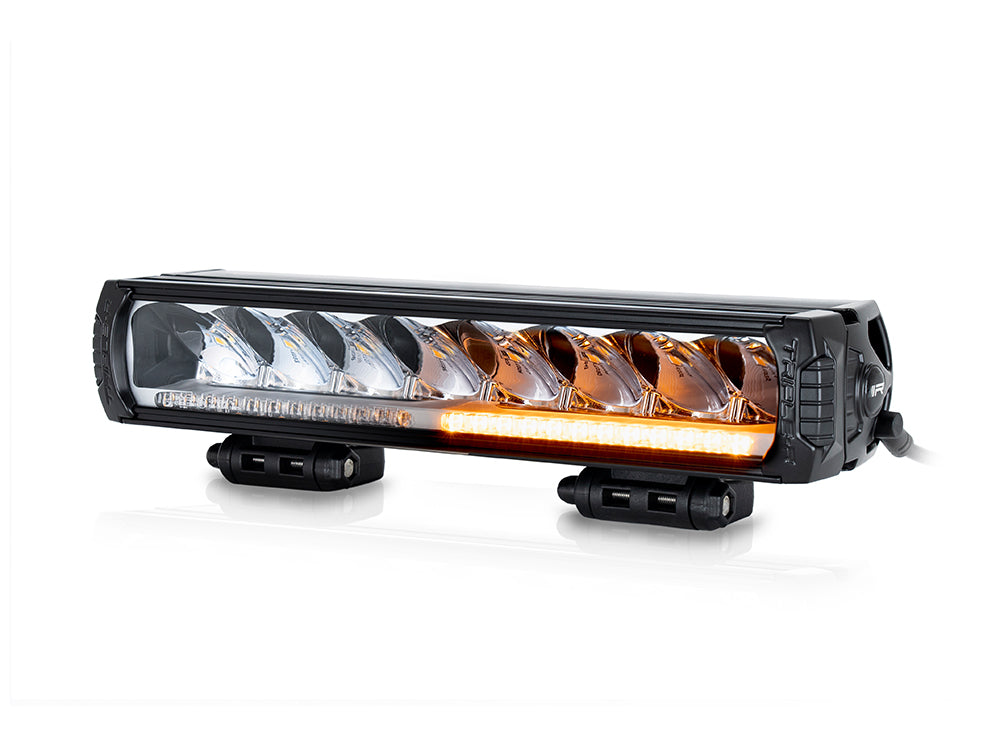

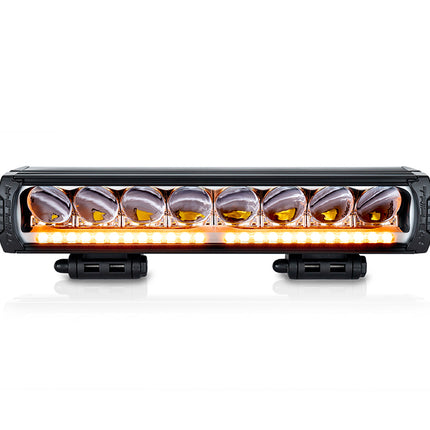

Triple-R 1000 with Beacon and Position Light

Description

The Triple-R 1000 – a firm favorite in the heavy truck and van sector – is available with an integrated amber flashing light offering 16 different flashing patterns. Additionally, there's the option of connecting a white or amber side/parking light function.

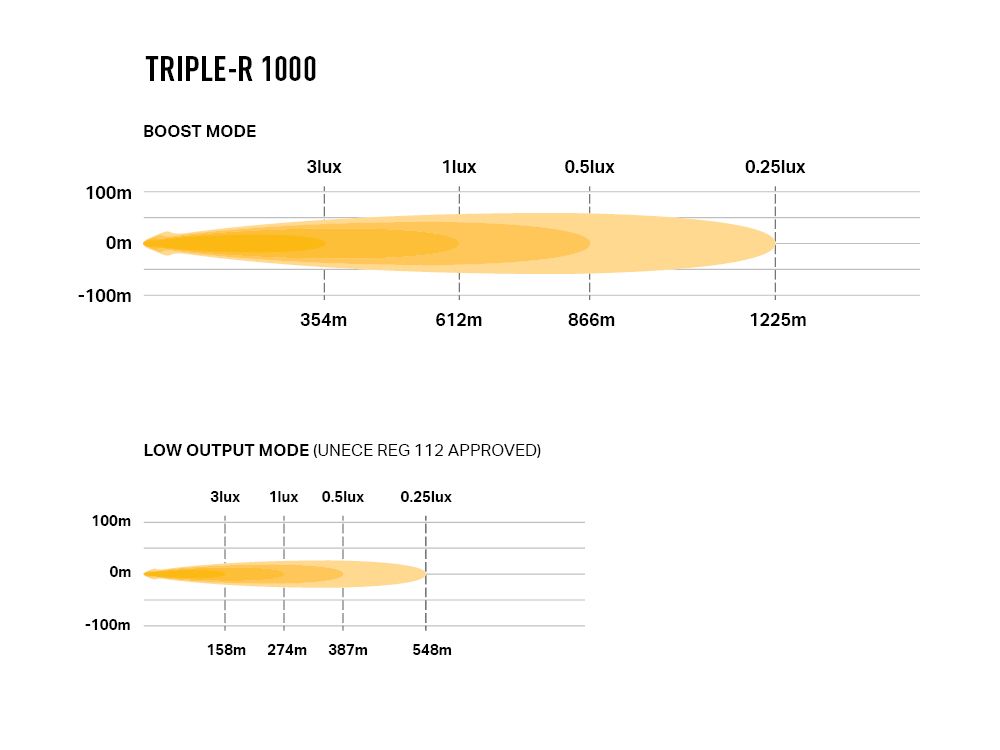

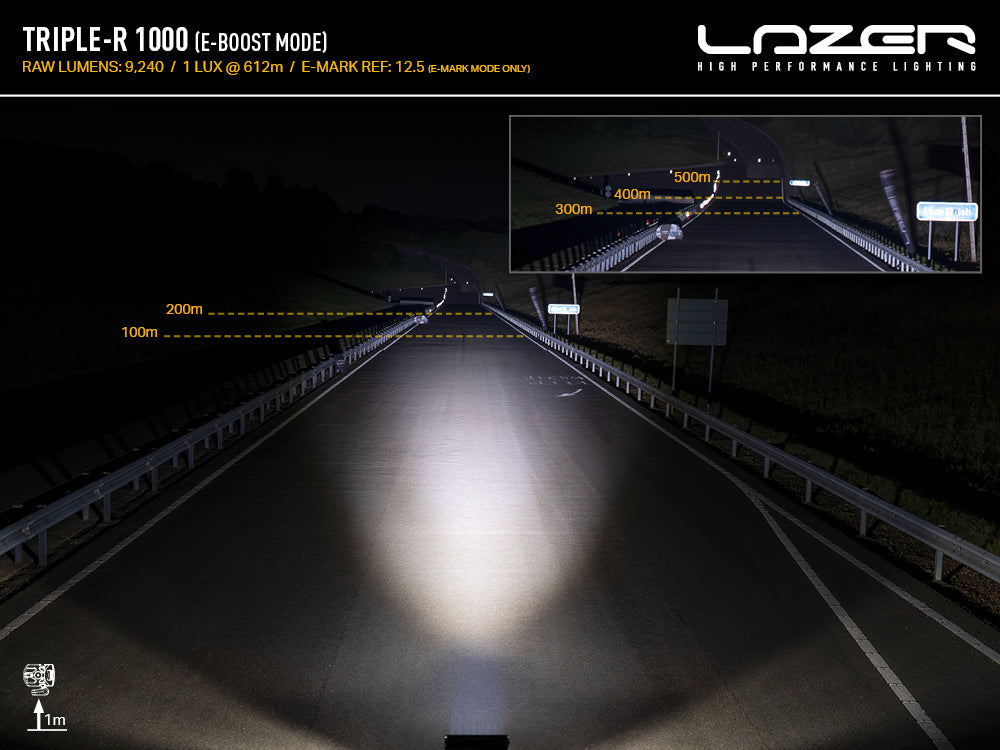

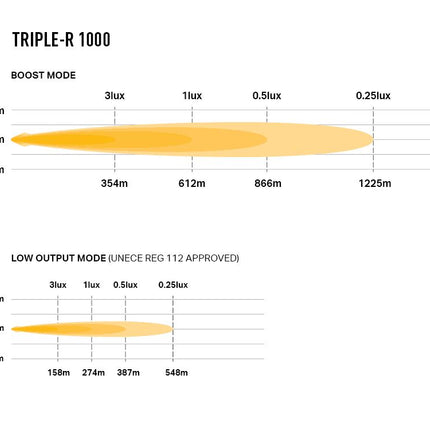

The Triple-R 1000 high-performance spotlight offers a roadworthy "spot" beam pattern with 9,240 lumens and a light intensity of 1 lux at 612 m (Boost mode). The LED auxiliary spotlight provides improved light distribution to the left and right without compromising upward and downward dispersion, making the spotlights suitable for a wide range of vehicles. The "Boost" technology with double the light output enables on-road use under ECE Regulation 112.

The parking light function (white only) is approved according to ECE Regulation 7 and can be operated in parallel with the Standard vehicle lights. To select the white or amber parking light, simply connect the corresponding cable during installation – or you can leave the two separate to use the headlight only as a high beam.

16 different settings for the yellow warning light can be selected and synchronized (between multiple lamps) during installation; a switch allows the flashing pattern to be changed as needed.

As with all Triple-R products, the exceptional design of the lights is complemented by our UK-based manufacturing. This ensures the product will continue to look and perform well for years to come – all backed by a comprehensive 5-year warranty. An all-aluminum housing, an advanced breathable Gore-Tex silicone membrane, and a polycarbonate lens (with a lifetime warranty) are just a few features that make the light ideal for even the harshest environments.

Triple-R 1000 with Beacon and Position Light

Product form
Free pickup in our shop(s)

€599,00 €539,10 Incl. VAT

    • Optionale Standlichtfunktion in Weiß/Gelb
    • "Spot"-Abstrahlcharakteristik mit maximaler Reichweite
    • Produkte mit ECE-Zulassung (Boost-Technologie)
    • Zeitgemäßes Design
    • 5 Jahre Garantie
      Product features
    • Highly efficient 11 W LED technology
    • Integrated yellow flashing light function – 16 flashing patterns (including option according to UNECE Regulation 65 - XA1)
    • Integrated parking light function in white and yellow
    • Highly reflective, vacuum-metallized optics for spot light distribution
    • High beam approved for road use according to UNECE Regulation 112 (Class B high beam) (E-Boost technology) and parking light function approved according to Regulation 7 (white only)
    • Modern lamp design – color options black or white
    • Includes a versatile center-mount system and integrated side-mount capabilities (mounts sold separately)
    • Electronic thermal management system optimizes light output to maintain LED longevity
    • Automotive-grade anodized pretreatment and powder coating for ultimate corrosion and chemical protection
    • CAE-optimized heat sink for improved thermodynamics
    • Surge protection
    • Reverse polarity protected
    • Shatter-proof polycarbonate lens with hard coating
    • Supplied with pre-wired 6-pin Superseal plugs/sockets
      Scope of delivery

    x1 Triple-R 1000 Beacon LED lamp

    • x2 bracket set for center mounting (1114k)
    • x1 Installation Instructions
      Technische Daten
    Boost Mode Low Output Mode
    Spannungsbereich (DC) 10-32V
    LED-Lebensdauer 50,000 hours
    Gewicht 1.7 kg
    Fernlicht-Funktion
    Gesamtlichtstrom 9240 lm 1848 lm
    Gesamtlichtstrom im Fahrer-Sichtfeld 5572 lm 1114 lm
    Farbtemperatur 5000 k
    Anzahl Hochleistungs-LEDs 8
    Leistungsaufnahme 88 W 17.6 W
    Stromaufnahme (14.4 V) 6.1 A 1.2 A
    Zertifizierung
    IP-Bewertung # IP68
    Fernlicht ECE R112
    Salzsprühtest ISO 9227 (2000H)
    Positionslicht (weiß) ECE R7 ECE R7
    Lichttechnische Daten
      Downloads
    PDF Triple-R_1000_Beacon_-_Tech_Specs_059ea6be-3f0e-4ed1-bd9c-48d84fc872f9.pdf
    PDF Beacon_Instructions_ab34bba0-e09a-4166-bd5c-e2dc39379c41.pdf
    PDF ECE_Reg_65_-_Certificate_-_Triple-R_1000_Beacon_b8fa5bae-ef7a-47d3-bd96-827f82c7ff39.pdf
    PDF ECE_Reg_7_-_Certificate_-_Triple-R_1000_Beacon_d675708c-41ae-4863-a6b5-657827abd16b.pdf

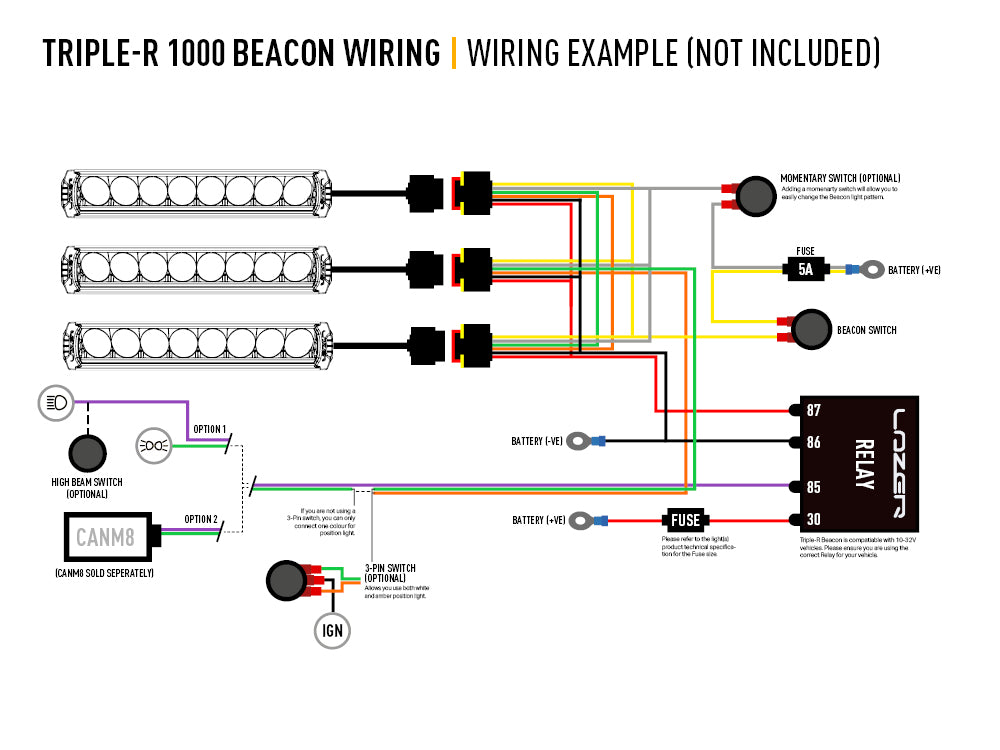

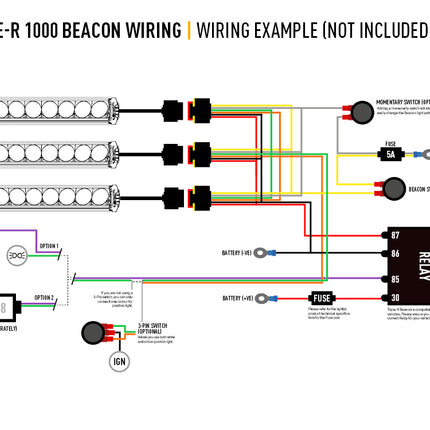

    PDF Triple-R_1000_Gen2_With_Beacon_-_Wiring_Diagram_491b26cc-e533-4ec5-9248-d16a82583c08.pdf
    PDF Triple-R_Gen2_-_Reg10_9e9ba4af-ba72-42f8-b1d3-5e2d79719e71.pdf
    PDF ECE_Reg_112_-_Certificate_-_Triple-R_1000_Beacon_9691be54-5600-44ff-b019-93997515086f.pdf
