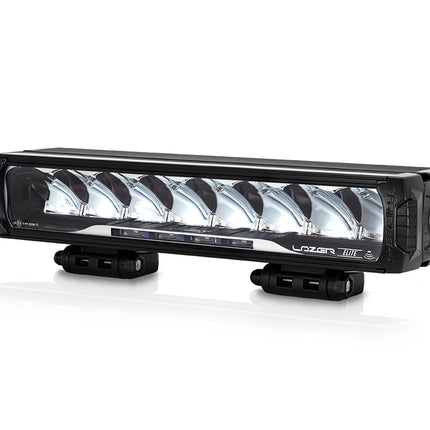

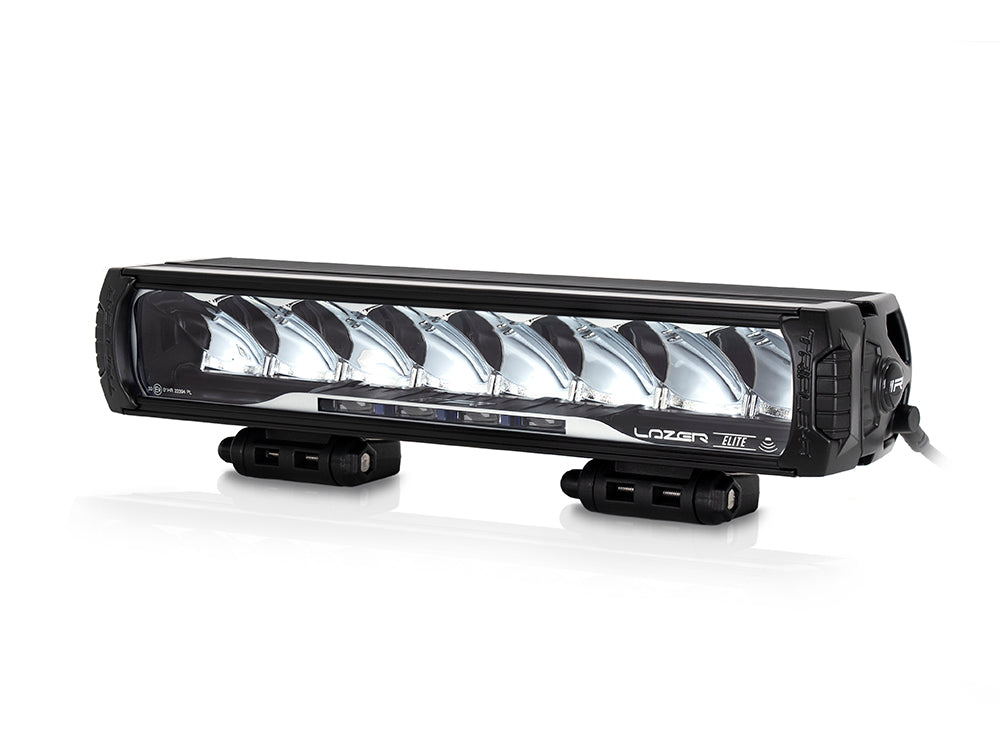

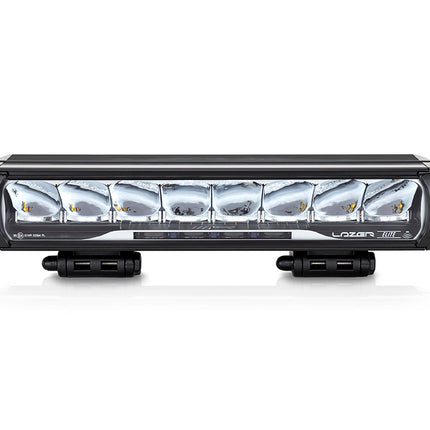

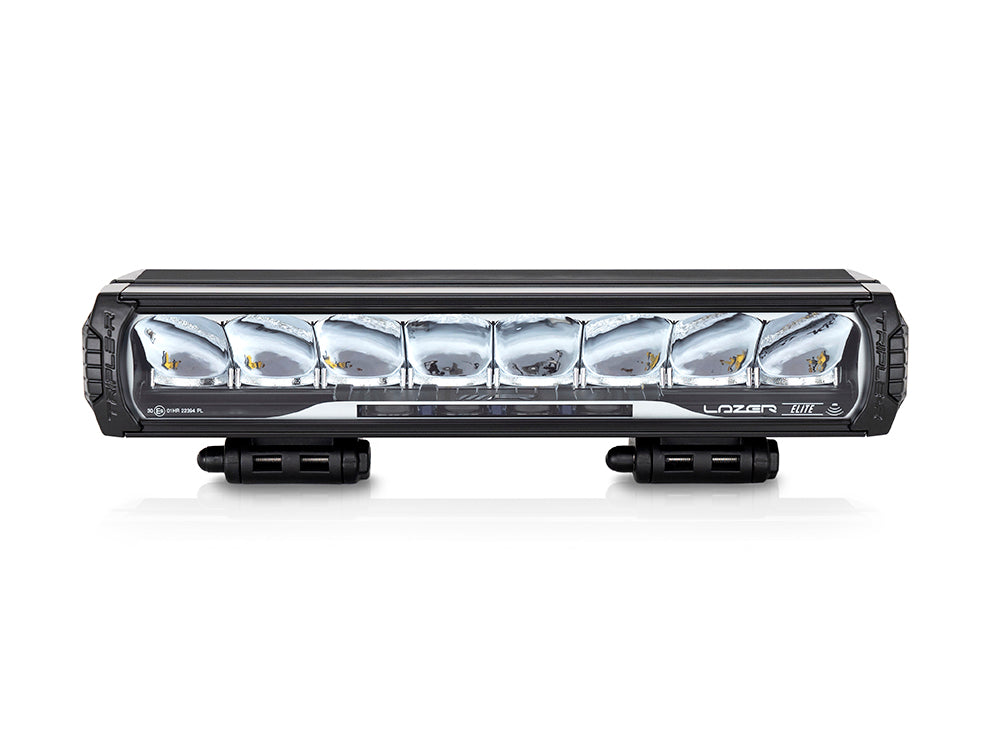

Triple-R 1000 Elite with Low Beam Assist including cable set

Description

The TRIPLE-R 1000 Elite with Intelligent High Beam Assist (i-LBA) redefines the performance and functionality of LED auxiliary high beams. It offers a combination of highly efficient LEDs, finely tuned light distribution, and the use of photocells integrated into the high beam. When using the low beam, the headlight switches to High Beam Assist mode, which maintains additional illumination in all areas where no oncoming vehicles or obstacles are detected, allowing the driver a smoother transition between high and low beam.

With 26 LEDs producing 11,068 raw lumens, it delivers exceptional long-distance illumination of 1 lux at 681 m and 44 degrees left/right spread.
In low beam assist mode, the high beam LEDs are deactivated when the high beam is switched off. Low beam assist ensures excellent roadside visibility as the light monitors oncoming traffic and road conditions more than 30 times per second. Continuous recalibration of the sensors ensures the light responds to changing environmental conditions during operation.

A delay in reactivating the high beam assist prevents distracting "flashing" by switching it on and off, and a second switch allows the driver to deactivate the high beam assist when circumstances require.
Certified as a high beam according to ECE Regulation 112, the headlight features double light output boost technology, which allows the light intensity to be increased beyond the limits of ECE Regulation 112 when driving off-road or in countries where it is legally permitted.

As with all Triple-R products, the exceptional design of the lights is complemented by our UK-based manufacturing. This ensures the product will continue to look and perform well for years to come – all backed by a comprehensive 5-year warranty. An all-aluminum housing, an advanced breathable Gore-Tex silicone membrane, and a polycarbonate lens (with a lifetime warranty) are just a few features that make the light ideal for even the harshest environments.

Triple-R 1000 Elite with Low Beam Assist including cable set

Product form
Free pickup in our shop(s)

€849,00 Incl. VAT

    • Optionale Standlichtfunktion in Weiß/Gelb
    • "Spot"-Abstrahlcharakteristik mit maximaler Reichweite
    • Produkte mit ECE-Zulassung (Boost-Technologie)
    • Zeitgemäßes Design
    • 5 Jahre Garantie
      Product features
    • Combination of 26 highly efficient LEDs for exceptional light output
    • Highly reflective, vacuum-metallized optics deliver a perfectly balanced light distribution for daily road use
    • Dimming assistant for excellent visibility in the near and medium range
    • Integrated light barriers detect oncoming traffic and obstacles, so that the light output reacts to the environment in dimming assistant mode
    • Approved as high beam for Road Traffic according to UNECE Regulation 112 (Class B high beam) (Boost technology)
    • Modern lamp design
    • Supplied with single lamp cable set
    • Includes a versatile center-mount system and integrated side-mount capabilities (mounts sold separately)
    • Electronic thermal management system optimizes light output to maintain LED longevity
    • Automotive-grade anodized pretreatment and powder coating for ultimate corrosion and chemical protection
    • CAE-optimized heat sink for improved thermodynamics
    • Surge protection
    • Reverse polarity protected
    • Shatter-proof polycarbonate lens with hard coating
      Scope of delivery
    • x1 Triple-R 1000 i-LBA LED lamp
    • x2 bracket set for center mounting (1114k)

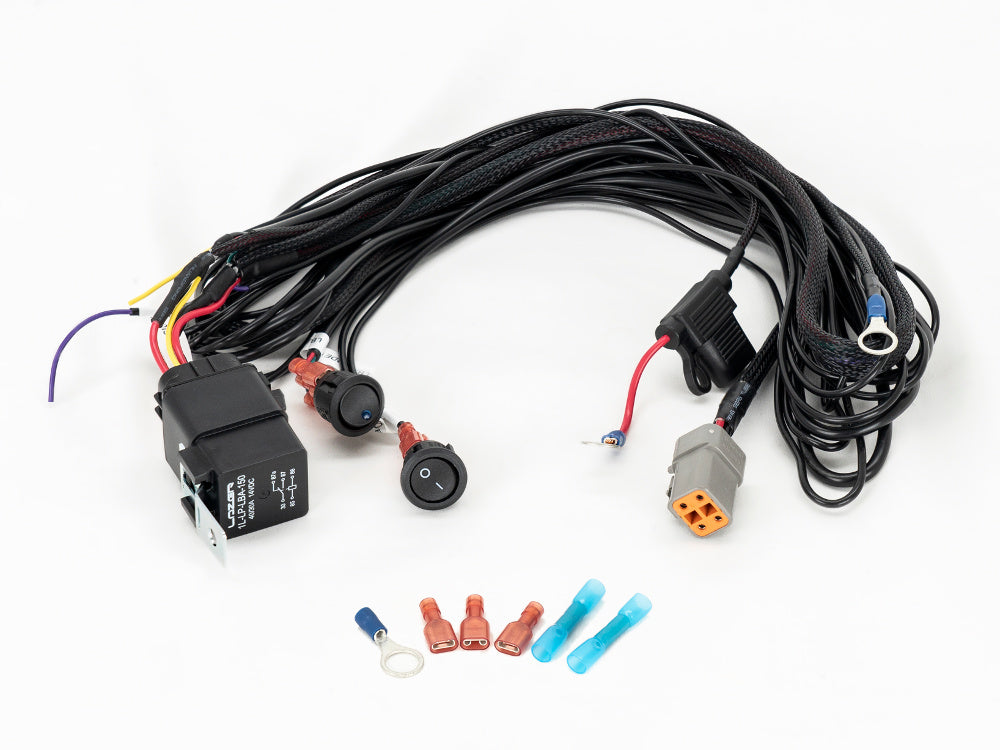

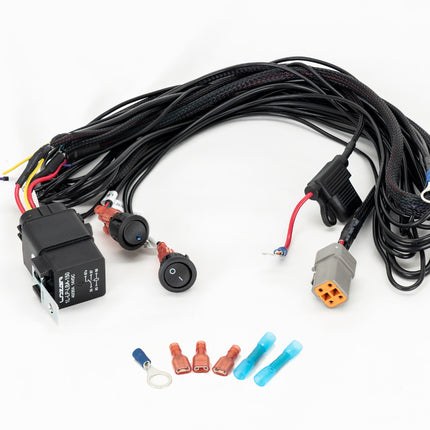

    • x1 Single-lamp cable set (1L-LP-LBA-150)
    • x1 Installation Instructions
      Technische Daten
    Boost Mode Low Output Mode
    Spannungsbereich (DC) 10-32 V
    LED-Lebensdauer 50,000 hours
    Gewicht 1.7 kg
    Fernlicht-Funktion
    Gesamtlichtstrom 11068 lm 3423 lm
    Gesamtlichtstrom im Fahrer-Sichtfeld 7294 lm 2256 lm
    Farbtemperatur 5000 k
    Anzahl Hochleistungs-LEDs 26
    Leistungsaufnahme 111 W 32 W
    Stromaufnahme (14.4 V) 6.6 A 2.3 A
    Zertifizierung
    Fernlicht ECE R112 (low output mode only)

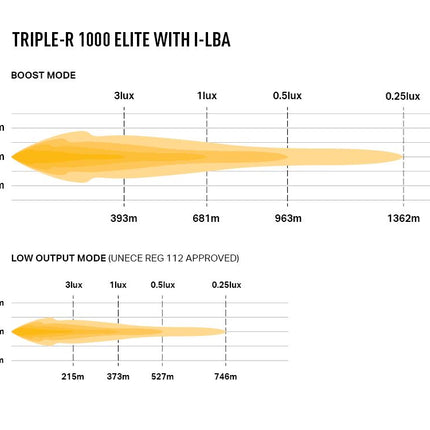

    Lichttechnische Daten
    Horizontaler Abstrahlwinkel 56° 56°
    0.25-Lux-Linie 1362 m 746 m
    0.5-Lux-Linie 963 m 527 m
    1-Lux-Linie 681 m 373 m
    3-Lux-Linie 393 m 215 m
      Downloads
    PDF ECE_Reg_112_-_Certificate_-_Triple-R_1000_Elite_with_i-LBA.pdf
    PDF Lazer_Lamps_-_i-LBA_-_User_Guide_FAQs_a4a52a6f-a5fc-4897-b482-e2d273cbf6ee.pdf
    PDF Triple-R_1000_Elite_i-LBA_-_Tech_Specs.pdf
    PDF Triple-R_Elite_with_i-LBA_-_UNECE_Reg_10_Certificate.pdf
    PDF Lazer_Lamps_-_i-LBA_-_Instructions_46533fba-4aca-48a3-843e-17a591cb10c0.pdf

    Matching cable sets

    Show more products

    Description

    The TRIPLE-R 1000 Elite with Intelligent High Beam Assist (i-LBA) redefines the performance and functionality of LED auxiliary high beams. It offers a combination of highly efficient LEDs, finely tuned light distribution, and the use of photocells integrated into the high beam. When using the low beam, the headlight switches to High Beam Assist mode, which maintains additional illumination in all areas where no oncoming vehicles or obstacles are detected, allowing the driver a smoother transition between high and low beam.

    With 26 LEDs producing 11,068 raw lumens, it delivers exceptional long-distance illumination of 1 lux at 681 m and 44 degrees left/right spread.
    In low beam assist mode, the high beam LEDs are deactivated when the high beam is switched off. Low beam assist ensures excellent roadside visibility as the light monitors oncoming traffic and road conditions more than 30 times per second. Continuous recalibration of the sensors ensures the light responds to changing environmental conditions during operation.

    A delay in reactivating the high beam assist prevents distracting "flashing" by switching it on and off, and a second switch allows the driver to deactivate the high beam assist when circumstances require.
    Certified as a high beam according to ECE Regulation 112, the headlight features double light output boost technology, which allows the light intensity to be increased beyond the limits of ECE Regulation 112 when driving off-road or in countries where it is legally permitted.

    As with all Triple-R products, the exceptional design of the lights is complemented by our UK-based manufacturing. This ensures the product will continue to look and perform well for years to come – all backed by a comprehensive 5-year warranty. An all-aluminum housing, an advanced breathable Gore-Tex silicone membrane, and a polycarbonate lens (with a lifetime warranty) are just a few features that make the light ideal for even the harshest environments.
