Triple-R 750 Beacon

Description

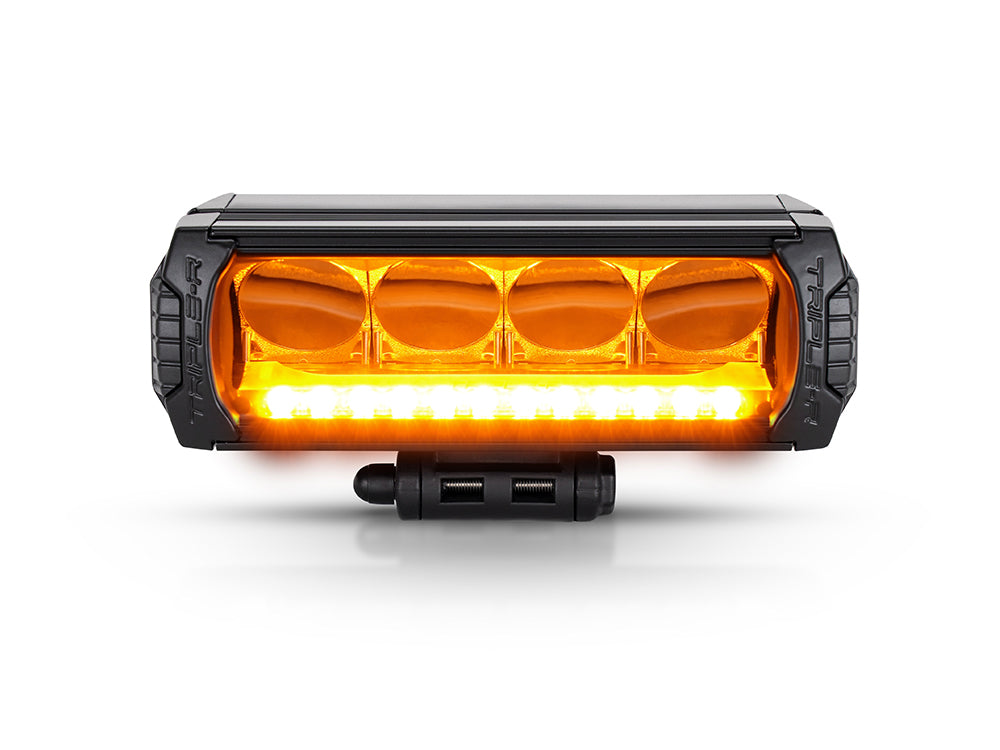

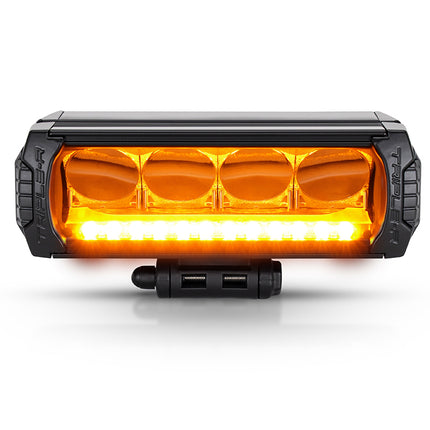

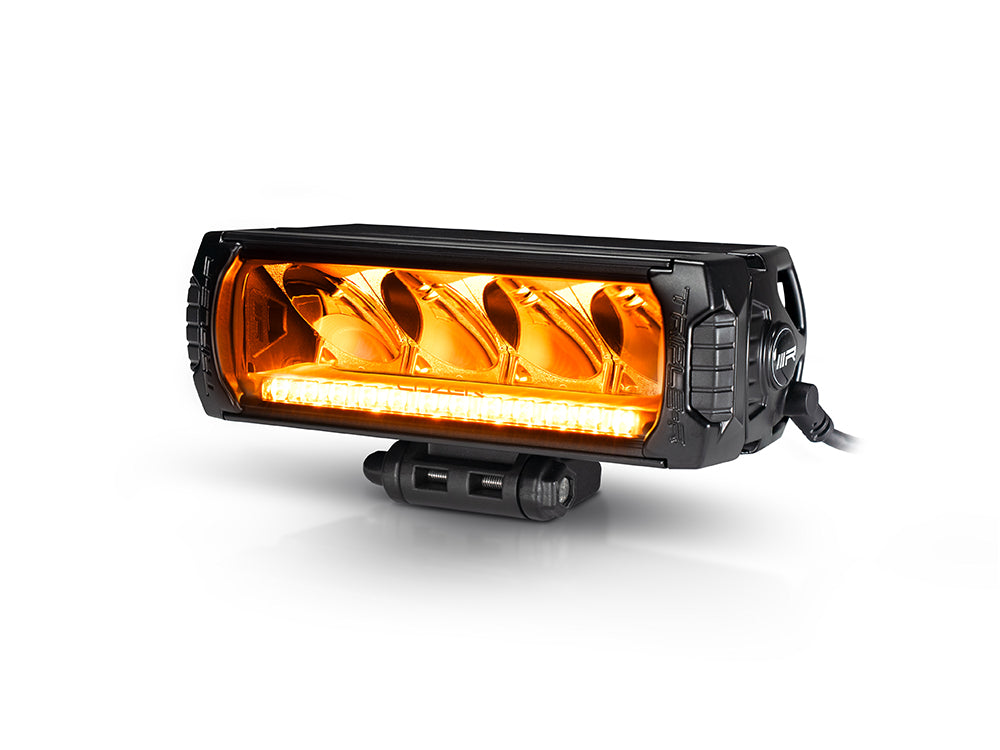

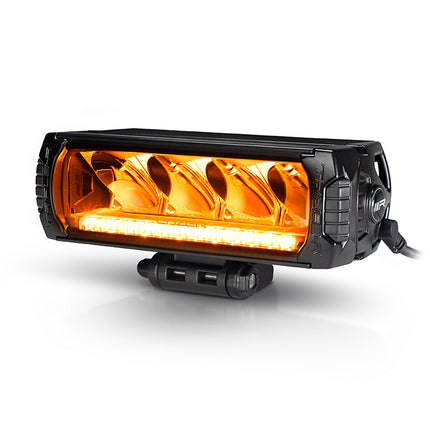

The highly versatile Triple-R 750, a favorite in the passenger car, 4x4, light commercial vehicle (LCV), and heavy truck segments, is now available with an integrated amber flashing warning light. Offering two different forward-facing flash patterns, approved to UNECE Reg65, this additional safety feature combines the ability to connect a white or amber position/side light, as well as the exceptional high beam function, truly setting the Triple-R 750 apart from the competition.

The Triple-R 750 delivers a pinpoint light pattern ideal for road use. The lamp itself features a modern, clean design with a more aggressive edge that blends seamlessly with the aesthetics of modern vehicles. With an impressive 5,400 lumens and an illumination intensity of 1 lux at 442 m, the auxiliary LED driving light offers excellent light distribution to the left and right with a horizontal spread of 28°. The lamp is approved as a high beam according to UNECE Regulation 149 and utilizes Lazer's E-Boost dual-output technology. By quickly switching on and off, the light can be instantly dimmed to avoid glare, for example, from traffic signs (flash-to-dim). It can also be programmed to always operate in high or low power mode, with the low power mode meeting the requirements of UNECE Regulation 149 for a road-legal high beam.

The lamp offers the option of connecting an integrated position/sidelight function, in cases where the lighting installation needs to be clearly visible both day and night. It is possible to connect white or amber Position Lights by simply plugging the corresponding wire into the lamp connector during installation. Alternatively, both connections can be left separate, allowing the Triple-R 750 to function only as a high beam. The Position Light function (white only) is approved according to UNECE Reg148 and can be operated in parallel with the Standard vehicle lights.

The warning lightbar's functions are approved as a narrow-beam (XA1) warning light for nighttime use according to UNECE Reg 65. Two different amber hazard flash patterns are available, which can either be selected during installation and synchronized between multiple lights or changed using a momentary switch when a change in the flash pattern is required on demand.

Like all Lazer products, the Triple-R 750 with hazard warning function is designed to deliver powerful driving light with a perfectly homogeneous light pattern. The 5000K color temperature of the light was carefully selected to provide the best possible definition of obstacles while ensuring a comfortable riding experience even over extended periods. This outstanding performance is complemented by first-class build quality, sourced from our own production facility in the UK and backed by our comprehensive 5-year warranty.

Triple-R 750 Beacon

Product form
Free pickup in our shop(s)

€425,00 Incl. VAT

    • Optionale Standlichtfunktion in Weiß/Gelb
    • "Spot"-Abstrahlcharakteristik mit maximaler Reichweite
    • Produkte mit ECE-Zulassung (Boost-Technologie)
    • Zeitgemäßes Design
    • 5 Jahre Garantie
      Product features
    • Premium-class high-density 11W LED technology
    • Integrated white or amber Position Light function – UNECE Reg148 (white only)
    • Integrated yellow flashing warning light – UNECE Reg65 (XA1)
    • ECE approved for high beam operation on the road (dual output technology) – UNECE Reg149
    • Ultra-reflective vacuum-metallized optics for a point-like light pattern
    • Modern lamp design

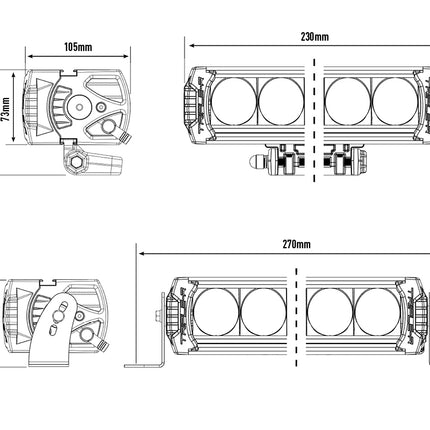

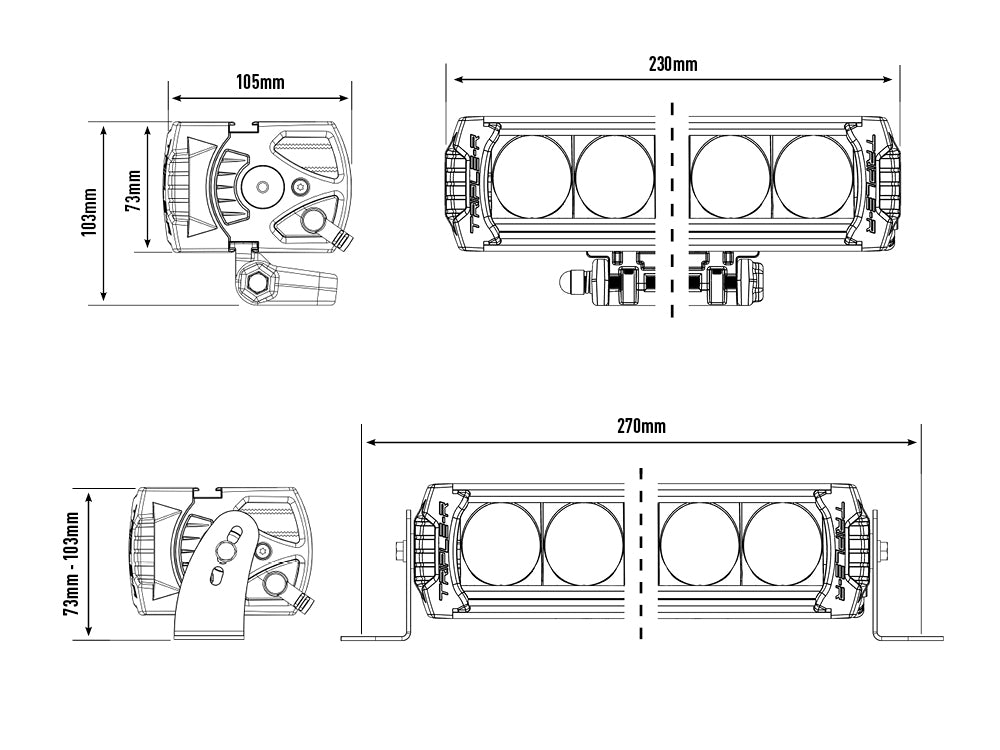

    • Versatile center mount system and integrated side mount brackets (brackets sold separately)
    • CAE-optimized heat sink for improved heat dissipation
    • Anodized pretreatment and high-quality powder coating for maximum corrosion and chemical protection
    • Electronic thermal management
    • “Unbreakable” and hard-coated polycarbonate lens
    • Waterproof according to IP68 – submersible up to 1.5 m for 30 minutes
    • 5-year warranty
    • Supplied with pre-terminated 6-pin Superseal male/female connectors
    • Designed and manufactured in Great Britain
      Scope of delivery
    • x1 Triple-R 750 with warning light function
    • x1 central bracket (1114k)
    • x1 Assembly instructions
      Technische Daten
    Boost Mode Low Output Mode
    Spannungsbereich (DC) 10-32 V
    LED-Lebensdauer 50,000 hours
    Gewicht 1 kg
    Fernlicht-Funktion
    Gesamtlichtstrom 5,400 lm 3,078 lm
    Gesamtlichtstrom im Fahrer-Sichtfeld 1,242 lm 707 lm
    Farbtemperatur 5000 k
    Leistungsaufnahme 52 W 10 W
    Stromaufnahme (14.4 V) 3.7 A 0.7 A
    Anschluss 6-pin Superseal (+25cm cable)
    Zertifizierung
    IP-Bewertung # IP68
    Fernlicht ECE R149 - Ref: 10 (Low Output Mode only)
    EMC-Zertifizierung ECE R10
    Salzsprühtest ISO 9227
    Dump-Lastschutz ISO 7637-2
    Warnleuchtenfunktion ECE R65
    Positionslicht (weiß) ECE R148 ECE R148

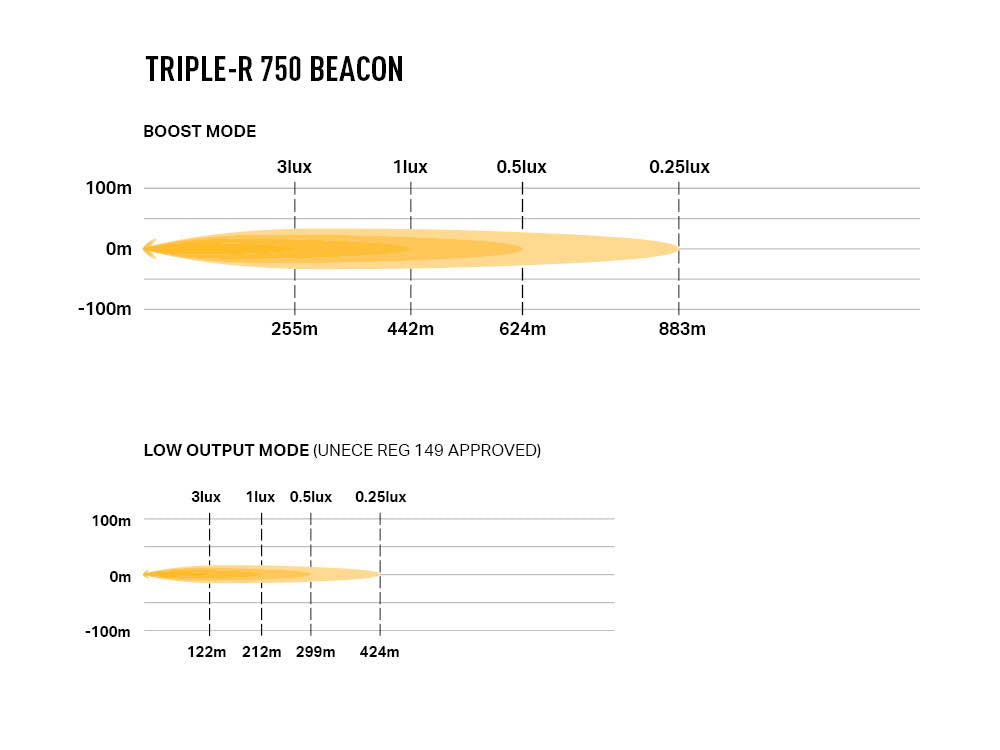

    Lichttechnische Daten

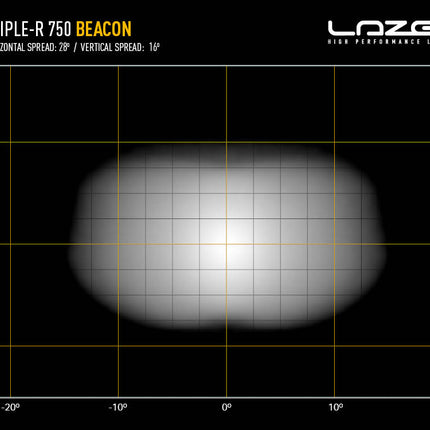

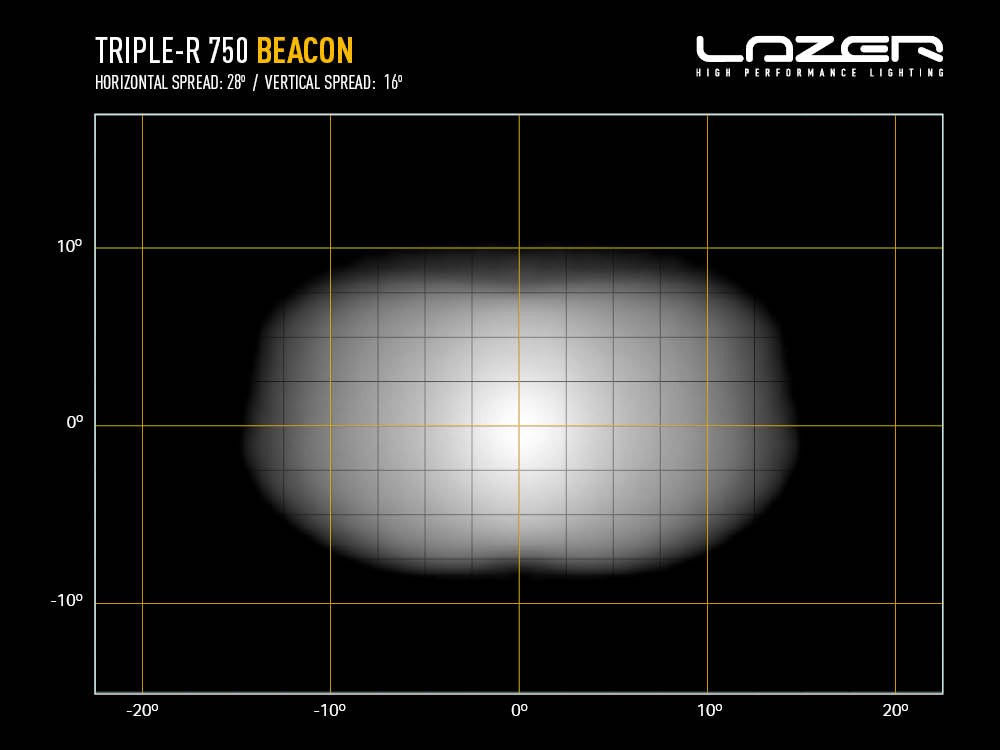

    Horizontaler / vertikaler Abstrahlwinkel 28° / 16° 28° / 16°

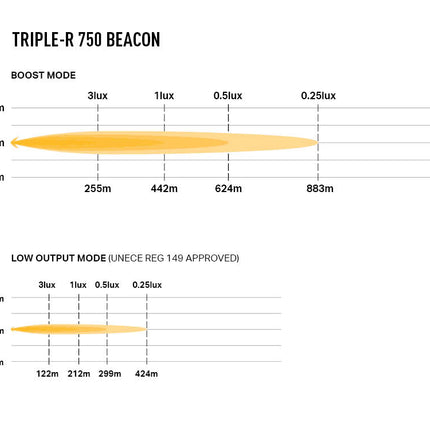

    0.25-Lux-Linie 883 m 424 m
    0.5-Lux-Linie 624 m 299 m
    1-Lux-Linie 442 m 212 m
    3-Lux-Linie 255 m 122 m
      Downloads

    Matching cable sets

    Description

    The highly versatile Triple-R 750, a favorite in the passenger car, 4x4, light commercial vehicle (LCV), and heavy truck segments, is now available with an integrated amber flashing warning light. Offering two different forward-facing flash patterns, approved to UNECE Reg65, this additional safety feature combines the ability to connect a white or amber position/side light, as well as the exceptional high beam function, truly setting the Triple-R 750 apart from the competition.

    The Triple-R 750 delivers a pinpoint light pattern ideal for road use. The lamp itself features a modern, clean design with a more aggressive edge that blends seamlessly with the aesthetics of modern vehicles. With an impressive 5,400 lumens and an illumination intensity of 1 lux at 442 m, the auxiliary LED driving light offers excellent light distribution to the left and right with a horizontal spread of 28°. The lamp is approved as a high beam according to UNECE Regulation 149 and utilizes Lazer's E-Boost dual-output technology. By quickly switching on and off, the light can be instantly dimmed to avoid glare, for example, from traffic signs (flash-to-dim). It can also be programmed to always operate in high or low power mode, with the low power mode meeting the requirements of UNECE Regulation 149 for a road-legal high beam.

    The lamp offers the option of connecting an integrated position/sidelight function, in cases where the lighting installation needs to be clearly visible both day and night. It is possible to connect white or amber Position Lights by simply plugging the corresponding wire into the lamp connector during installation. Alternatively, both connections can be left separate, allowing the Triple-R 750 to function only as a high beam. The Position Light function (white only) is approved according to UNECE Reg148 and can be operated in parallel with the Standard vehicle lights.

    The warning lightbar's functions are approved as a narrow-beam (XA1) warning light for nighttime use according to UNECE Reg 65. Two different amber hazard flash patterns are available, which can either be selected during installation and synchronized between multiple lights or changed using a momentary switch when a change in the flash pattern is required on demand.

    Like all Lazer products, the Triple-R 750 with hazard warning function is designed to deliver powerful driving light with a perfectly homogeneous light pattern. The 5000K color temperature of the light was carefully selected to provide the best possible definition of obstacles while ensuring a comfortable riding experience even over extended periods. This outstanding performance is complemented by first-class build quality, sourced from our own production facility in the UK and backed by our comprehensive 5-year warranty.
