Triple-R 750 Wide

Description

The latest generation of the Triple-R range delivers exceptional, long-range auxiliary LED automotive lighting. Originally developed for the uncompromising demands of professional racing on track and in rally, the range has become a firm favorite across the passenger car, 4x4, light commercial vehicle, and heavy-duty vehicle markets, both on- and off-road. The latest additions to the Triple-R range offer innovative features and functionality, including patented technology never before seen in an auxiliary LED light bar.

Featuring an array of highly efficient, premium 'bin' LEDs at a carefully selected color temperature of 5000K, with 80CRI for high levels of sharpness and clarity, the Triple-R Elite products represent our most powerful driving lights. The electronics and optical design work together to deliver incredible distance illumination, yet with an enviable left/right beam angle. The comparatively low up/down scatter of light emitted by the Elite lights ensures their suitability for roof mounting, avoiding reflected glare from the vehicle's hood.

With the exception of the Triple-R 750 Wide, all Standard products feature an integrated (optional) white and/or amber Position Light function for added style and safety benefits. In addition to the premium design of the lights themselves, you can be sure your Triple-R product will impress even before sunset! High-output 11W LEDs provide impressive distance illumination, although not quite with the same left/right visibility found on equivalent Elite products. However, a slightly higher up/down spread ensures suitability when mounted high on a vehicle, such as a truck cab or the roof of a van or other light commercial vehicle.

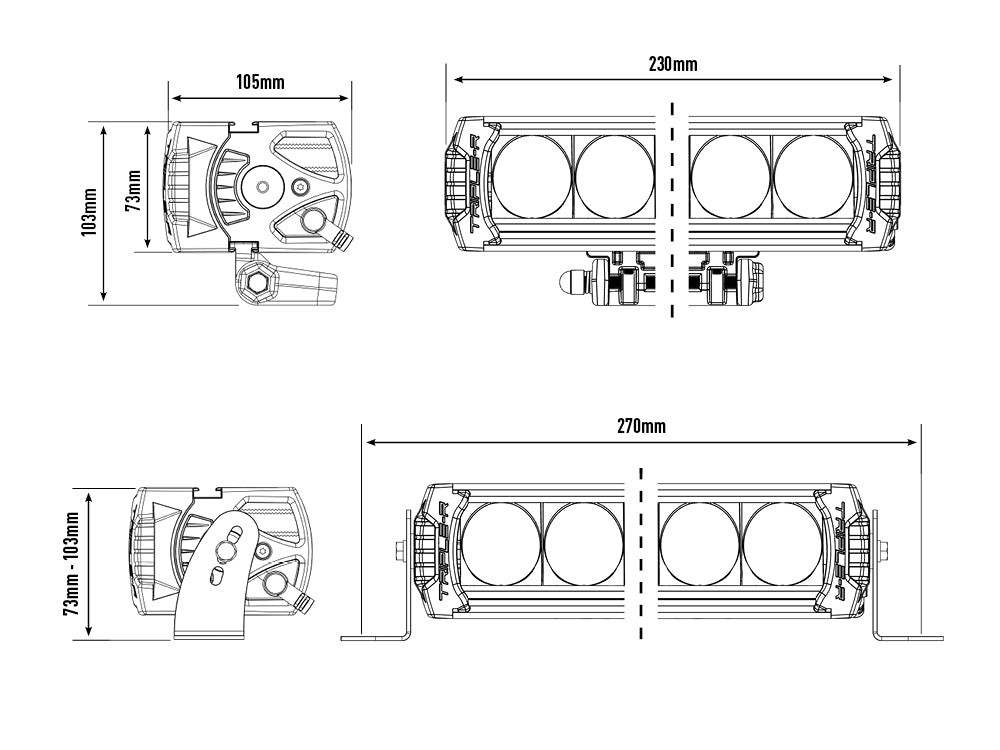

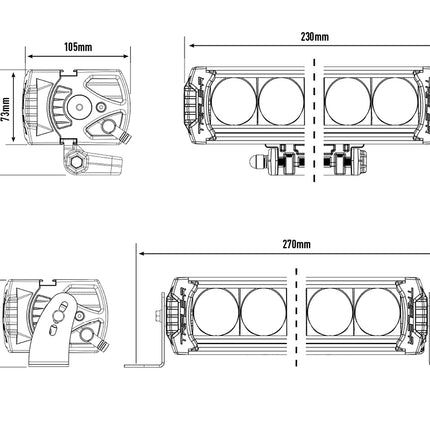

Available in a variety of sizes from the 230mm (9”) Triple-R 750 to the 1305mm (51”) Triple-R 28 Elite, all Triple-R products up to the 590mm (23”) Triple-R 1250 are approved for use as high beams under UNECE Regulation 112. In many cases, certification is only achieved through the use of dual-output E-Boost technology, which allows the lamp to be used in both E-Boost and E-Mark compliant modes, depending on country-specific regulations and whether the lights are used on or off-road.

Like all Lazer high performance lights, the Triple-R range is designed, engineered and built in-house in the UK, you can be completely assured of exceptional high-end product design, coupled with superior lighting levels, all backed by our comprehensive 5-year warranty.

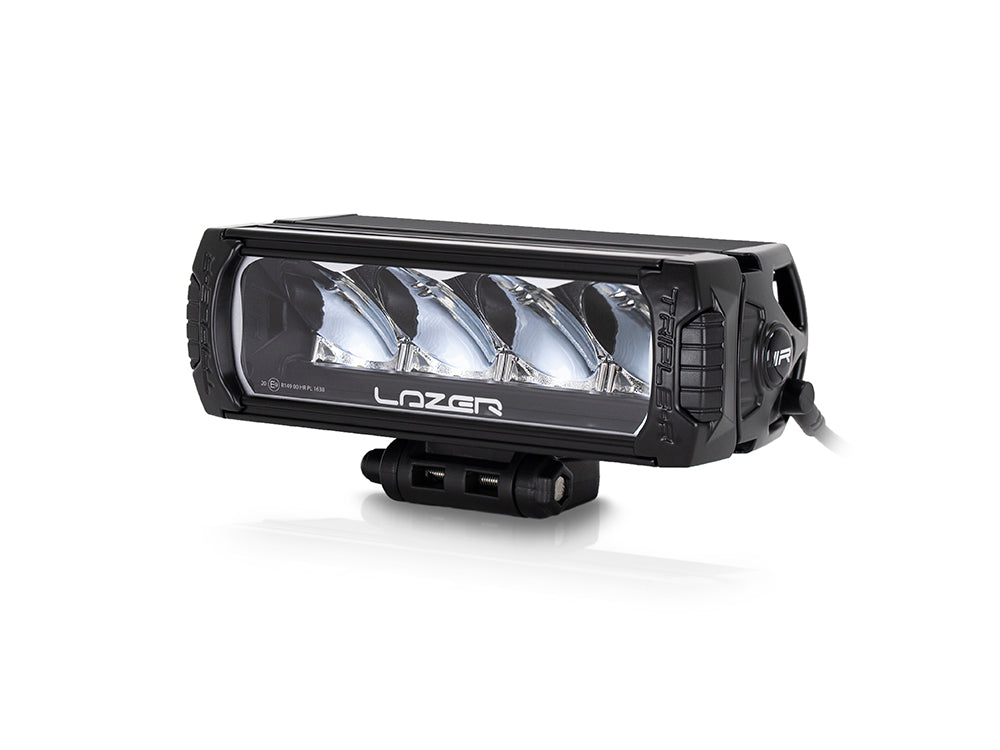

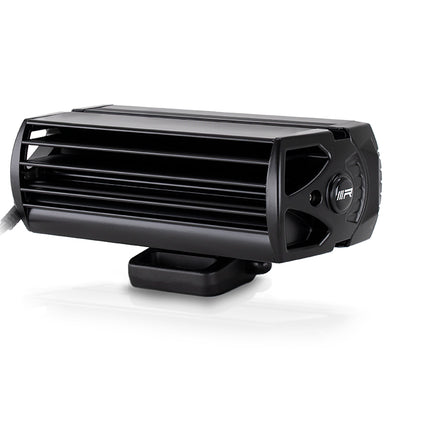

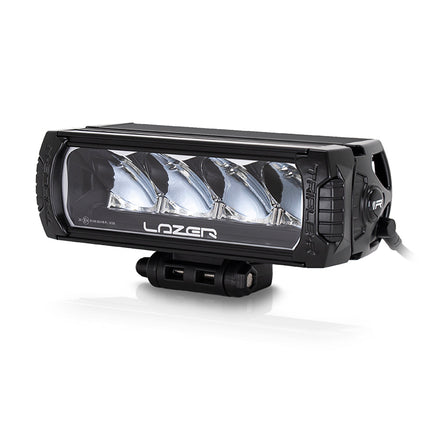

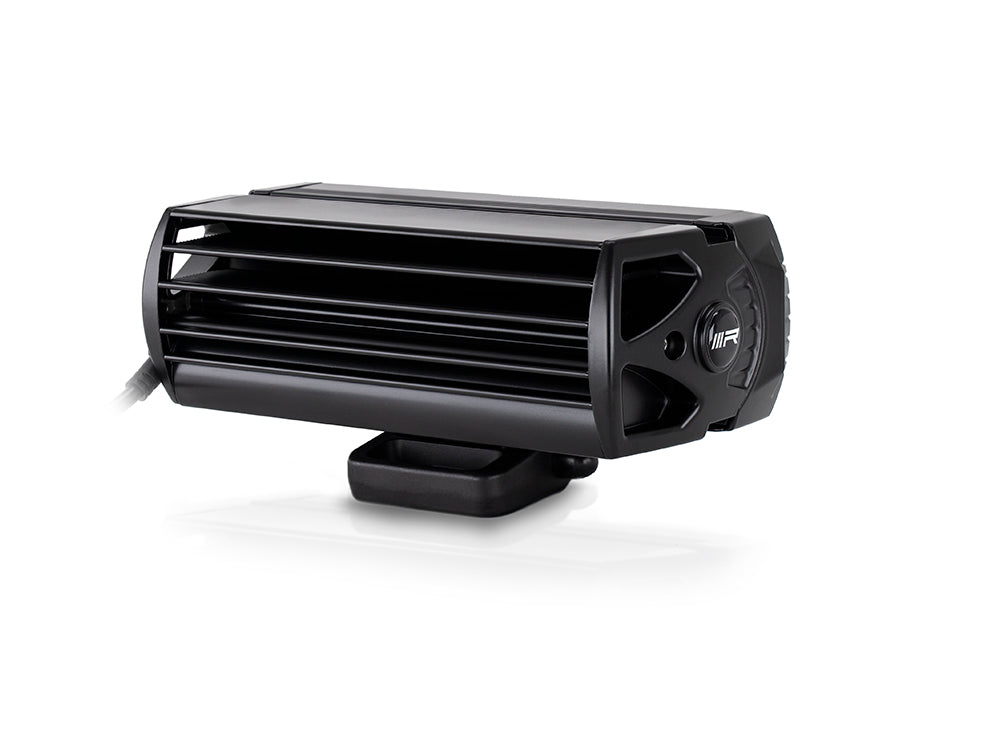

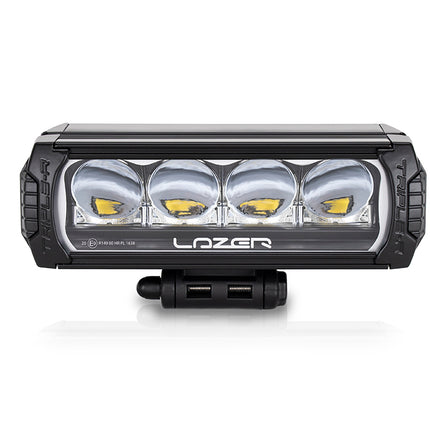

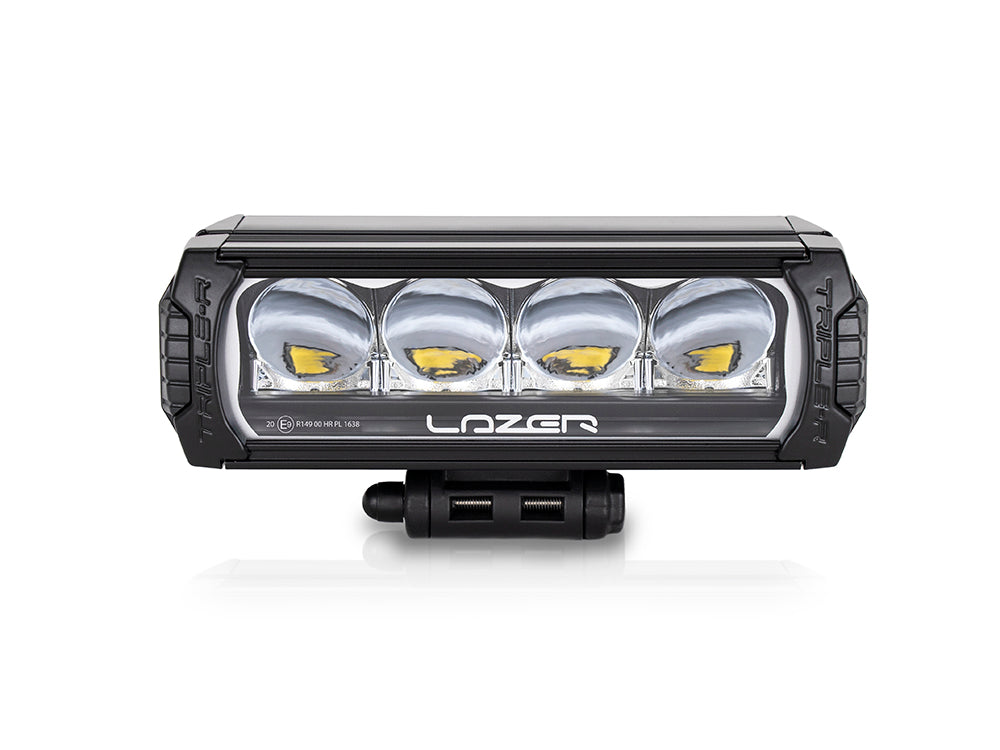

Triple-R 750 Wide

Product form
Free pickup in our shop(s)

€285,00 Incl. VAT

    • Optionale Standlichtfunktion in Weiß/Gelb
    • "Spot"-Abstrahlcharakteristik mit maximaler Reichweite
    • Produkte mit ECE-Zulassung (Boost-Technologie)
    • Zeitgemäßes Design
    • 5 Jahre Garantie
      Product features

    Highly efficient 11W LED technology

    5000K LED color temperature and 80CRI maximize sharpness and definition

    UNECE Reg 149 Class B driving light, approved for use on the road as a main beam

    A wide 40 degree left/right light cone qualifies the lamp for a lower E-Mark reference number - 20

    Ultra-reflective vacuum metallized optics deliver a high beam pattern

    Contemporary lamp design

    Includes a versatile 'Centre Mount' mounting system plus integrated side-mount features (brackets sold separately)

    Electronic thermal management system optimizes light output to preserve the longevity of the LEDs

    Anodized pretreatment and automotive-grade powder coating for ultimate corrosion and chemical protection

    CAE optimized heat sink offers improved thermal dynamics

    Surge protected

    Protection against reverse polarity

    'Unbreakable' polycarbonate lens with hard coating

    UNECE approves Reg 10

    Waterproof IP68

    5-year warranty

    Comes with pre-assembled male/female 2-pin Superseal connectors

    Designed & manufactured in Great Britain

      Scope of delivery
    • x1 Triple-R 750 Wide LED lamp
    • x1 bracket set for center mounting (1114K)
    • x1 Installation Instructions
      Technische Daten
    Boost Mode Low Output Mode
    Spannungsbereich (DC) 10-32 V
    LED-Lebensdauer 50,000 hours
    Gewicht 1 kg
    Fernlicht-Funktion
    Gesamtlichtstrom 4,620 lm
    Gesamtlichtstrom im Fahrer-Sichtfeld 2,633 lm
    Farbtemperatur 5000 k
    Anzahl Hochleistungs-LEDs 4
    Leistungsaufnahme 44 W
    Zertifizierung
    IP-Bewertung # IP68
    Fernlicht ECE R149

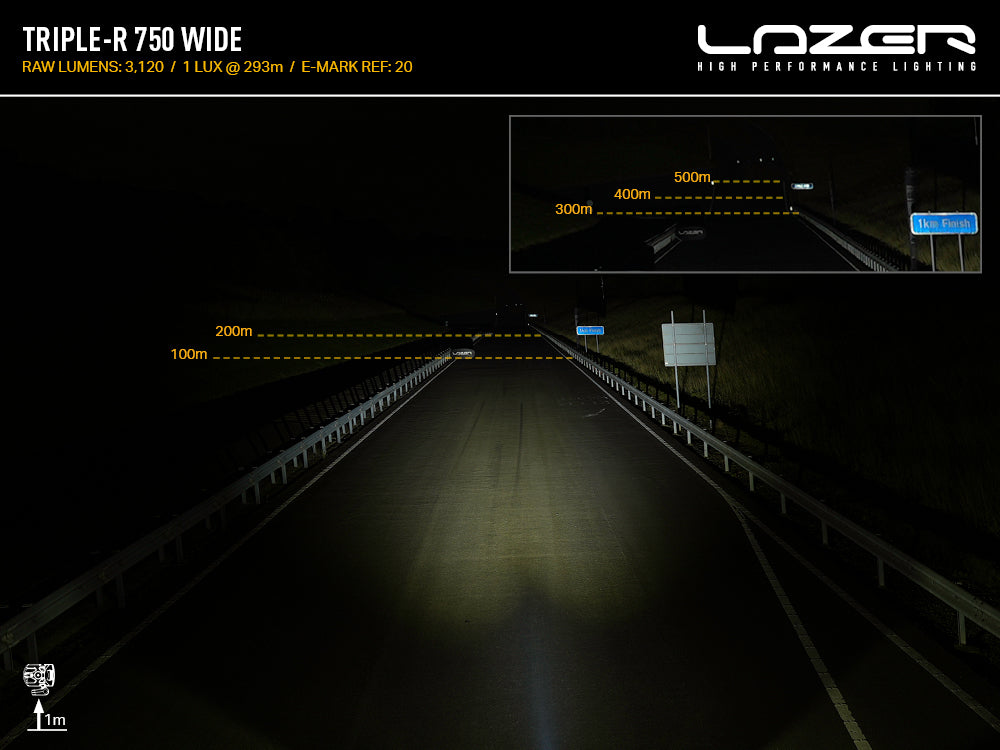

    Lichttechnische Daten

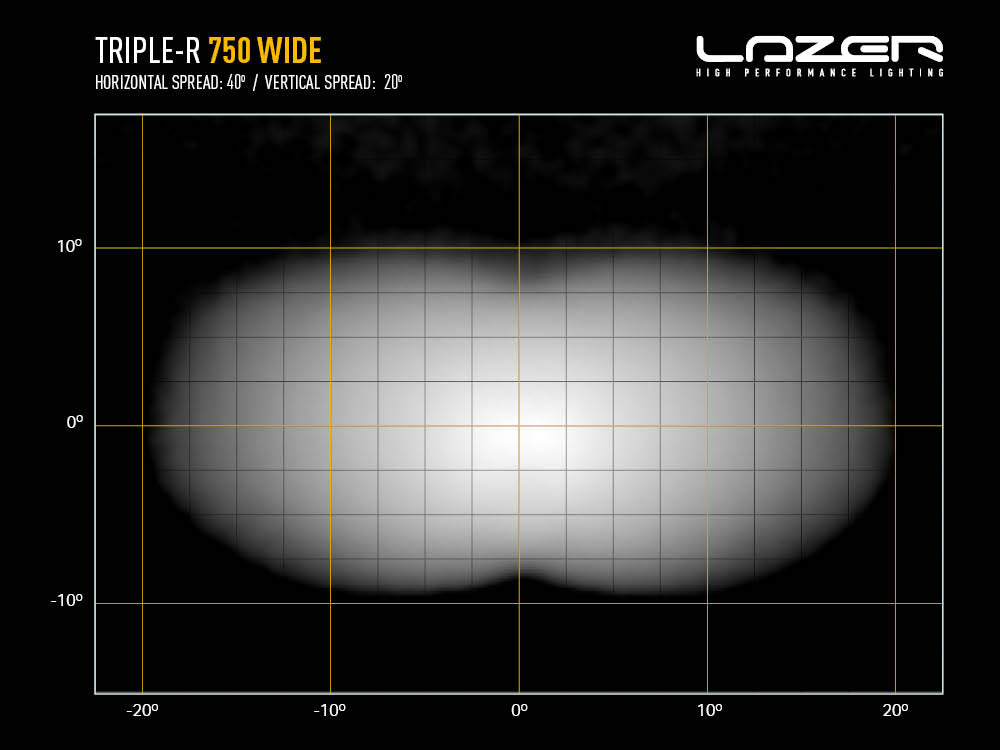

    Horizontaler Abstrahlwinkel 40° 40°

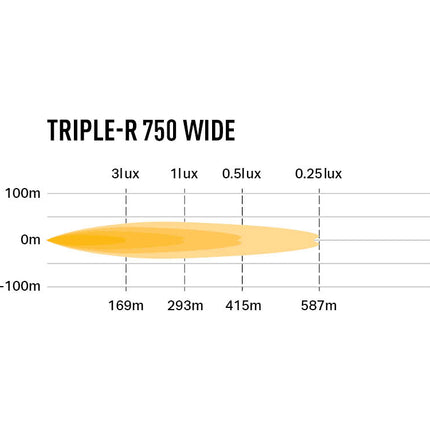

    0.25-Lux-Linie 587 m
    0.5-Lux-Linie 415 m
    1-Lux-Linie 293 m
    3-Lux-Linie 169 m
      Downloads

    Matching cable sets

    Description

    The latest generation of the Triple-R range delivers exceptional, long-range auxiliary LED automotive lighting. Originally developed for the uncompromising demands of professional racing on track and in rally, the range has become a firm favorite across the passenger car, 4x4, light commercial vehicle, and heavy-duty vehicle markets, both on- and off-road. The latest additions to the Triple-R range offer innovative features and functionality, including patented technology never before seen in an auxiliary LED light bar.

    Featuring an array of highly efficient, premium 'bin' LEDs at a carefully selected color temperature of 5000K, with 80CRI for high levels of sharpness and clarity, the Triple-R Elite products represent our most powerful driving lights. The electronics and optical design work together to deliver incredible distance illumination, yet with an enviable left/right beam angle. The comparatively low up/down scatter of light emitted by the Elite lights ensures their suitability for roof mounting, avoiding reflected glare from the vehicle's hood.

    With the exception of the Triple-R 750 Wide, all Standard products feature an integrated (optional) white and/or amber Position Light function for added style and safety benefits. In addition to the premium design of the lights themselves, you can be sure your Triple-R product will impress even before sunset! High-output 11W LEDs provide impressive distance illumination, although not quite with the same left/right visibility found on equivalent Elite products. However, a slightly higher up/down spread ensures suitability when mounted high on a vehicle, such as a truck cab or the roof of a van or other light commercial vehicle.

    Available in a variety of sizes from the 230mm (9”) Triple-R 750 to the 1305mm (51”) Triple-R 28 Elite, all Triple-R products up to the 590mm (23”) Triple-R 1250 are approved for use as high beams under UNECE Regulation 112. In many cases, certification is only achieved through the use of dual-output E-Boost technology, which allows the lamp to be used in both E-Boost and E-Mark compliant modes, depending on country-specific regulations and whether the lights are used on or off-road.

    Like all Lazer high performance lights, the Triple-R range is designed, engineered and built in-house in the UK, you can be completely assured of exceptional high-end product design, coupled with superior lighting levels, all backed by our comprehensive 5-year warranty.
