Sentinel 9" Elite in White

Description

With a light output of 15,232 raw lumens, the lamps deliver 1 lux at 742 m. But it's the 52-degree horizontal light distribution and the mid-to-wide visibility conditions at the roadside or on the roadway that really make the Sentinel Elite shine. For a demonstration of the light output, please click on the videos below.

As with all Lazer products, the 5000K color temperature is pleasing to the eye while maximizing the sharpness and definition of objects in front of the vehicle. The lamp is approved for high beam use under UNECE Regulation 112, utilizing Lazer's E-Boost technology with double the light output. At 100%, the light intensity exceeds the permissible limit of ECE regulations, so the included boost cap on the back of the lamp can be removed to reduce the light output to the permissible limit.

The discreet design of the black Sentinel light variant is achieved through the use of black circuit boards and a black bezel with intricate hexagonal construction details for a unique, modern appearance. The aesthetics of the light are enhanced by the "slim" die-cast aluminum bracket with Sentinel stamping, which, like the lights themselves, received an automotive-grade pre-treatment before the application of the black satin powder coating. The result is a high-quality finish that is fully protected against aesthetic deterioration or corrosion. An alternative "wide" bracket, along with a range of lens covers, a fixing bracket kit, and anti-theft fasteners, are available as optional accessories.

Like all Lazer products, Sentinel lights were designed, developed, and manufactured in our UK factory. No compromises were made in components or manufacturing processes to ensure a high-quality product. At the same time, environmental protection and an ambitious carbon reduction program played a key role in the design and manufacture of Sentinel products.

Sentinel 9" Elite in White

Product form
Free pickup in our shop(s)

€607,00 Incl. VAT

    • Ultra-reflektierende vakuum-metallisierte Spot- und Weitwinkel-Optik
    • Integrierte Weiß-/Amber-Positionslichtfunktion (2 Versionen)
    • ECE-zugelassen (Doppelausgang – Boost-Technologie)
    • IP68 wasserdicht
    • 5 Jahre Garantie
      Produktmerkmale

    Combination of 32 high-quality “Bin” LEDs

    Unobtrusive appearance thanks to black inner panel and black circuit boards

    Integrated parking light function in white and yellow

    Highly reflective, vacuum-metallized headlight and wide-beam optics

    High beam approved for road use according to UNECE Regulation 112 (Class B high beam) (Boost technology) and parking light function approved according to Regulation 7 (white only)

    5000 K LED color temperature and 80 CRI for maximum sharpness and definition

    Modern lamp design

    Supplied with a slim die-cast aluminum mount with Sentinel embossing

    Electronic thermal management system optimizes light output to maintain LED longevity

    Automotive-grade anodized pretreatment and powder coating for ultimate corrosion and chemical protection

    CAE-optimized heat sink for improved thermodynamics

    Surge protection

    Reverse polarity protected

    Shatter-proof polycarbonate lens with hard coating

    Fasteners made of A2 stainless steel with black coating in automotive quality

    UNECE approves Reg 10

    Waterproof according to IP68 – submersion up to 1.5 m (30 min.)

    Supplied with pre-wired 3-pin Superseal plugs/sockets

    5-year warranty

    Designed & manufactured in Great Britain

      Lieferumfang
    • x1 Sentinel 9'' Elite LED lamp
    • x1 Black Lens Cover (LC-BLK-0S9)
    • x1 “slim” mounting kit (1141K)
    • x1 Installation Instructions
      Technische Daten
    Sentinel 9" Elite in White
    Spannungsbereich (DC) 10-32 V
    LED-Lebensdauer 50,000 hours
    Gewicht 2.5 kg
    Fernlicht-Funktion
    Gesamtlichtstrom 15,232 lm
    Gesamtlichtstrom im Fahrer-Sichtfeld 9,048 lm
    Farbtemperatur 5000 k
    Leistungsaufnahme 145 W
    Stromaufnahme (14.4 V) 10.1 A
    Anschluss 3-pin Superseal (+25cm cable)
    Abmessungen
    Breite 225 mm
    Tiefe 90 mm
    Höhe 230 mm
    Zertifizierung
    IP-Bewertung # IP68
    Fernlicht ECE R112 - Ref: 20 (in Low Output Mode only)
    EMC-Zertifizierung ECE R10
    Salzsprühtest ISO 9227
    Dump-Lastschutz ISO 7637-2
    Betriebsbedingungen
    Positionslicht (weiß) ECE R148

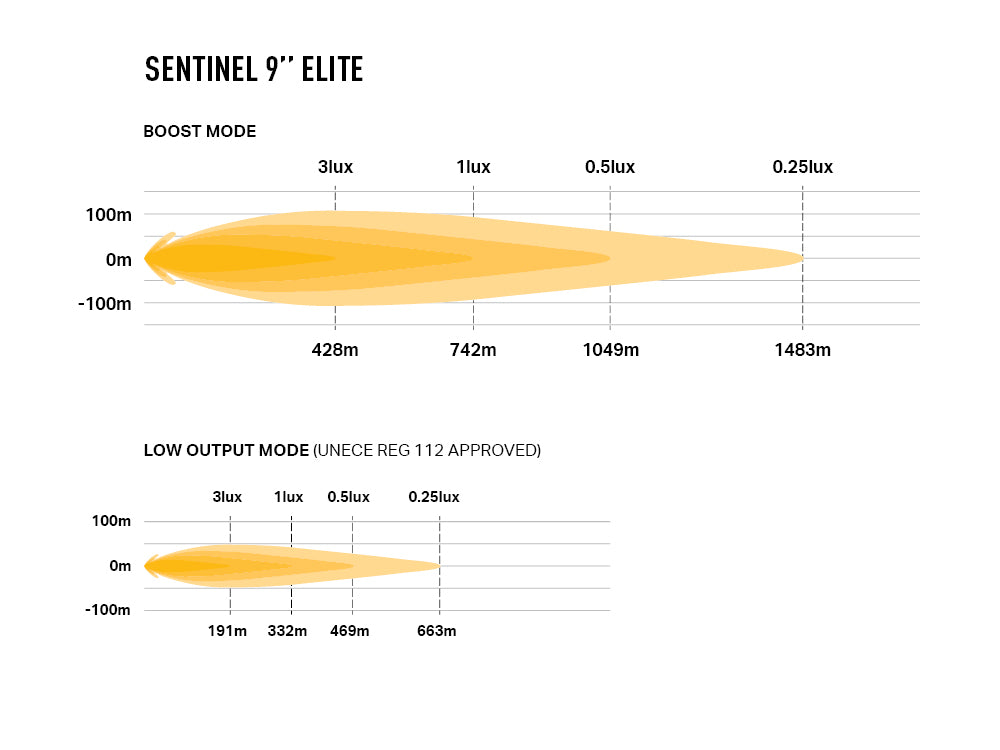

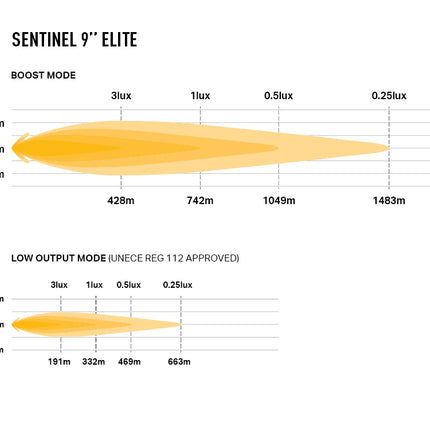

    Lichttechnische Daten
    Horizontaler / vertikaler Abstrahlwinkel 52° / 14°
    0.25-Lux-Linie 1483 m
    0.5-Lux-Linie 1049 m
    3-Lux-Linie 428 m
      Downloads
    PDF Sentinel_9_Position_Light_Gen2_Instructions.pdf
    PDF Sentinel_9_Elite_Gen2_-_Tech_Specs.pdf
    PDF Sentinel_Gen2_-_Annotated_Diagram.pdf
    PDF Sentinel_9_Gen2_-_Instructions.pdf
    PDF Sentinel_9_Elite_-_Gen2_-_Product_Information_Card.pdf
