Sentinel 9" Highline

Description

The latest addition to the Sentinel range of 9" round headlights, the Highline range, includes headlights designed primarily for heavy-duty applications. A striking, high-end product design with a sleek black interior housing and a combination of 20 high-performance LEDs provide exceptional light output specifically optimized for commercial applications. The headlights' appeal is further enhanced by an updated position/tail light for 2025. There's also the option to activate a dynamic welcome mode. The choice of a matte black or gloss white finish ensures that the Sentinel Highline headlights stand out in every way.

With a light output of 17,020 lumens, the headlights deliver 1 lux at a distance of up to 583 meters. Particularly noteworthy is the wide horizontal beam distribution of 52 degrees and the improved visibility at the roadside or on the track at medium to long distances. For a demonstration of the light performance, please visit the video section below. Like all Lazer products, this headlight features a pleasant color temperature of 5000K, which is easy on the eyes while maximizing the sharpness and definition of objects ahead. The headlight is road-approved as a high beam according to UNECE Regulation 149 and utilizes Lazer's dual-output E-Boost technology. By quickly switching the light on and off, the brightness can be quickly dimmed to avoid glare from traffic signs, for example (flash-to-dim). In addition, the headlight can be programmed at any time to operate permanently in either high-power or low-power mode. The low power mode complies with UNECE Regulation 149 as an approved high beam for Road Traffic.

The Sentinel headlight's understated design is achieved through the use of black circuit boards and a black bezel with intricate design details, creating a unique, modern appearance. The aesthetic appeal is further enhanced by the sleek, die-cast aluminum bracket with Sentinel embossing. Like the headlights themselves, this receives an automotive-grade pre-treatment before being finished with a matte black powder coat. The result is a premium finish that is fully protected against aesthetic wear and corrosion. A range of optional accessories is available, including lens covers, a reinforcement brace kit, and anti-theft mountings.

For customers looking for a dynamic start-up or welcome mode, the new and updated Sentinel 'Gen2' products can be configured to either gradually brighten as the vehicle starts or to alternate between white and amber light (or vice versa).

Like all Lazer products, Sentinel headlamps were designed, developed, and manufactured in-house in the UK. No compromises are made in the selection of components and production processes to ensure a superior product. At the same time, environmental responsibility and an ambitious carbon footprint reduction program were a greater focus than ever during the design and manufacture of Sentinel products.

Sentinel 9" Highline

Product form
Free pickup in our shop(s)

€473,00 Incl. VAT

    • Ultra-reflektierende vakuum-metallisierte Spot- und Weitwinkel-Optik
    • Integrierte Weiß-/Amber-Positionslichtfunktion (2 Versionen)
    • ECE-zugelassen (Doppelausgang – Boost-Technologie)
    • IP68 wasserdicht
    • 5 Jahre Garantie
      Produktmerkmale
    • Combination of 20 high-quality “bin” LEDs
    • Black printed circuit board (PCB) and bezel provide a discreet black interior design
    • 5000K LED color temperature and 80 CRI maximize sharpness and detail
    • Ultra-reflective vacuum-metallized spot and wide-angle optics
    • Flash-to-Dim function to avoid glare from traffic signs (e.g.)
    • Dual output functionality – high and low power modes
    • UNECE Reg 149 Class B driving light, approved as main beam for Road Traffic (only in low power mode) and as Reg 148 position/side light (white only)
    • Dynamic startup/greeting mode – two options that can be enabled as needed
    • Modern lamp design
    • Comes with a slim, die-cast aluminum mount with Sentinel stamping
    • Electronic thermal management system optimizes light output to extend LED lifespan
    • Anodized pretreatment and automotive-grade powder-coated surface for maximum corrosion and chemical protection
    • CAE-optimized heat sink for improved thermal dynamics
    • Surge protection
    • Protection against reverse polarity
    • “Unbreakable” polycarbonate lens with protective coating
    • A2 stainless steel screws with black coating in automotive quality
    • UNECE Regulation 10 approved
    • IP68 waterproof – 1.5 m immersion depth (30 min.)
    • 5-year warranty
    • Supplied with pre-wired 3-pin Superseal male/female connectors
    • Designed and manufactured in the United Kingdom
      Lieferumfang
    • x1 Sentinel 9'' Highline With Parking Light - Gen2 (Black)
    • x1 “slim” mounting kit (1141K)
    • x1 Installation Instructions
      Technische Daten
    Sentinel 9" Highline
    Spannungsbereich (DC) 10-32 V
    LED-Lebensdauer 50,000 hours
    Gewicht 2.5 kg
    Fernlicht-Funktion
    Gesamtlichtstrom 17,020 lm
    Gesamtlichtstrom im Fahrer-Sichtfeld 9,752 lm
    Farbtemperatur 5000 k
    Leistungsaufnahme 130 W
    Stromaufnahme (14.4 V) 9.3 A
    Anschluss 3-pin Superseal (+25cm cable)

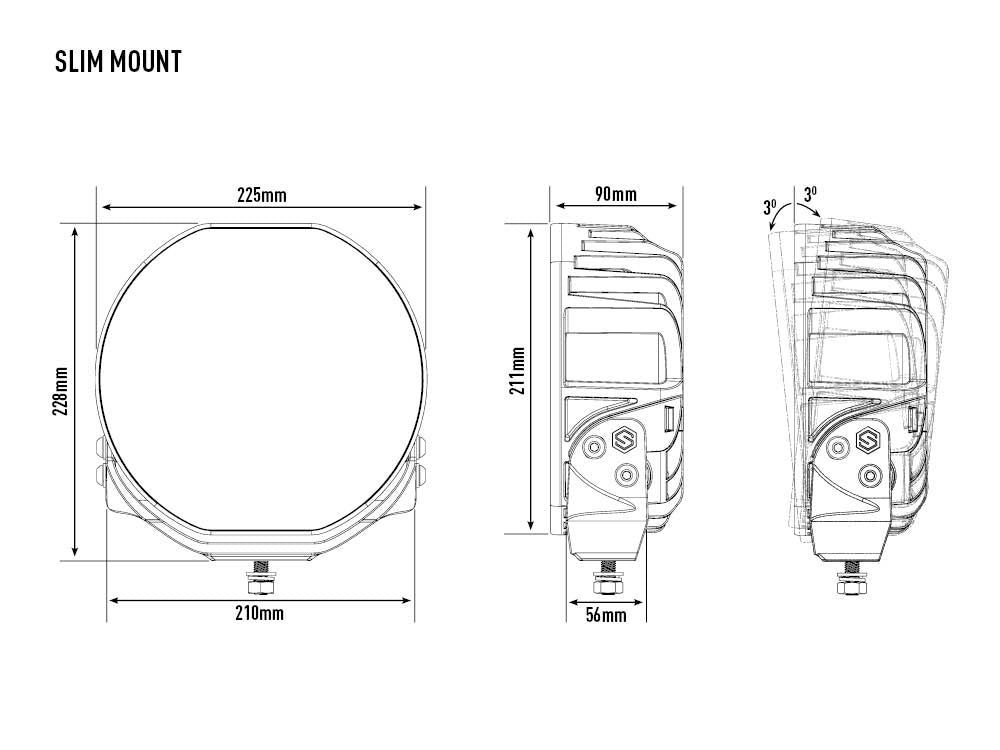

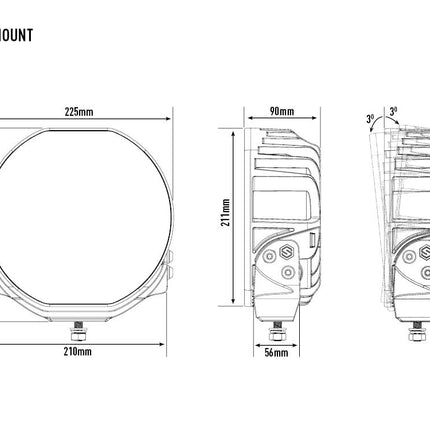

    Abmessungen
    Breite 225 mm
    Tiefe 90 mm
    Höhe 230 mm
    Zertifizierung
    IP-Bewertung # IP68
    Fernlicht ECE R149 - Ref: 12.5 (Low Output Mode only)
    EMC-Zertifizierung ECE R10
    Salzsprühtest ISO 9227
    Dump-Lastschutz ISO 7637-2
    Betriebsbedingungen
    Positionslicht (weiß) ECE R148
    Lichttechnische Daten

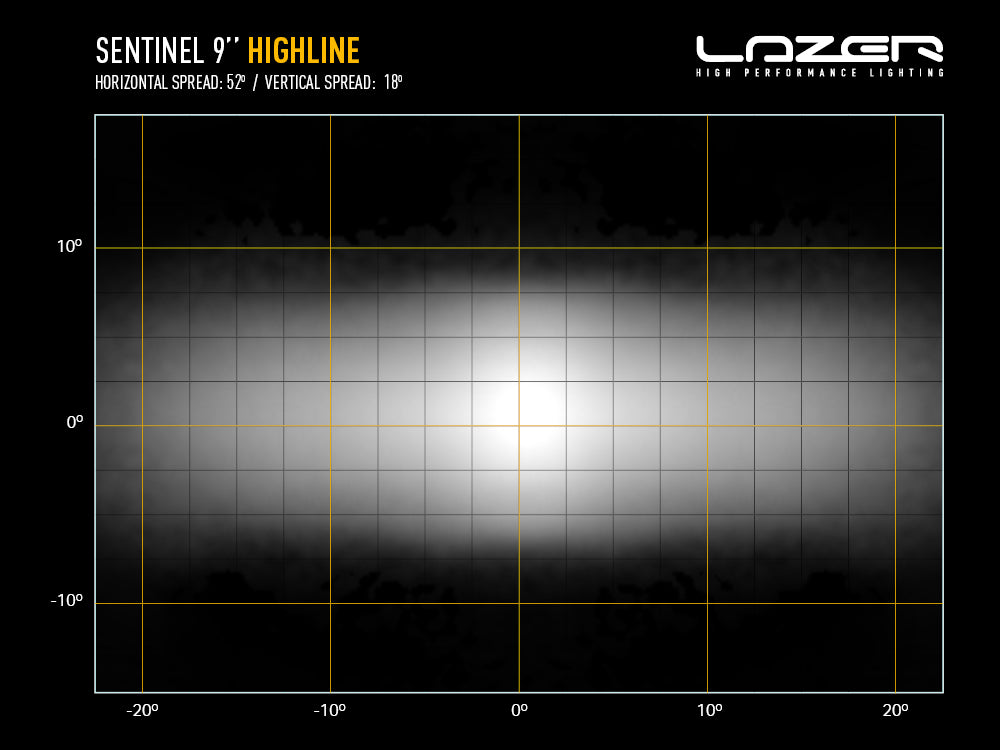

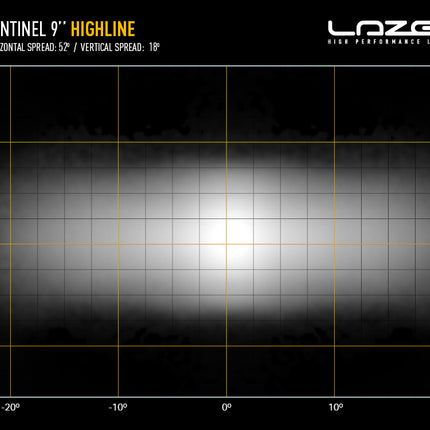

    Horizontaler / vertikaler Abstrahlwinkel 52° / 18°
    0.25-Lux-Linie 1166 m
    0.5-Lux-Linie 825 m
    3-Lux-Linie 337 m
      Downloads

    Ähnliche Produkte

    Description

    The latest addition to the Sentinel range of 9" round headlights, the Highline range, includes headlights designed primarily for heavy-duty applications. A striking, high-end product design with a sleek black interior housing and a combination of 20 high-performance LEDs provide exceptional light output specifically optimized for commercial applications. The headlights' appeal is further enhanced by an updated position/tail light for 2025. There's also the option to activate a dynamic welcome mode. The choice of a matte black or gloss white finish ensures that the Sentinel Highline headlights stand out in every way.

    With a light output of 17,020 lumens, the headlights deliver 1 lux at a distance of up to 583 meters. Particularly noteworthy is the wide horizontal beam distribution of 52 degrees and the improved visibility at the roadside or on the track at medium to long distances. For a demonstration of the light performance, please visit the video section below. Like all Lazer products, this headlight features a pleasant color temperature of 5000K, which is easy on the eyes while maximizing the sharpness and definition of objects ahead. The headlight is road-approved as a high beam according to UNECE Regulation 149 and utilizes Lazer's dual-output E-Boost technology. By quickly switching the light on and off, the brightness can be quickly dimmed to avoid glare from traffic signs, for example (flash-to-dim). In addition, the headlight can be programmed at any time to operate permanently in either high-power or low-power mode. The low power mode complies with UNECE Regulation 149 as an approved high beam for Road Traffic.

    The Sentinel headlight's understated design is achieved through the use of black circuit boards and a black bezel with intricate design details, creating a unique, modern appearance. The aesthetic appeal is further enhanced by the sleek, die-cast aluminum bracket with Sentinel embossing. Like the headlights themselves, this receives an automotive-grade pre-treatment before being finished with a matte black powder coat. The result is a premium finish that is fully protected against aesthetic wear and corrosion. A range of optional accessories is available, including lens covers, a reinforcement brace kit, and anti-theft mountings.

    For customers looking for a dynamic start-up or welcome mode, the new and updated Sentinel 'Gen2' products can be configured to either gradually brighten as the vehicle starts or to alternate between white and amber light (or vice versa).

    Like all Lazer products, Sentinel headlamps were designed, developed, and manufactured in-house in the UK. No compromises are made in the selection of components and production processes to ensure a superior product. At the same time, environmental responsibility and an ambitious carbon footprint reduction program were a greater focus than ever during the design and manufacture of Sentinel products.
