Sentinel 9" Elite with Position Light

Description

The Sentinel series consists of 9" round headlights that combine a striking, high-end product design with superior light output and outstanding build quality—characteristic of the Lazer Lamps brand. The Sentinel Elite 'Gen2' features a sleek black inner housing and 32 high-performance LEDs, ensuring premium light output—exactly what you'd expect from a product bearing the "Elite" label. In addition to the light output, the meticulously crafted product design, with an updated position/tail light function for 2025 and an optional dynamic welcome mode, ensures this headlight stands out in every way.

With a light output of 15,232 lumens, the headlight delivers 1 lux over an impressive distance of 742 meters. Particularly noteworthy is the wide horizontal beam spread of 52 degrees and the improved visibility at the roadside or on the track at medium to long distances – this is where the Sentinel Elite really comes into its own. For a demonstration of the light performance, please visit the video section below. Like all Lazer products, this headlight offers a pleasant color temperature of 5000K, which is easy on the eyes while maximizing the sharpness and detail of objects ahead. The headlight is road-approved as a high beam according to UNECE Regulation 112 and utilizes Lazer's dual-output E-Boost technology. By quickly switching the light on and off, the brightness can be dimmed to reduce glare from traffic signs (flash-to-dim). The headlight can also be programmed to operate continuously in either high-power or low-power mode. The low power mode meets the requirements of UNECE Regulation 112 as an approved high beam for Road Traffic.

The Sentinel headlight's understated design is achieved through the use of black circuit boards and a black bezel with intricate design details, creating a unique, modern appearance. Aesthetic appeal is further enhanced by a sleek, die-cast aluminum bracket with Sentinel embossing. Like the headlights themselves, this bracket receives an automotive-grade pre-treatment before being finished with a matte black powder coat. The result is a premium finish that's fully protected against aesthetic wear and corrosion.

For customers looking for a dynamic start-up or welcome mode, the Sentinel 'Gen2' headlights can be configured to either gradually brighten as the vehicle starts or to alternate between white and amber light (or vice versa).

Like all Lazer products, Sentinel headlamps were designed, developed, and manufactured in-house in the UK. No compromises are made in the selection of components and production processes to ensure a superior product. At the same time, environmental responsibility and an ambitious carbon footprint reduction program were a greater focus than ever during the design and manufacture of Sentinel products.

Sentinel 9" Elite with Position Light

Product form
Free pickup in our shop(s)

€589,00 Incl. VAT

    • Ultra-reflektierende vakuum-metallisierte Spot- und Weitwinkel-Optik
    • Integrierte Weiß-/Amber-Positionslichtfunktion (2 Versionen)
    • ECE-zugelassen (Doppelausgang – Boost-Technologie)
    • IP68 wasserdicht
    • 5 Jahre Garantie
      Produktmerkmale

    Combination of 32 high-quality “bin” LEDs

    Black printed circuit board (PCB) and bezel provide a discreet black interior design

    5000K LED color temperature and 80 CRI maximize sharpness and detail

    Ultra-reflective vacuum-metallized spot and wide-angle optics

    Flash-to-Dim function to avoid glare from traffic signs (e.g.)

    Dual output functionality – high and low power modes

    UNECE Reg 112 Class B driving light, approved as main beam for Road Traffic (only in low power mode) and as Reg 148 position/side light (white only)

    Dynamic startup/greeting mode – two options that can be enabled as needed

    Modern lamp design

    Comes with a slim, die-cast aluminum mount with Sentinel stamping

    Electronic thermal management system optimizes light output to extend LED lifespan

    Anodized pretreatment and automotive-grade powder-coated surface for maximum corrosion and chemical protection

    CAE-optimized heat sink for improved thermal dynamics

    Surge protection

    Protection against reverse polarity

    “Unbreakable” polycarbonate lens with protective coating

    A2 stainless steel screws with black coating in automotive quality

    Comes with black laser lens cover

    UNECE Regulation 10 approved

    IP68 waterproof – 1.5 m immersion depth (30 min.)

    5-year warranty

    Supplied with pre-wired 3-pin Superseal male/female connectors

    Designed and manufactured in the United Kingdom

      Lieferumfang

    x1 Sentinel 9” Elite With Parking Light - Gen2 (Black)

    • x1 Black Lens Cover (LC-BLK-0S9)
    • x1 “slim” mounting kit (1141K)
    • x1 Installation Instructions
      Technische Daten
    Sentinel 9" Elite with Position Light
    Spannungsbereich (DC) 10-32 V
    LED-Lebensdauer 50,000 hours
    Gewicht 2.5 kg
    Fernlicht-Funktion
    Gesamtlichtstrom 15,232 lm
    Gesamtlichtstrom im Fahrer-Sichtfeld 9,048 lm
    Farbtemperatur 5000 k
    Leistungsaufnahme 145 W
    Stromaufnahme (14.4 V) 10.1 A
    Anschluss 3-pin Superseal (+25cm cable)

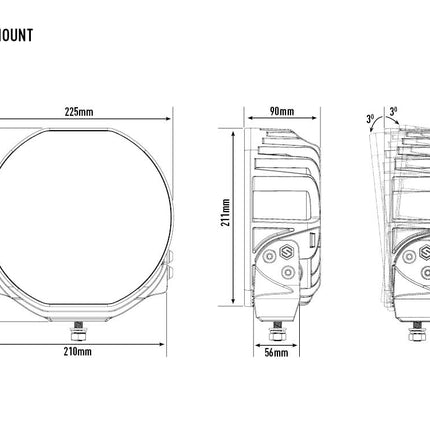

    Abmessungen
    Breite 225 mm
    Tiefe 90 mm
    Höhe 230 mm
    Zertifizierung
    IP-Bewertung # IP68
    Fernlicht ECE R112 - Ref: 20 (Low Output Mode only)
    EMC-Zertifizierung ECE R10
    Salzsprühtest ISO 9227
    Dump-Lastschutz ISO 7637-2
    Betriebsbedingungen
    Positionslicht (weiß) ECE R148

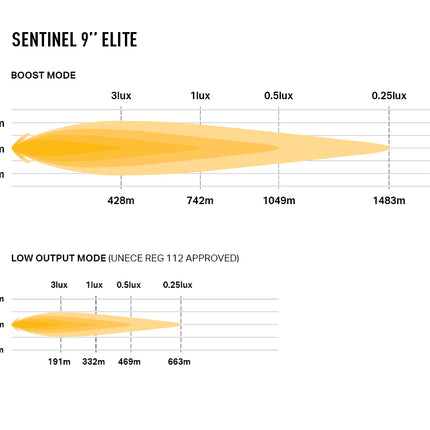

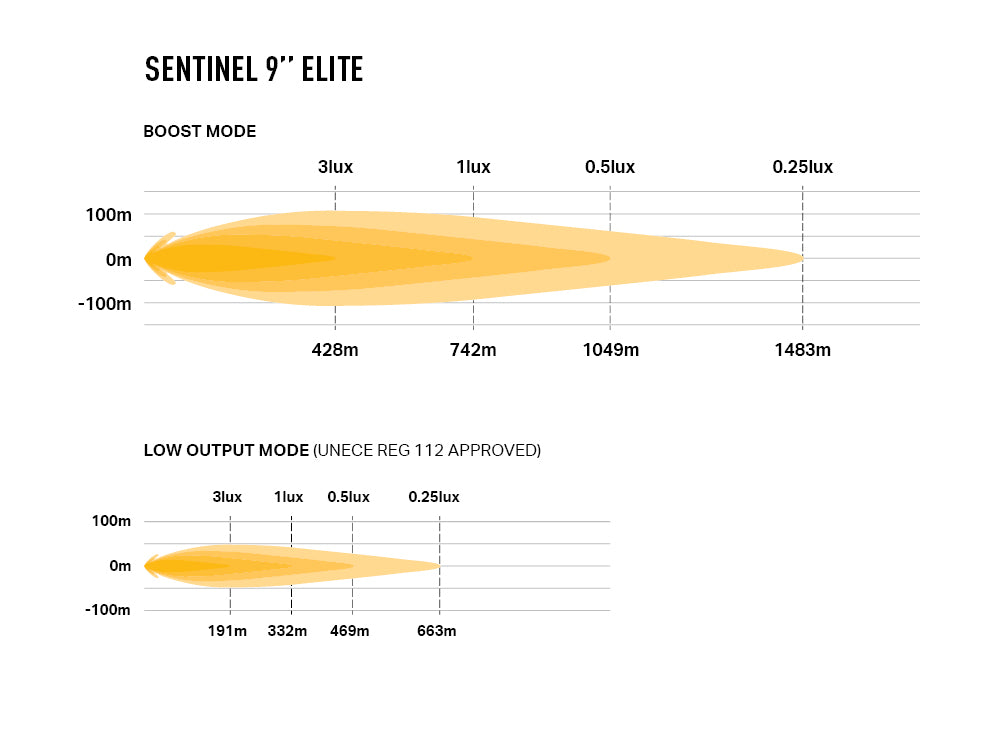

    Lichttechnische Daten
    Horizontaler / vertikaler Abstrahlwinkel 52° / 14°
    0.25-Lux-Linie 1483 m
    0.5-Lux-Linie 1049 m
    3-Lux-Linie 428 m
      Downloads
    PDF Sentinel_Gen2_-_Annotated_Diagram_bc5e6e8a-3687-4574-809e-bf50f3713238.pdf
    PDF Sentinel_9_Elite_Gen2_-_Tech_Specs_56296590-c337-45df-a63c-053cd28f2459.pdf
    PDF Sentinel_9_Elite_-_Gen2_-_Product_Information_Card_d6948516-3e48-4464-99ae-be2486b19131.pdf
    PDF Sentinel_9_Gen2_-_Instructions_cbfedd66-d830-459a-8da4-96a516d81691.pdf
    PDF Sentinel_9_Position_Light_Gen2_Instructions_b52875a0-171c-4e74-811e-7da2fb8aef71.pdf
